Wide-format micro-pavé tray. The 0.8–1.2 mm band on a long 30 × 85 grid holding 2,550 stones, pitched for clean 502 and 502B nozzle pickup. Same stones as the compact DSSMT-01 — different tray footprint. Order this one if your machine takes the wide-format holder; tell us your model and we will confirm before dispatch. Same-day from Mumbai and Rajkot.
Talk to our team about specifications, a demo, or installation.
Security policy
Delivery policy
Return policy

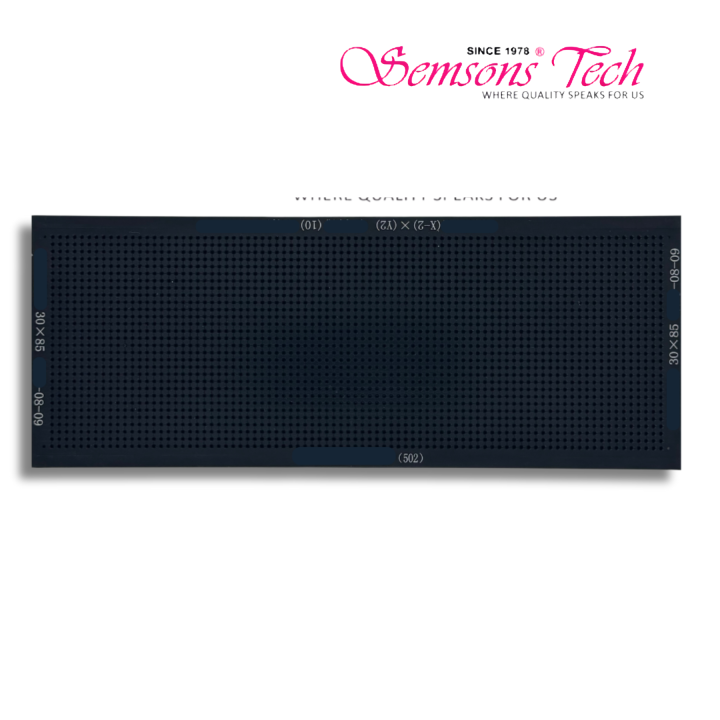

The DSSMT-01L is the wide-format version of the smallest-stone tray in the Semsons range. Same 0.8–1.2 mm micro-pavé band, same calibrated (Z10) pocket geometry, same 502 and 502B nozzle pairing — laid out across a long 30 × 85 grid of 2,550 pockets instead of the compact 40 × 80. What changes is the shape of the tray, not the way it feeds stones.
Sub-millimetre stones punish imprecision. At 0.8 mm, a pocket that is a few microns out sends the nozzle to where the stone is not, and the resulting gap in the wax only shows up after casting — when fixing it costs metal, labour and a rework slot. Wide-format or compact, that tolerance is the same on both, because both are machined to the coordinate map our setters actually run.
| Parameter | Specification |
|---|---|
| Product Code | DSSMT-01L |
| Diamond Size Range | 0.8–0.9 mm / 1.0–1.1–1.2 mm (round stones) |
| Sorting Grid | 30 × 85 matrix (wide-format layout) |
| Total Stone Capacity | 2,550 diamonds per full load |
| Pocket Spacing Geometry | (X-2) × (Y2) × (Z10) calibrated pitch |
| Tray Number | 08-09 (for 0.8–0.9 mm) / 10-11-12 (for 1.0–1.2 mm) |
| Recommended Nozzle | SSMN-01 (502) & SSMN-02 (502B) |
| Compatible Machines | Semsons Tech Mini Pro, Pro Series, Pro Plus and Double Head 8 Nozzle wax setting machines |
| Stone Types Supported | Natural diamond, lab-grown diamond (CVD/HPHT), CZ, synthetic rounds |
| Compact Alternative | DSSMT-01 (40 × 80 grid, 3,200 stones) |
| Dispatch | Same-day from our Mumbai & Rajkot warehouses |
The wide-format ladder covers the same five stone bands as the compact one. Find your stone size below and you have your tray and your nozzle. This tray is highlighted.
| Tray Code | Stone Size Band | Grid | Capacity | Nozzle |
|---|---|---|---|---|
| DSSMT-01L | 0.8 – 1.2 mm | 30 × 85 | 2,550 | 502 / 502B ◀ this product |
| SSMWT-02 | 1.3 – 1.6 mm | 30 × 85 | 2,550 | 503 / 503B |
| SSMWT-03 | 1.7 – 1.9 mm | 30 × 85 | 2,550 | 503B |
| SSMWT-04 | 2.0 – 2.5 mm | 15 × 49 | 735 | 504 |
| SSMWT-05 | 2.5 – 3.0 mm | 15 × 49 | 735 | 504 |
Wide-format and compact trays cover the same stone bands; what differs is the footprint of the tray itself. Which one you need is decided by the tray holder on your machine, not by preference. If you are ordering a wide-format tray for the first time, send us your machine model and we will confirm the fit before dispatch. The compact equivalent of this tray is DSSMT-01 (40 × 80 grid, 3,200 stones).
Long trays flex more than short ones if you handle them by one end, and a flexed tray is a tray with inconsistent pocket depth. Carry it supported, store it flat and unstacked, empty it by inversion rather than sweeping, and blow it out with clean dry air. Keep solvents off the pocket faces — scoring or etching changes pocket depth, and depth is what the nozzle is calibrated against.
Match three things and you cannot go wrong: the stone size band (0.8 – 1.2 mm for this tray), the nozzle already fitted to your machine (502 or 502B), and your machine model. If any of the three does not match, order the tray next to it on the ladder above instead — or send us your machine model and stone size and we will confirm it for you before dispatch.
Yes — this tray is dimensioned for Semsons Tech Mini Pro, Pro Series, Pro Plus and Double Head 8 Nozzle wax setting machines. It is not a generic import tray cut to a nominal size; the pocket pitch is machined to the coordinate map our setters actually use, which is what keeps pickup accurate from the first stone to the last.
Stay inside the published band. Stones under the band sit too deep for the nozzle to seat against, and oversized stones bridge across the pocket mouth and get knocked aside on the next pass. Both show up as skipped positions in the wax, which you only discover after casting.
Most production floors keep one tray per size band they actually run, plus a spare of their highest-volume band. On double-station and double-head machines a second tray removes the reload pause entirely — you pre-fill one while the other is on the bed.
Empty it by inversion over a sorting pad rather than brushing stones across the pockets, blow out dust with clean dry air, and store it flat. Never stack loaded trays, and keep solvents off the pocket faces — anything that etches or scores a pocket changes its depth, and depth is what the nozzle is calibrated against.
Whichever your machine's tray holder accepts. They are not interchangeable and neither is better; they are two footprints for the same job. If you are not certain, send us your machine model before ordering and we will tell you which one fits.
The DSSMT-01L ships same-day from our Mumbai and Rajkot warehouses, across India and to the 34+ countries we export to. Buying a full set of wide-format SSMWT trays to cover your whole size range, or restocking several of one band for a multi-machine floor? Ask for set pricing rather than ordering them one at a time.
Semsons Tech has supplied the Indian jewellery trade since 1978, with 16+ stores and warehouses, 450+ dealers and 40+ distributors behind every consumable we sell.
Not sure which part fits your machine? Send us your machine model and the stone size you are running, and we will confirm the correct item before we dispatch — so you never pay to find out it was the wrong one.
