Base with Stud – 76mm (3 inch) Wax Model Mounting Base for Automatic Stone Setting Machines

Base with Stud — 76mm (3 inch) Wax Model Mounting Base for Automatic Stone Setting Machines

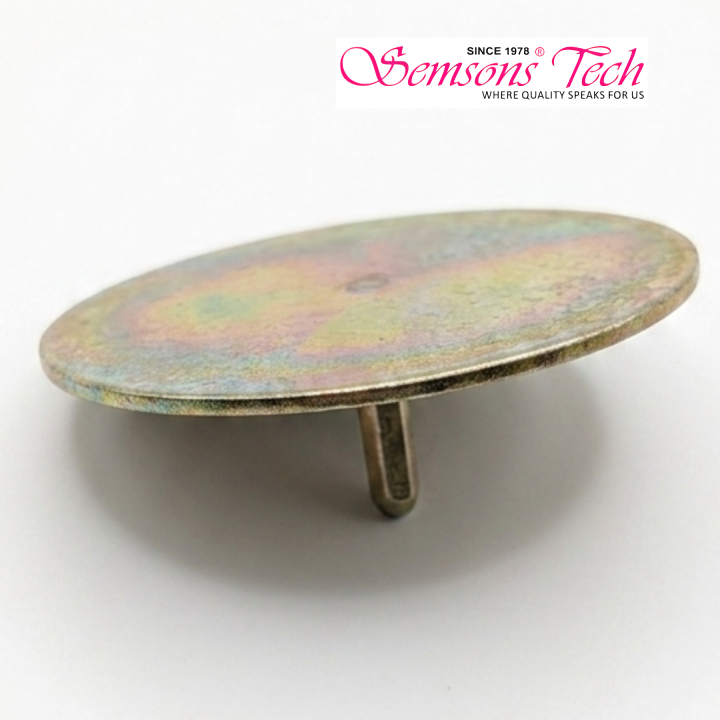

The Semsons Tech Base with Stud SSMBS-01 is a 76mm (3 inch) diameter precision-machined wax model mounting base supplied for the wax-model fixing station on Semsons Tech automatic stone setting machines. The disc platform provides a flat, stable surface for the wax model — with SSMAB-01 wax setting silicon, SSMG-01 fixing glue, or SSMP-01 thermoplastic beads applied on top — through the full duration of a high-speed setting run at 12,000+ stones per hour. The locating stud protruding from the disc is the coordinate reference the machine uses to find the wax in a repeatable position every batch. Without a correctly-positioned locating stud, the machine's coordinate map drifts from run to run and every wax model requires re-alignment; with it, batch-to-batch setup time drops to seconds and the machine can be programmed once for a production run of hundreds of identical models.

Manufacturers in BDB Mumbai, Zaveri Bazaar, Surat, Rajkot CMT and Jaipur running production stone setting lines know that mounting hardware condition is the quietest and most expensive machine downtime. A worn base surface causes wax models to sit tilted, which offsets every stone position by fractions of a millimetre; a bent or worn stud shifts the coordinate origin and the entire setting programme runs out of alignment. SSMBS-01 is the OEM replacement supplied by Semsons Tech directly — machined to the tolerances the setting machines were designed around, not a generic third-party substitute that may fit dimensionally but drift over time.

Specifications

Why the Base + Stud Combination Decides Machine Repeatability

Automated stone setting depends on machine repeatability — the ability to run the same programme against the same wax model geometry and get the same result across hundreds of production units. Repeatability requires two things: an accurate coordinate map inside the machine, and a physical mounting system that puts every wax model in the same starting position. The base delivers the mounting surface; the stud delivers the coordinate reference. Together they eliminate the setup drift that would otherwise force operators to re-teach the coordinate origin every time a new wax model goes onto the platform. This is why we specify SSMBS-01 as the standard mounting hardware across chain-retail supply chains including Tanishq, Malabar, Kalyan, CaratLane, Senco and PC Jeweller vendor programmes, as well as for lab-grown diamond manufacturers running CVD/HPHT production lines.

Common Failure Modes This Part Replaces

• Worn disc surface — the flat mounting surface has developed high spots or wear that cause wax models to sit tilted
• Bent or worn stud — locating pin has shifted position and coordinate alignment drifts run-to-run
• Corrosion or contamination damage — chemical exposure or silicon build-up has degraded the mounting surface
• Machine reconfiguration — adding a second base to a Pro Plus or Double Head 8 Nozzle machine for parallel-station operation
• Spare stock — keeping a backup mounting base on hand for immediate swap during shift-critical failures

Ordering & Support

SSMBS-01 ships same-day from our Mumbai and Rajkot warehouses across India and to 34+ export countries. Universal fitment across all four Semsons Tech setting machines — no machine-model confirmation required at order. For workshops running multiple machine models, we can quote sets covering all your machines in a single order. Combine with SSMAB-01A/B wax setting silicon, SSMG-01 cyanoacrylate glue, or SSMP-01 thermoplastic beads for the complete wax-fixing consumables kit.

Sales: WhatsApp +91 98216 12340 | Wholesale & bulk orders: WhatsApp +91 80823 38010

Semsons Tech — Where Quality Speaks For Us. Since 1978.
