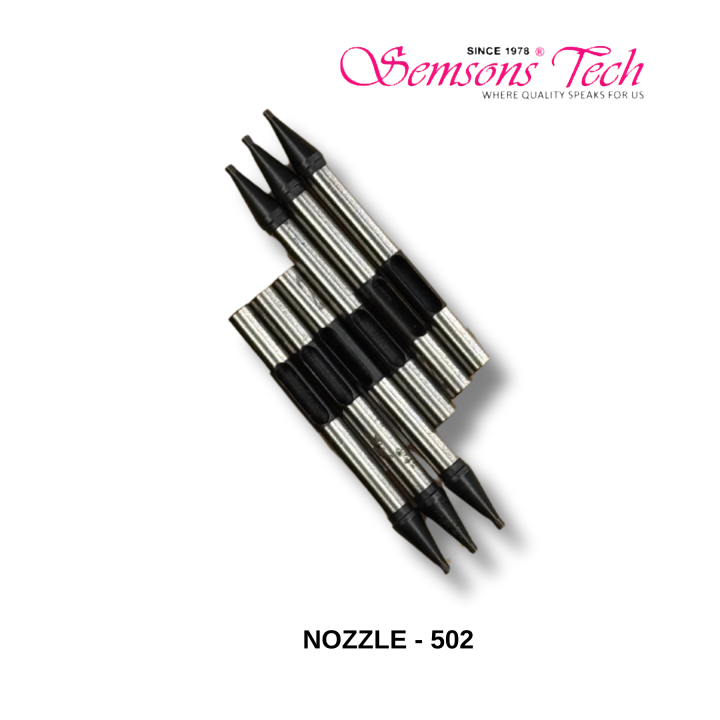

Suction Nozzles 502 to 504 - for Semsons Automatic Stone Setting Machines
The tip that lifts each stone from the tray and sets it in the wax. Choose the nozzle by the size of the round stones you are setting, from 0.8 mm to 3.0 mm.
✔ 502 - 0.8 to 0.9 mm stones
✔ 502B - 1.0 to 1.2 mm stones
✔ 503 - 1.3 to 1.4 mm stones
✔ 503B - 1.5 to 1.9 mm stones
✔ 504 - 2.0 to 3.0 mm stones
✔ Fits - Mini Pro, Pro Series, Pro Plus and Double Head 8 Nozzle machines
Sold per nozzle, one price for every size. Same-day dispatch, free delivery anywhere in India.
WhatsApp +91 98216 12340 · Semsons Tech, since 1978.
Security policy
Delivery policy
Return policy
Five nozzle sizes for round stones from 0.8 mm to 3.0 mm.
The nozzle picks a stone out of the sorting tray by suction, carries it to the wax model and releases it at the setting point. Each nozzle is sized for one band of stone diameters. Match the nozzle to your stone size, and to the tray you run it with.
| Nozzle | Stone size it picks | Pairs with tray |
|---|---|---|
| 502 | 0.8 – 0.9 mm | DSSMT-01 / DSSMT-01L (tray nos. 08-09) |
| 502B | 1.0 – 1.2 mm | DSSMT-01 / DSSMT-01L (tray nos. 10-11-12) |
| 503 | 1.3 – 1.4 mm | DSSMT-02 / SSMWT-02 (tray nos. 13-14) |
| 503B | 1.5 – 1.9 mm | DSSMT-02 & DSSMT-03 / SSMWT-02 & SSMWT-03 |
| 504 | 2.0 – 3.0 mm | DSSMT-04 & DSSMT-05 / SSMWT-04 & SSMWT-05 |
| Parameter | Specification |
|---|---|
| Nozzle sizes | 502, 502B, 503, 503B, 504 |
| Product codes | SSMN-01 (502), SSMN-02 (502B), SSMN-03 (503), SSMN-04 (503B), SSMN-05 (504) |
| Stone range | 0.8 mm to 3.0 mm round stones |
| Construction | Precision-machined steel tip with rubber sealing sleeve on a stainless shaft |
| Pickup method | Vacuum suction through the tip aperture |
| 504 nozzle | Calibrated for higher pickup force on heavier stones |
| Compatible machines | Semsons Tech Mini Pro, Pro Series, Pro Plus and Double Head 8 Nozzle wax setting machines |
| Sold as | One nozzle per unit |
| Wear | Consumable part - replace when pickup becomes inconsistent |
| Dispatch | Same day, free delivery anywhere in India |
A nozzle rarely breaks outright. It wears: the tip opening dulls, the rubber sleeve hardens, and pickup gets less reliable week by week. Watch for:
The 502 shows wear first. At 0.8 mm there is no margin for a worn tip.
Measure the round stones you are setting and find that size in the table above. The same row gives the tray the nozzle works with.
Only within its own band. The tip is sized to seal against a particular stone diameter. On a stone that is too small it cannot lift; on one that is too large it loses vacuum around the girdle and drops the stone on the way.
One for each head that runs that stone size. Count the heads on your machine before you order.
That depends on your running hours, your stones and your air supply, so we do not quote a figure. Change it when the signs above appear. Workshops running full shifts keep spares on the shelf.
When you are replacing for wear, yes. A new nozzle next to worn ones makes pickup uneven from head to head. If one failed early, replacing that one is enough.
Yes. All five nozzles are the same price, and the price shown includes 18% GST.
Orders are dispatched the same day, and delivery is free anywhere in India.
Yes. For a full set across all five sizes, or spares for several machines, WhatsApp our wholesale desk on +91 80823 38010.
Not sure which nozzle your machine takes? Send us your machine model and the stone size you run, and we will confirm the right nozzle before dispatch.
