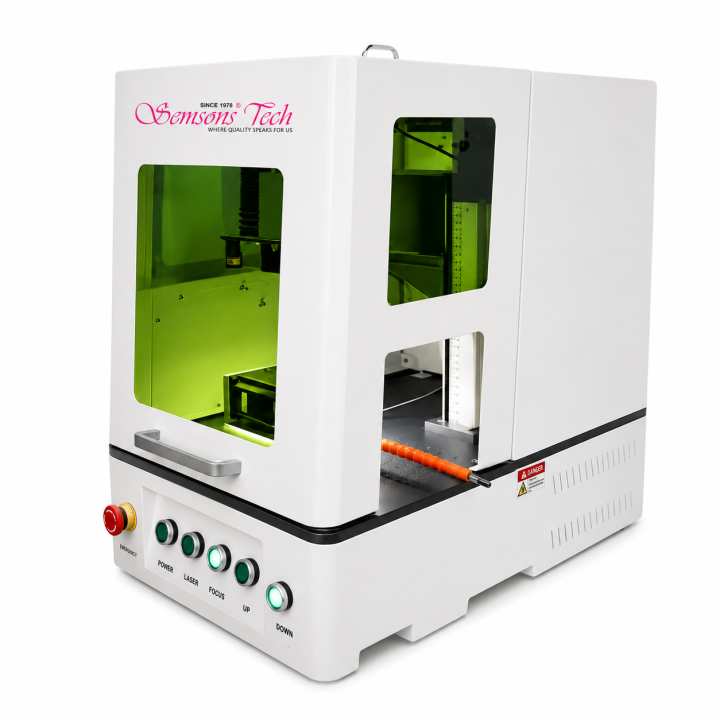

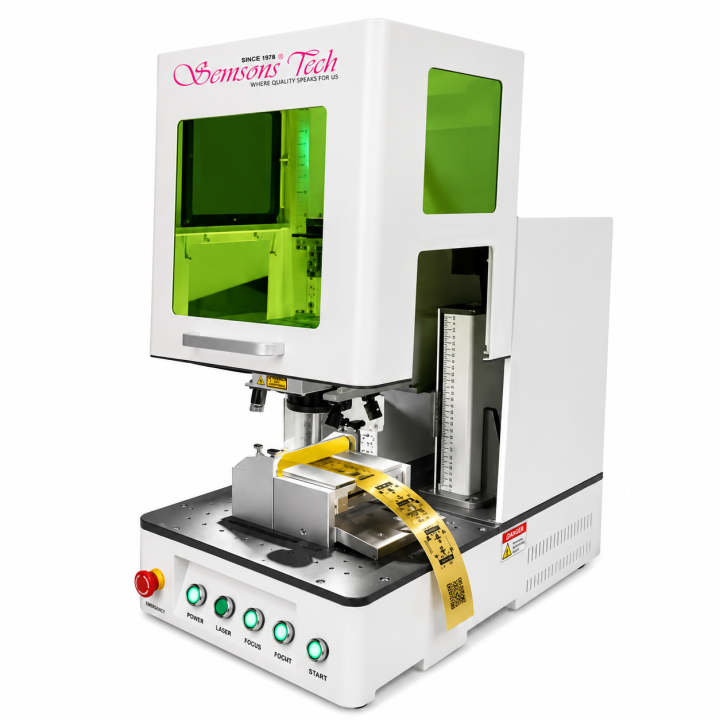

Laser Cutting Machine Smart Cut

The Specialised Fiber Laser Cutting Machine — Precision Cutting Equipment for Gold, Silver, Platinum Sheet Metal Jewellery Manufacturing with Critical Gold Powder Recovery

Jewellery manufacturing from sheet metal faces fundamental limitations with traditional cutting methods. (1) Hand sawing: extremely slow (15-60 minutes per piece for intricate designs); operator skill dependent; significant material waste at cut edges; difficult on thin sheets (prone to deformation); cannot produce complex curves or fine internal cutouts. (2) Die stamping: requires expensive custom dies (₹50,000-2,00,000 per design); cost-effective only at very high production volumes (1000+ pieces of same design); causes piece deformation at edges; cannot deliver fine internal cutouts. (3) CNC milling: slow for thin sheet cutting; significant tool wear cost; requires post-machining polishing; cannot achieve sharp internal corners. (4) Wire EDM: extremely slow; specialised equipment; requires consumable wire; very high running cost. (5) Ordinary CO2 lasers: 10.6 µm wavelength poorly absorbed by metals — cannot cut precious metals at all. (6) Ordinary fiber lasers without high-reflective isolation: gold and silver are highly reflective at 1064nm — reflected laser energy damages standard laser sources; cannot cut pure gold/silver reliably. The Smart Cut Fiber Laser Cutting Machine addresses all these limitations: (1) Specialised high-reflective optical design with high-reflective laser isolator protecting laser source from reflected energy — enables reliable cutting of pure gold (9K-24K), pure silver, platinum, and other highly reflective precious metals. (2) Critical gold powder recovery system: sealed cutting chamber + dedicated dust extraction blower + sheet metal table forms closed cutting area; precious metal powder generated during cutting falls into collection tray; recovery system minimises material loss — essential for gold economics (₹6,000-7,000 per gram). (3) High precision cutting: 0.05-0.1mm cut width; clean smooth edges requiring no secondary polishing; supports fine intricate jewellery designs. (4) Ball screw transmission: high-precision X-Y positioning system with imported AC servo drive; sub-millimeter accuracy across full cutting area. (5) Layout optimisation software: maximises material utilisation across multiple pieces per gold sheet; reduces material waste; supports cutting starting point optimisation for cleanest edge finish. (6) Multi-layer cutting: supports stacking thin gold sheets for higher throughput. (7) Air cooling, no chiller required: simpler installation than water-cooled industrial alternatives. (8) Fiber laser source life: 100,000+ hours; high photoelectric conversion efficiency (25-30%) versus CO2 lasers (10%) — significantly lower operating cost.

For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry. The Smart Cut Fiber Laser Cutting Machine is the production-default for Surat jewellery manufacturing operations producing custom designs from gold/silver sheets (pendants, name necklaces, intricate filigree work), Rajkot CMT and Coimbatore jewellery manufacturing producing chain-retail brand designs at scale, Mumbai BDB jewellery manufacturers producing customer-specific designs, designer ateliers producing limited-edition collections with complex 2D patterns, name necklace and personalised pendant manufacturing operations (high-growth Indian market segment), filigree jewellery manufacturers producing traditional intricate designs, chain-retail brand (Tanishq/Joyalukkas/Malabar/Kalyan style) brand design production, religious jewellery manufacturers producing complex designs (om symbols, religious figures, calligraphy), watch component manufacturing (watch dials, decorative elements), and jewellery training institutes (IIGJ, NIJDP) curriculum equipment for precision manufacturing training.

Core Engineering Advantages

• Specialised High-Reflective Optical Design — Cuts Pure Gold and Silver: The decisive technology differentiator. The reflective material problem: gold and silver are highly reflective at 1064nm laser wavelength — typical reflectivity 95%+; reflected laser energy returns to laser source causing damage and inconsistent cutting. Why ordinary fiber lasers fail: standard fiber laser marking machines (and many entry cutting machines) cannot reliably cut pure gold or silver — reflected energy damages laser source rapidly; cuts become inconsistent. Smart Cut solution: (1) High-reflective laser isolator: optical component blocks reflected laser energy from returning to source. (2) Specialised cutting head: optimised for high-reflective materials. (3) Imported laser source: premium fiber laser components rated for high-reflective material cutting. (4) Excellent beam quality: tight beam focus delivers high energy density at cut point, overcoming reflectivity. Production result: reliable cutting of 9K-24K gold, 925 silver, sterling silver, platinum, and other precious metals without laser damage.

• Critical Gold Powder Recovery System — Material Loss Minimisation: Decisive economic advantage. Why recovery matters: gold cutting generates fine gold powder/particles at cut edges; without recovery, this powder is lost permanently; at ₹6,000-7,000 per gram, losses accumulate rapidly. Powder loss calculation: typical gold cutting operation processes 100-500g daily gold sheet; without recovery typically loses 0.5-2% as powder = ₹3,000-70,000 daily loss = ₹10-250 lakh annual loss. Smart Cut recovery architecture: (1) Sealed cutting chamber: fully enclosed sheet metal cabinet forms closed cutting area; prevents gold powder dispersion. (2) Cutting bed design: precious metal powder falls into collection tray below cutting area. (3) Dust extraction blower: external blower creates negative pressure pulling powder into collection. (4) Recoverable powder collection: collected gold powder periodically removed for refining/recycling. (5) Recovery rate: typical 95-98% gold powder recovery versus near-zero without specialised system. Production economics: powder recovery system pays for premium equipment within months on gold-cutting operations.

• High Precision Cutting — 0.05-0.1mm Cut Width: Production-grade precision. Cut characteristics: (1) Cut width (kerf): 0.05-0.1mm — extremely fine cut; supports intricate designs with sub-millimeter detail. (2) Edge quality: clean smooth edges; no secondary polishing required versus rough sawn edges requiring 5-15 minutes per piece polishing time. (3) Internal cutouts: small internal holes (1mm+) easily cut without entry hole drilling versus mechanical methods. (4) Sharp corners: laser delivers sharp internal corners versus rounded corners from mechanical cutting. (5) Complex curves: any 2D curve cut accurately without tool path limitations. Production applications: name necklace cursive script cutting (fine letters with internal cutouts), filigree designs (extremely intricate patterns), religious jewellery (Om, Cross, Allah designs with fine detail), monogram pendants (intricate initial designs).

• Ball Screw Transmission + Imported AC Servo Drive — Industrial Positioning Accuracy: Production-grade motion control. Ball screw transmission: precision ball screw mechanism on X and Y axes; sub-millimeter positioning accuracy across full cutting area; eliminates backlash that affects belt-driven alternatives. Imported AC servo drive (Japan-spec): high-precision servo motors with feedback encoders; consistent acceleration/deceleration for clean cuts at curves; supports fast cutting (200-500mm/sec typical) without quality loss. Straightness in high-speed cutting: Y-axis ball screw delivers straight cuts even at maximum speeds; critical for chain links and straight pendant edges. Compare to belt-drive alternatives: budget machines use belt drives; positioning errors accumulate; cut quality degrades at high speeds.

• Layout Optimisation Software — Material Utilisation Maximisation: Decisive material economics. Software capability: (1) Nesting: automatically arranges multiple pieces on single sheet maximising material utilisation. (2) Cutting starting point optimisation: starts cuts at locations that minimise heat damage and maximise edge quality. (3) Path optimisation: shortest cutting path reduces total time. (4) Multi-piece sorting: organises cutting sequence for efficient workflow. Production economics impact: 5-15% material utilisation improvement on gold sheet (₹3,000-10,000 per kg) creates significant ongoing savings; combined with powder recovery, total material loss reduced to <2%.

• Multi-Layer Cutting Capability: Throughput enhancement. Multi-layer stacking: thin gold sheets (typically 0.3-0.8mm) can be stacked 2-5 layers for simultaneous cutting; single cut produces multiple identical pieces. Production economics: 3-layer cutting reduces per-piece cutting time by 67%; enables higher daily throughput on identical-design production runs (chain-retail brand designs, religious jewellery designs, standard pendant designs). Limitation: only suitable for identical-design production; custom one-off designs cut single-layer.

• Power Variant Range — 100W to 500W+ Configuration: Application-matched cutting capability. 100W (entry cutting production): thin precious metal sheets up to 0.5mm; pendant cutting, name necklace cutting, light filigree work; ₹3.5-5 lakh pricing. 200W (standard production): medium-thickness sheets up to 1.0mm; broader jewellery manufacturing applications; faster cutting speeds; ₹5-8 lakh pricing. 300W (premium production): heavier sheets up to 1.5mm; deeper cutting capability; high-volume production; ₹7-10 lakh pricing. 500W+ (industrial production): thick sheets up to 3mm; industrial production line integration; bullion bar/biscuit cutting; complex 3D-cut designs; ₹10-15 lakh+ pricing.

• Imported Cutting Head + Optical Components: Production-grade quality. Imported components: cutting head, focusing lens, beam delivery optics sourced from international premium manufacturers (versus domestic budget alternatives); ensures consistent cut quality across long operational life. Auto-focus capability: optional auto-focus accessory adjusts focus point per sheet thickness automatically. Quick lens replacement: lens consumable component; quick-change design minimises downtime. Beam quality (M²): less than 1.5; supports tight beam focus for fine cut width.

• Air Cooling — No Water Chiller Required: Operational simplicity. Air cooling system: integrated air cooling adequate for fiber laser operating temperature management. Compare to water-cooled industrial alternatives: water-cooled lasers (typical 1kW+ industrial cutters) require external water chiller (additional ₹50,000-2,00,000), water quality maintenance, leak risk, additional floor space. Smart Cut advantage: air-cooled simplicity supports installation in jewellery workshops without specialised infrastructure.

• Long Operational Life + High Photoelectric Conversion Efficiency: Production economics. Fiber laser source life: 100,000+ hours operational life. Photoelectric conversion efficiency: 25-30% (versus CO2 lasers 10%); means less electrical energy required per cut; significantly lower running cost. Power consumption: 100W variant ~600-1000W operating power; 200W ~1000-1500W; 300W+ ~1500-2500W. Maintenance requirements: monthly lens cleaning, quarterly focus head inspection, annual beam quality verification, periodic chamber cleaning for gold powder recovery.

Technical Specifications

Laser Cutting vs Laser Marking — Different Products for Different Applications

• Smart Cut Laser Cutting (₹3.5-15+ lakh) — this product: HIGH POWER (100W-500W+) for cutting THROUGH precious metal sheets; produces custom 2D shapes (pendants, name necklaces, intricate designs); critical gold powder recovery system; sealed cutting chamber; specialised high-reflective optical design; for jewellery manufacturing operations producing custom designs from sheet metal.
• Smart-2 Laser Marking (₹1.5-5 lakh): LOWER POWER (20W-60W+) for SURFACE marking only — does NOT cut through metal; produces hallmarks, logos, serial numbers, custom inscriptions; for jewellery showrooms, hallmarking centres, customisation services.
• Smart Mark Laser Marking (₹1.5-3.5 lakh): entry-tier surface marking; small showroom customisation services.
• Critical distinction: laser MARKING and laser CUTTING are different machines for different applications — operations needing both capabilities require both machines.

Power Variant Selection — Which Smart Cut Configuration Is Right for Your Operation?

• 100W (₹3.5-5 lakh) — entry cutting: thin gold/silver sheets up to 0.5mm; pendant cutting, name necklace cutting, light filigree; small-to-medium manufacturing operations.
• 200W (₹5-8 lakh) — standard production: medium-thickness sheets up to 1.0mm; broader manufacturing applications; faster cutting; production-default for most jewellery manufacturers.
• 300W (₹7-10 lakh) — premium production: heavier sheets up to 1.5mm; deeper cutting capability; high-volume production; chain-retail brand manufacturing.
• 500W+ (₹10-15+ lakh) — industrial production: thick sheets up to 3mm; industrial production line integration; bullion bar/biscuit cutting; complex deep-cut designs; large-scale operations.

Real-World Use Cases

• Surat name necklace and personalised pendant manufacturing — high-growth Indian market segment; manufacturer cuts customer name in cursive script from gold sheet; 100W or 200W Smart Cut variant; production economics: ₹500-3000 per personalised pendant retail; equipment payback within months on dedicated production
• Rajkot CMT chain-retail brand design production — CMT operation producing chain-retail brand designs (Tanishq/Joyalukkas style pendant collections); 200W or 300W variant for production volume; multi-layer cutting (3-5 layers) accelerates throughput
• Mumbai BDB jewellery manufacturer custom client designs — BDB-area jewellery manufacturer producing custom client designs at premium pricing; precision cutting + clean edges support premium quality positioning
• Coimbatore filigree jewellery manufacturer — traditional Tamil Nadu filigree work requires extremely intricate patterns; 100W Smart Cut delivers fine 0.05-0.1mm cut width supporting traditional filigree designs without skill-intensive hand sawing
• Jaipur designer atelier limited-edition collection production — designer atelier producing limited-edition collections with complex 2D patterns; Smart Cut enables designer creativity without production limitations of mechanical methods
• Religious jewellery manufacturer (Om/Cross/Allah/Saraswati designs) — religious jewellery requires fine calligraphic detail and complex symbols; laser cutting delivers detail impossible with mechanical methods
• Monogram and initial pendant manufacturing — initial-letter pendants (high-margin customisation segment); cursive script designs cut from thin gold; rapid turnaround supports customer customisation revenue
• Watch component manufacturing — watch dials, decorative elements, watch face designs; precision cutting + edge quality match watchmaking quality requirements
• Designer chain link production — custom chain link designs cut from sheet then assembled; supports unique chain designs versus standard machine-made chains
• Industrial bullion bar/biscuit cutting — 500W+ industrial variant cuts bullion bars to customer-specific weights/dimensions; for refining operations and bullion trading

Pricing, Installation & Support

Indian market pricing ₹3,50,000-15,00,000+ depending on laser power variant (100W entry through 500W+ industrial) and cutting area (300×300mm standard through 600×800mm industrial). EMI financing 12-60 months through partner financial institutions extended for premium tier accessibility. Complete starter bundle pricing combining Smart Cut + computer with CNC software pre-installed + auto-focus accessory + protective goggles + initial gold powder collection trays + comprehensive on-site installation + extended 3-5 day operator training + first-year AMC. Comprehensive on-site installation by Semsons authorized technician — includes equipment setup, CNC software configuration, gold powder recovery system commissioning + verification, safety verification, initial test cutting with customer materials, laser parameter optimisation per customer's typical materials. Extended 3-5 day operator training covering CNC laser cutting software (CAD design import, cutting parameter setup per material/thickness, layout optimisation, multi-piece nesting), gold powder recovery workflow, multi-layer cutting techniques, safety protocols, basic maintenance, troubleshooting common issues. 1-2 year manufacturer warranty extendable; free technical support and spare parts. Comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses (replacement focusing lenses, cutting head components, galvo mirrors, focus lens, control board components). Annual maintenance contracts available covering preventive maintenance (lens cleaning, focus head inspection, gold powder recovery system maintenance + powder collection tray replacement, beam quality verification), priority spare parts supply (5-10% of equipment value annually) — strongly recommended for production operations where measurement of cutting precision directly determines product quality. Optional accessory pricing: auto-focus accessory (₹40,000-80,000); additional cutting head lens sets (₹15,000-30,000); extra gold powder collection trays (₹5,000-15,000). Software updates for CNC cutting software throughout operational life. Multi-machine bundle pricing for jewellery manufacturing operations deploying multiple Smart Cut + Smart-2 + complete laser equipment portfolio. Trade-in program for operations upgrading from manual hand-saw cutting, mechanical die-stamping, or CO2 laser cutters (which cannot cut precious metals). Gold refining service partnership: Semsons can facilitate gold powder refining service through partner refiners — recovered powder shipped for refining and credited. Dealer-network on-site service across 16+ Indian cities. Wholesale enquiries on +91 80823 38010.

Why Buy Smart Cut from Semsons Tech

Semsons Tech is a JMA Industry Award-winning supplier with 48 years in jewellery equipment, 16+ warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Unlike Amazon and IndiaMART listings shipping no-name budget fiber laser cutting machines lacking specialised high-reflective material optical design (laser source damage within 12-24 months when cutting gold/silver due to reflected energy), missing gold powder recovery systems (operations lose ₹10-250 lakh annually in unrecovered gold powder), inadequate ball screw transmission systems (positioning errors create inconsistent cut quality across long production runs), poor beam quality creating rough edges requiring secondary polishing (defeating purpose of laser cutting), missing layout optimisation software (5-15% material waste increase), inadequate sealed cutting chamber (gold powder dispersion + laser safety risks), missing imported AC servo drives (motion quality degrades over operational life), missing CE/FDA safety compliance documentation, and unreliable supply continuity for specialised cutting head and laser source replacement, Semsons supplies the Smart Cut Fiber Laser Cutting Machine with genuine specialised high-reflective optical design with high-reflective laser isolator enabling reliable cutting of pure gold/silver/platinum, imported fiber laser source with 100,000+ hour operational life, critical gold powder recovery system (sealed chamber + dust extraction blower + collection trays) delivering 95-98% gold powder recovery rate, high precision cutting with 0.05-0.1mm cut width supporting intricate designs, clean smooth edges requiring no secondary polishing, ball screw transmission with imported AC servo drive (Japan-spec) for sub-millimeter ±0.02mm positioning accuracy, premium beam quality M² <1.5, multiple laser power variants (100W/200W/300W/500W+) matched to production application, standard 300×300mm or extended 600×600mm or industrial 600×800mm+ cutting area, fast cutting speeds 200-500mm/sec, compatible with 9K-22K-24K gold + sterling/925 silver + platinum + brass + copper + stainless steel + titanium, CNC laser cutting software with layout optimisation + cutting starting point optimisation + path optimisation + multi-piece sorting + multi-layer cutting support, design import from AutoCAD DXF + CDR + AI + PLT + DWG + BMP + JPEG + PNG, optional auto-focus capability, photoelectric conversion efficiency 25-30% (versus CO2 lasers 10%) for low electrical operating cost, air cooling (no water chiller for typical variants), Class 4 laser safety enclosure with sealed cutting chamber + safety interlocks + emergency stop + protective goggles meeting CE/FDA safety compliance, comprehensive on-site installation by Semsons authorized technician with gold powder recovery system commissioning, extended 3-5 day operator training covering CNC software + cutting parameters + layout optimisation + gold powder recovery workflow + safety + maintenance, 1-2 year warranty extendable, comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses, annual maintenance contracts with preventive maintenance + gold powder recovery system maintenance + priority spare parts, gold refining service partnership for recovered powder, software updates throughout operational life, EMI financing 12-60 months making accessible to growing operations, multi-machine bundle pricing for jewellery manufacturing operations, trade-in program for operations upgrading from hand-saw/die-stamping/CO2 cutters, dealer-network on-site service across 16+ Indian cities, and 48-year supplier reputation in Indian jewellery industry. For jewellery manufacturing operations cutting precious metal sheets where laser source damage from reflected energy creates catastrophic equipment failure, where unrecovered gold powder represents significant annual material loss (₹10-250 lakh per year), where cutting precision directly determines product quality and customer satisfaction, and where production downtime translates to massive revenue loss, supplier accountability and specialised equipment quality matter far more than upfront capex savings from no-name budget alternatives. Where Quality Speaks For Us — Since 1978.

Order Your Smart Cut Fiber Laser Cutting Machine Today

For pricing across configuration variants (100W entry / 200W standard / 300W premium / 500W+ industrial; 300×300mm / 600×600mm / 600×800mm cutting area), complete starter bundle (Smart Cut + computer + CNC software + auto-focus + gold powder collection trays + comprehensive installation + 3-5 day extended training + first-year AMC), EMI financing 12-60 months, annual maintenance contracts with gold powder recovery system maintenance, multi-machine bundle pricing for jewellery manufacturing operations deploying complete laser equipment portfolio (Smart Cut + Smart-2 + Smart Mark + Laser Welding Machine), optional accessory pricing (auto-focus, additional lens sets, extra powder collection trays), trade-in program for operations upgrading from hand-saw cutting, mechanical die-stamping, or CO2 laser cutters, gold refining service partnership for recovered powder, software update subscription, international export, jewellery manufacturing setup consultation, or technical consultation matched to your daily cutting volume and material requirements, WhatsApp our sales desk on +91 98216 12340 or wholesale on +91 80823 38010. Pair with the complete Semsons jewellery production workflow ecosystem across laser equipment (Smart Cut fiber laser cutting + Smart-2 industrial laser marking + Smart Mark entry-tier laser marking + Laser Welding Machine — companion product for cut piece welding into final designs), gold testing (Signet FSDD + Portable XRF Gold Analyzer + Signet Si-PIN + Gold Coin Testing Machine), CAD/CAM equipment (5-Axis Mini CNC Machine for complex 3D work; 3D Printers for wax pattern production), casting workflow (Wax Beads + Vacuum Wax Injectors + Vulcanizer + Investment Powder Mixer + Burnout Furnace + Vacuum Pressure Casting), finishing workflow (Polishing Machines + Rhodium Plating + Tumbler Polishing + Magnetic Polishing + Ultrasonic Cleaner), diamond and gemstone tools (Carat Scale, Microscope, Diamond Tweezer), currency counting (Smart Plus CIS + Smart X Pro + complete counter range), and complete jewellery manufacturing workflow equipment. Same-day dispatch from Mumbai and Rajkot warehouses across 16+ Indian cities.
