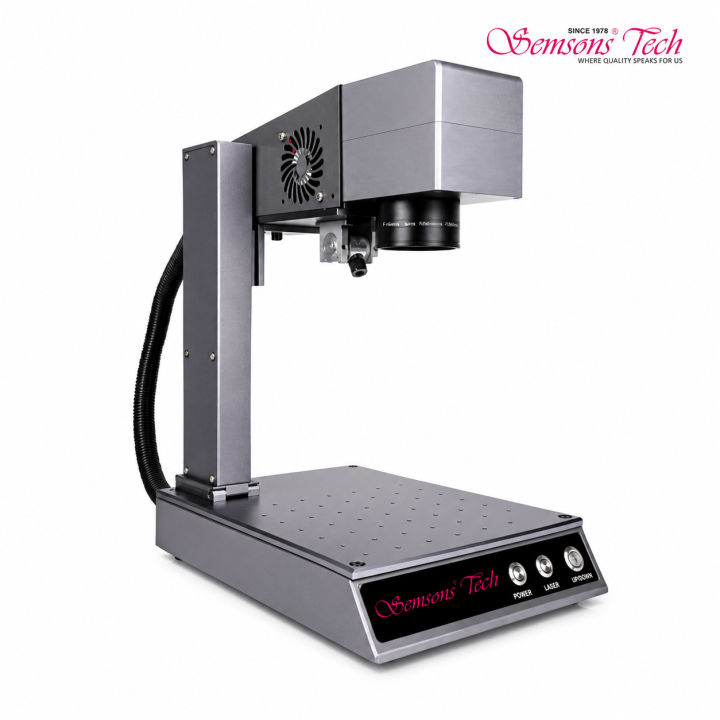

Smart Mark Fiber Laser Marking Machine by Semsons Tech is an entry-level laser engraving system designed for jewellery hallmarking, logo marking, serial numbers, and personalised engraving. Using 1064nm fiber laser technology, it produces sharp, permanent markings on gold, silver, platinum, stainless steel, brass, copper, and other metals without damaging the surface. Its compact design makes it ideal for jewellery workshops, retail showrooms, and customisation counters. Features include high-speed non-contact marking, EZCAD software compatibility, user-friendly operation, low maintenance requirements, and reliable performance for daily production and engraving applications.
Share your requirement and our team will send you pricing, availability and a quotation.
Security policy
Delivery policy
Return policy
BIS hallmarking compliance (mandatory since 2021) and customer customisation services represent both regulatory necessity and significant revenue opportunity for Indian jewellery operations — but premium laser marking machines (₹3-5 lakh for industrial variants) face capex barriers for small-to-medium showrooms and workshops. The Smart Mark Fiber Laser Marking Machine addresses this market gap: production-grade Semsons fiber laser marking capability at accessible entry-tier pricing (₹1,50,000-3,50,000) — significantly lower than Smart-2 industrial variants (₹2-5 lakh) and premium alternatives. Core production capabilities: (1) State-of-the-art fiber laser engraving: 1064nm wavelength industry-standard for precious metal marking — clean, high-contrast, permanent marks. (2) High-precision engraving: sharp clear permanent markings on jewellery pieces; supports BIS hallmarking + serial numbers + logos + custom inscriptions. (3) Versatile material compatibility: gold (all karats), silver (sterling + 925), platinum, palladium, stainless steel, brass, copper, titanium — handles complete precious metal range plus standard metals. (4) User-friendly EZCAD interface: industry-standard software for easy setup and operation; supports design import (AutoCAD DXF, CDR, PLT, AI, BMP, JPEG, PNG) + multi-language fonts (English, Hindi, Gujarati, Tamil for regional markets). (5) Compact space-saving design: small footprint fits jewellery workshop benches, showroom customisation stations, mobile on-site service vans. (6) Fast efficient operation: 10-30 seconds per piece typical marking; 5-10 seconds simple hallmark; supports high-volume showroom customisation throughput. (7) Non-contact safe marking: no scratches, no deformation, no surface damage to precious metals; works on thin sections and curved surfaces. (8) Durable reliable construction: fiber laser source 100,000+ hours operational life; minimal maintenance versus mechanical engraving alternatives.
For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry. The Smart Mark is the production-default for small-to-medium Zaveri Bazaar and Surat jewellery showrooms providing customer customisation services (initials, dates, names on rings/pendants), Mumbai BDB small-tier bullion traders engraving serial numbers on bullion pieces, BIS-authorised hallmarking centres performing official hallmark engraving at small-to-medium daily volume (50-200 pieces daily), Jaipur traditional bridal showrooms providing wedding ring inscription services, Rajkot CMT and Coimbatore small manufacturing operations brand mark engraving, designer ateliers signature mark engraving, watch repair shops back engraving, jewellery workshops transitioning from manual to laser engraving, gemological institutes (IIGJ, NIJDP) curriculum equipment for student training, and operations not yet ready for Smart-2 industrial variant capex while needing genuine fiber laser marking capability.
State-of-the-Art Fiber Laser Engraving — Production-Grade 1064nm Technology: Decisive technology choice for precious metals. 1064nm fiber laser wavelength: industry-standard for metal marking; highly absorbable by gold, silver, platinum, stainless steel; creates clean high-contrast permanent marks via controlled vaporization or annealing. Compare to alternatives: (1) CO2 lasers (10.6 µm) cannot effectively mark precious metals — wrong wavelength absorption. (2) UV lasers (355nm) excellent but significantly higher cost — specialised applications only. (3) Diode lasers — inadequate power and beam quality for jewellery marking. Fiber laser advantages preserved at entry tier: long source life (100,000+ hours), minimal maintenance, air cooling, compact footprint, premium beam quality — same fundamental technology as Smart-2 industrial variants.
High-Precision Sharp Clear Permanent Engraving: Production-grade marking quality. Marking characteristics: (1) Sharp edges: precise laser focus creates clean line edges versus mechanical engraving with rougher edges. (2) Clear contrast: optimised parameters create high-contrast marks visible against precious metal background. (3) Permanent marks: laser engraving cannot be polished off without visible damage — BIS hallmarking compliance + anti-counterfeiting + brand integrity. (4) Consistent quality: software-controlled marking delivers identical quality across all pieces — eliminates operator skill variability. (5) Fine detail capability: small spot diameter (~30-50 microns) supports BIS hallmark detail, serial numbers in 5-point font, logo work, intricate patterns.
Versatile Material Compatibility — Complete Precious Metal Range: Works across all standard jewellery materials. Primary materials: Gold (10K, 14K, 18K, 22K, 24K — yellow/white/rose), Silver (sterling + 925), Platinum, Palladium. Additional materials: Stainless steel (watch backs, fashion jewellery), Titanium (alternative jewellery), Brass, Copper (costume jewellery, hardware fittings). Production advantage: single machine handles complete jewellery operation material range — no need for multiple specialised machines for different metals.
User-Friendly EZCAD Interface — Industry-Standard Software: Accessible operation for small-to-medium operations. EZCAD features: (1) Design import: AutoCAD DXF, PLT, CDR, AI, BMP, JPEG, PNG file formats — accepts designs from any standard design software. (2) Text creation: any font including Indian language fonts (Hindi, Gujarati, Tamil) for regional jewellery markets. (3) Layer-based design: separate layers for different marking parameters (deep hallmark + surface decoration in single operation). (4) Position preview: red guide laser shows exact marking position before laser activation. (5) Design library: stores recurring designs (BIS hallmark templates, brand logos, common customisation templates). (6) Multi-operator support: simple operation supports operators with 1-2 days training versus weeks for hand engraving skill development.
Compact Space-Saving Design — Workshop/Showroom Friendly: Practical operational design. Compact footprint: typical 600×450×750mm versus Smart-2 industrial 700×500×800mm; fits jewellery workshop benches, showroom customisation stations, mobile service vans. Why it matters: (1) Zaveri Bazaar showrooms have limited floor space — compact design enables installation without major space reallocation. (2) Mobile on-site customisation services for customer events benefit from portable design. (3) Small workshops can install without dedicated room. Weight ~40-70kg: heavier than portable but practical for occasional relocation between counters.
Fast Efficient Operation — High-Speed Marking: Production throughput at entry-tier pricing. Typical marking times: (1) Simple BIS hallmark: 5-10 seconds. (2) Standard hallmark + serial number: 15-25 seconds. (3) Custom logo engraving: 20-40 seconds. (4) Customer customisation (initials/dates): 15-30 seconds. (5) Detailed inscription (couple names + date inside ring): 30-60 seconds. Daily throughput capability: 100-300 pieces daily depending on marking complexity. Production economics: showroom processing 50-150 customer customisation orders daily transforms revenue (₹500-2000 per customisation × 50-150 = ₹25,000-300,000 daily revenue potential).
Non-Contact Safe Marking — Precious Metal Surface Preservation: Critical for jewellery applications. How non-contact safety works: focused laser beam (typical 30-50 micron spot) heats precious metal surface to vaporization/annealing temperature without physical contact; metal vaporizes (deep engraving) or oxidises (surface annealing) creating permanent mark. Production advantages: (1) No surface scratching adjacent to marking area. (2) No deformation of thin sections or delicate pieces. (3) Suitable for assembled pieces without disassembly. (4) Works on curved surfaces (ring outer/inner, bangle, pendant curves). (5) Material safety: no risk of structural damage to precious metal piece.
Durable Reliable Construction — Engineered for Continuous Use: Production-grade entry-tier reliability. Fiber laser source: 100,000+ hours operational life — premium component shared with Smart-2 industrial variants. Galvo system: precision galvanometer mirrors for accurate beam positioning. Robust enclosure: steel cabinet construction with Class 4 laser safety enclosure. Minimal maintenance: monthly lens cleaning, quarterly galvo inspection, annual beam quality verification — significantly lower than mechanical engraving maintenance.
Entry-Tier Pricing — Accessible Genuine Fiber Laser Capability: The decisive capex differentiator. Smart Mark pricing: ₹1,50,000-3,50,000 — most affordable Semsons laser marking variant. Compare to alternatives: (1) Smart-2 industrial variants: ₹2-5 lakh — premium for higher-volume operations. (2) No-name budget alternatives: ₹1-2 lakh — unreliable fiber sources, poor beam quality, no software support. (3) Premium industrial alternatives: ₹5-15 lakh — overkill for small-to-medium operations. Smart Mark positioning: genuine production-grade Semsons fiber laser at entry-tier pricing — Semsons quality without industrial-tier capex.
| Technical Parameter | Specification |
|---|---|
| Model | Smart Mark — Entry-Tier Semsons Fiber Laser Marking Machine |
| Laser Type | Fiber laser (Yb-doped fiber laser source) |
| Wavelength | 1064nm (industry-standard for metal marking) |
| Laser Power | 20W (entry-tier production-default) / 30W (extended capability) — variant-dependent |
| Marking Area | 110×110mm standard; 150×150mm extended variant |
| Spot Diameter | ~30-50 microns (precision marking for fine detail) |
| Beam Quality (M²) | Less than 1.5 (production-grade beam quality for clean marking) |
| Pulse Frequency | 20-100 kHz adjustable |
| Marking Speed | Up to 7000mm/sec maximum scanning speed |
| Marking Depth | 0.01-0.15mm depending on material (multi-pass for deeper) |
| Compatible Materials | Gold (10K-22K-24K — all karats), silver (sterling + 925), platinum, palladium, stainless steel, titanium, brass, copper |
| Software | EZCAD industry-standard software — design import (DXF/PLT/CDR/AI/BMP/JPEG/PNG); multi-language including Indian fonts; layer-based design; design library |
| Marking Time | 10-30 seconds typical; 5-10 sec simple hallmark; 15-30 sec customer customisation; 30-60 sec detailed inscription |
| Position Preview | Red guide laser indicates exact marking position before activation |
| Optional Accessories | Rotary device for ring marking; auto-focus accessory; fume extractor (clean showroom operation) |
| Fiber Source Life | 100,000+ hours operational life |
| Cooling System | Air cooling (no water chiller required) |
| Safety Features | Class 4 laser safety enclosure; safety interlocks; emergency stop button; protective goggles supplied; CE/FDA laser safety compliance |
| Power Consumption | ~300-500W operating |
| Power Supply | AC 220-240V 50Hz (Indian workshops) |
| Connectivity | USB connection to PC running EZCAD software |
| Dimensions (Typical) | ~600×450×750mm compact enclosed cabinet |
| Weight | ~40-70kg compact design |
| Indian Market Pricing | ₹1,50,000-3,50,000 depending on variant (20W or 30W; 110mm or 150mm marking area) — most affordable Semsons laser marking variant |
| Warranty | 1-year manufacturer warranty extendable; free technical support and spare parts during warranty |
| Installation | Comprehensive on-site installation and operator training by Semsons authorized technician |
| Operator Training | 1-2 day training covering EZCAD software, design import, hallmarking workflow, customer customisation workflow, safety protocols |
| EMI Financing | 12-36 months through partner financial institutions — accessible monthly payments |
| Annual Maintenance Contract | Available covering preventive maintenance, lens cleaning, beam quality verification, priority spare parts (5-10% of equipment value annually) |
| Upgrade Path | Trade-in program to Smart-2 industrial variants (50W/60W+) for operations growing into higher-volume manufacturing |
| Companion Products | Rotary device (ring marking), auto-focus accessory, fume extractor, protective goggles, replacement lenses |
| Service Network | On-site service across 16+ Indian cities via 450+ dealer network |
| Export Markets | UAE, USA, Canada, Hong Kong, Bangkok, Saudi Arabia, UK + 25 more |
| Supplier | Semsons Tech — JMA Award-Winning, Since 1978 |
Indian market pricing ₹1,50,000-3,50,000 depending on variant (20W entry-tier production-default at ₹1.5-2.5 lakh; 30W extended capability at ₹2-3.5 lakh) and marking area (110×110mm standard / 150×150mm extended). EMI financing 12-36 months through partner financial institutions — typical 24-month EMI keeps monthly payment at ₹6,500-15,000 making Smart Mark accessible to small showrooms and growing operations. Complete starter bundle pricing combining Smart Mark + computer with EZCAD software pre-installed + protective goggles + on-site installation + 1-2 day operator training. Comprehensive on-site installation by Semsons authorized technician — includes equipment setup, EZCAD software configuration, safety verification, initial test marking with customer samples. 1-2 day operator training covering EZCAD software operation, design import procedures, hallmarking workflow integration, custom marking workflow for customisation services, safety protocols, basic maintenance. 1-year manufacturer warranty extendable; free technical support and spare parts. Comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses (replacement lenses, galvo mirrors, focus lens, control board components). Annual maintenance contracts available covering preventive maintenance (lens cleaning, galvo inspection, beam quality verification), priority spare parts supply (5-10% of equipment value annually). Optional accessory pricing: rotary device for ring marking (₹15,000-30,000); auto-focus accessory (₹20,000-40,000); fume extractor (₹15,000-35,000). Software updates for EZCAD throughout operational life. Trade-in program to Smart-2 industrial variants for operations growing into higher-volume manufacturing requirements. Multi-machine bundle pricing for chain-retail jewellery brand multi-location deployments and BIS hallmarking centre multi-station deployments. Dealer-network on-site service across 16+ Indian cities. Wholesale enquiries on +91 80823 38010.
Semsons Tech is a JMA Industry Award-winning supplier with 48 years in jewellery equipment, 16+ warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Unlike Amazon and IndiaMART listings shipping no-name budget fiber laser marking machines with unreliable fiber laser sources (premature failure within 12-24 months versus rated 100,000+ hours), poor beam quality creating inconsistent marks (M² >2.0 versus required <1.5), inadequate galvo systems causing positioning errors, missing EZCAD software licensing (forcing operator to use pirated software with no support), inadequate safety enclosures creating laser exposure risks, missing CE/FDA safety compliance documentation, and unreliable supply continuity for specialised laser source and galvo component replacement (extended downtime when components fail with no replacement available), Semsons supplies the Smart Mark with genuine fiber laser technology with 100,000+ hour fiber source operational life, production-grade beam quality (M² <1.5) for clean precision marking, industry-standard 1064nm wavelength for optimal precious metal absorption, 30-50 micron spot diameter for fine detail capability, accessible 20W/30W laser power variants matched to small-to-medium operations, standard 110×110mm or extended 150×150mm marking area, high-speed marking up to 7000mm/sec scanning, genuine EZCAD industry-standard software with multi-language support including Indian fonts, USB connectivity, optional rotary device + auto-focus + fume extractor accessories, position preview via red guide laser, Class 4 laser safety enclosure with safety interlocks + emergency stop meeting CE/FDA safety compliance, air cooling (no water chiller required), compact space-saving design, comprehensive on-site installation by Semsons authorized technician, 1-2 day operator training covering EZCAD software + production workflow + safety protocols, 1-year warranty extendable, comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses, annual maintenance contracts with preventive maintenance + priority spare parts, optional accessory supply, EZCAD software updates throughout operational life, EMI financing 12-36 months making accessible to small operations, multi-machine bundle pricing for chain-retail and hallmarking centre deployments, trade-in program to Smart-2 industrial variants for operations growing into higher-volume manufacturing, dealer-network on-site service across 16+ Indian cities, and 48-year supplier reputation in Indian jewellery industry. For small-to-medium jewellery operations transitioning to laser marking technology where BIS hallmarking compliance is mandatory and customer customisation services represent significant revenue opportunity, accessible Semsons-branded entry-tier capability matters more than no-name budget alternatives with quality risks and no supplier accountability. Where Quality Speaks For Us — Since 1978.
For pricing across configuration variants (20W entry-tier / 30W extended capability; 110×110mm / 150×150mm marking area), complete starter bundle (Smart Mark + computer + EZCAD + protective goggles + on-site installation + 1-2 day training), EMI financing 12-36 months making Smart Mark accessible, annual maintenance contracts, multi-machine bundle pricing for chain-retail jewellery brand multi-location deployments and BIS hallmarking centre multi-station deployments, optional accessory pricing (rotary device for ring marking, auto-focus accessory, fume extractor), trade-in program to Smart-2 industrial variants for operations growing into higher-volume manufacturing requirements, software update subscription for EZCAD, international export, BIS hallmarking centre setup consultation, or technical consultation matched to your daily marking volume and application requirements, WhatsApp our sales desk on +91 98216 12340 or wholesale on +91 80823 38010. Pair with the complete Semsons jewellery production and showroom workflow ecosystem across laser equipment (Smart Mark entry tier + Smart-2 industrial production variants + Laser Welding Machine — companion product for jewellery welding), gold testing (Signet FSDD + Portable XRF Gold Analyzer + Signet Si-PIN + Gold Coin Testing Machine), currency counting (Smart Plus CIS + Smart X Pro + complete counter range), diamond and gemstone tools (Carat Scale, Microscope, Diamond Tweezer, Gemology Instruments), casting and finishing workflow equipment (Wax Beads + Vacuum Wax Injectors + Vulcanizer + Investment Powder Mixer + Burnout Furnace + Vacuum Pressure Casting + complete finishing equipment), and complete jewellery manufacturing workflow equipment. Same-day dispatch from Mumbai and Rajkot warehouses across 16+ Indian cities.
