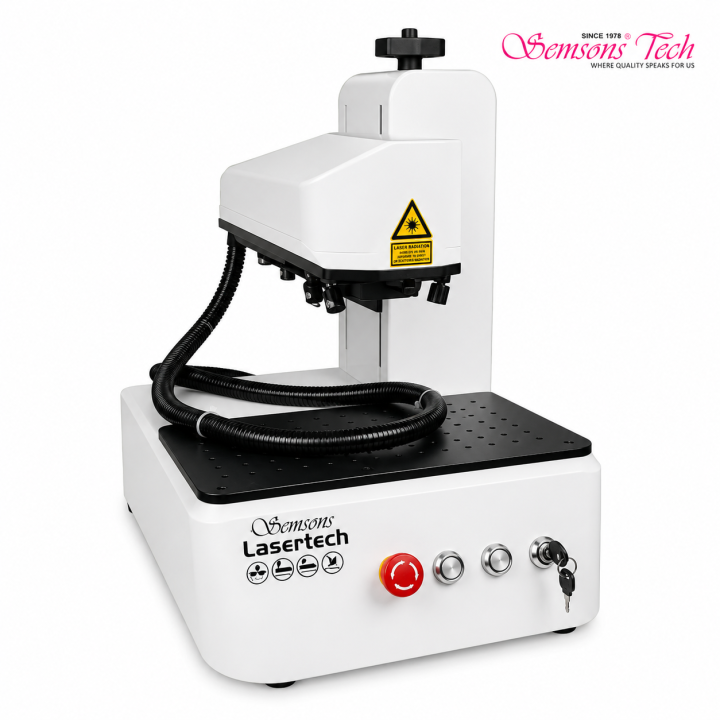

Laser marking Machine Smart-2

The Production-Grade Fiber Laser Marking Machine — Precision Engraving Equipment for Gold, Silver, Platinum Jewellery Hallmarking, Branding and Custom Inscription

Jewellery marking and engraving faces fundamental limitations with traditional mechanical methods. (1) Hand engraving: extremely time-consuming (5-15 minutes per piece for detailed work); operator skill dependent (significant quality variability across operators); causes surface scratching and slight deformation; difficult on fine pieces or curved surfaces. (2) Mechanical stamping: limited to simple hallmark stamps; causes piece deformation under stamping pressure; cannot deliver fine logo work or serial numbers; risk of cracking thin sections. (3) Chemical etching: requires dangerous acid handling; environmental disposal concerns; limited precision; cannot produce fine detail. (4) CO2 laser marking: 10.6 µm wavelength poorly absorbed by metals; cannot mark precious metals effectively (mostly used for organic materials like wood, acrylic). The Smart-2 Fiber Laser Marking Machine addresses all these limitations: (1) 1064nm fiber laser wavelength — highly absorbable by metals (gold, silver, platinum, stainless steel, titanium); creates permanent marks via metal vaporization or annealing. (2) Non-contact marking: laser beam marks surface without physical contact; no scratches, no deformation, no surface damage; suitable for fine pieces and curved surfaces. (3) High precision: micron-level accuracy enables fine logo work, serial numbers (5-point font readable), intricate patterns, complex decorative designs. (4) Fast marking speed: typical 10-30 seconds per piece for standard hallmark + serial number versus 5-15 minutes for hand engraving. (5) Permanent tamper-resistant marks: laser engraving cannot be wiped off, polished off, or altered without visible damage — supports BIS hallmarking regulatory compliance, anti-counterfeiting, brand integrity. (6) Operator skill independence: software-controlled marking delivers consistent quality across all operators; eliminates skill variability. (7) Fiber laser longevity: 100,000+ hours fiber source life versus 5,000-10,000 hours for older CO2 lasers; minimal maintenance.

For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry. The Smart-2 Fiber Laser Marking Machine is the production-default for BIS-authorised hallmarking centres performing official karat hallmark engraving (BIS hallmark + jeweller identification mark + assaying centre identification mark + fineness mark), Zaveri Bazaar and Surat jewellery showrooms providing customer customisation (initials, dates, names on rings/pendants), Mumbai BDB bullion bar/biscuit serial number engraving, chain-retail jewellery brand (Tanishq/Joyalukkas/Malabar/Kalyan style) showroom-level customisation services, Jaipur traditional bridal showroom couple-name engraving on wedding rings, Rajkot CMT and Coimbatore manufacturing operations brand mark engraving on outgoing pieces, designer ateliers signature mark engraving, gold export operations international hallmarking compliance, watch manufacturing (watch back engraving), and high-volume jewellery factories integrating laser marking into production line.

Core Engineering Advantages

• 1064nm Fiber Laser Technology — Industry-Standard Wavelength for Metal Marking: The decisive technology choice for jewellery. Why 1064nm: this near-infrared wavelength is highly absorbed by metals (gold, silver, platinum, stainless steel, titanium); efficient energy transfer to metal surface; creates clean, high-contrast marks via controlled vaporization or annealing. Compare to CO2 lasers (10.6 µm): CO2 wavelength poorly absorbed by metals; cannot effectively mark precious metals; primarily used for organic materials. Compare to UV lasers (355nm): UV lasers excellent for surface marking and ultra-shallow engraving but significantly higher cost; appropriate for specialised applications only. Production conclusion: 1064nm fiber laser is the production-default for jewellery marking — optimal performance-to-cost ratio.

• Power Range — 20W to 60W Configuration Variants: Matched to production application. 20W (entry production): fine surface marking on gold/silver/platinum; ideal for logo engraving, hallmarking, serial numbers, surface decorative patterns; 110×110mm marking area; ₹1.5-2.5 lakh pricing. 30W (standard production): standard production marking on all precious metals; faster marking speeds; deeper engraving capability for premium hallmarks; 110×110mm or 150×150mm marking area; ₹2-3.5 lakh pricing. 50W (premium production): deep engraving capability; high-volume production speed; suitable for industrial jewellery manufacturing; ₹3-4.5 lakh pricing. 60W+ (industrial production): deep engraving + thin metal cutting; complex 3D engraving; industrial production line integration; ₹4-5 lakh pricing.

• Non-Contact Marking — Preserves Precious Metal Surface: Critical for jewellery applications. How non-contact works: focused laser beam (typical 30-50 micron spot diameter) heats precious metal surface to vaporization or annealing temperature without physical contact; metal vaporizes (deep engraving) or oxidises (surface annealing) creating permanent mark. Production advantages: (1) No surface scratching — versus mechanical engraving that causes surface damage adjacent to engraving area. (2) No deformation — versus mechanical stamping that causes piece deformation under pressure. (3) Suitable for thin sections — versus mechanical methods that may crack thin sections of delicate pieces. (4) Works on curved surfaces — laser beam adapts to surface contour; mechanical methods limited to flat surfaces. (5) Works on assembled pieces — laser marks without disassembly versus mechanical methods often requiring disassembly.

• Permanent Tamper-Resistant Marks — BIS Hallmarking Compliance: Critical regulatory advantage. BIS hallmarking requirements: BIS mandatory hallmarking (effective 2021+) requires permanent hallmark + jeweller ID + assaying centre ID + fineness/karat mark on every piece sold in India. Why laser marking: (1) Permanence: laser marks cannot be polished off without visible damage. (2) Precision: fine BIS hallmark detail clearly visible. (3) Speed: 10-30 seconds per piece supports production volume. (4) Consistency: identical hallmark quality across all pieces. (5) Documentation: software logs all hallmarking activity for audit. Production economics: BIS hallmarking compliance is no longer optional — laser marking is the production-default method for compliance.

• High Precision — Micron-Level Accuracy: Fine detail capability. Laser spot diameter: typical 30-50 microns (significantly smaller than mechanical engraving tools). Practical detail capability: (1) Serial numbers in 5-point font readable. (2) Intricate logos with fine line detail. (3) Decorative patterns with sub-millimeter elements. (4) Multi-line text on small surfaces (inside ring shanks, watch backs). (5) Signature engravings (designer mark). (6) QR codes or barcodes for inventory tracking. Production applications: hallmarking (BIS marks fit on 2-3mm areas), serial number engraving for high-value pieces, branding (Tanishq/Joyalukkas brand marks), custom personalisation (couple initials and wedding dates).

• Fast Marking Speed — 10-30 Seconds Per Piece: Production workflow efficiency. Typical marking times: (1) Simple hallmark (BIS mark only): 5-10 seconds. (2) Standard hallmark + serial number: 15-25 seconds. (3) Custom logo engraving: 20-40 seconds. (4) Detailed inscriptions (couple names + date inside ring): 30-60 seconds. (5) Complex decorative engraving: 1-3 minutes. Compare to hand engraving: 5-15 minutes per piece for similar work. Production economics impact: chain-retail showroom adding customisation service can process 50-150 customer customisation orders daily versus 10-20 with hand engraving.

• EZCAD Software — Industry-Standard Intuitive Operation: Production-grade software platform. EZCAD features: (1) Design import: AutoCAD DXF, PLT, CDR, AI, BMP, JPEG, PNG file formats. (2) Text creation: any font including Indian language fonts (Hindi, Gujarati, Tamil for regional jewellery markets). (3) Layer-based design: separate layers for different marking parameters. (4) Power/speed control per element: different engraving depths for different elements (deep hallmark + surface decoration). (5) Position preview: red guide laser shows exact marking position before activation. (6) Auto-focus: optional auto-focus accessory adjusts focus per sample height. (7) Rotary device support: marking around ring circumference. (8) Production database: stores designs for recurring customers/products. Operator skill: typical 1-2 day training covers complete EZCAD operation.

• Long Operational Life — Fiber Source 100,000+ Hours: Premium reliability. Fiber laser source life: 100,000+ hours typical (versus CO2 lasers 5,000-10,000 hours requiring tube replacement). Daily duty cycle calculation: 8 hours daily duty for 25 years before fiber source replacement. Maintenance requirements: minimal — periodic lens cleaning (monthly), galvo mirror inspection (quarterly), beam quality verification (annual). Compare to CO2 alternatives: CO2 tube replacement after 5,000-10,000 hours creates significant operational disruption and replacement cost. Total cost of ownership: fiber laser significantly lower across operational life despite higher initial capex.

• Marking Area Options — 110×110mm Standard, 150×150mm Extended: Production application matching. 110×110mm marking area: standard configuration; covers typical jewellery piece sizes (rings, pendants, earrings, small chains, bracelets); suitable for most jewellery applications. 150×150mm marking area: extended configuration; covers larger pieces (large necklaces, watches, decorative gold/silver items); slightly higher pricing. Custom large-area variants: available for industrial production line integration.

• Optional Rotary Device for Ring Marking: Specialised capability. Rotary device: attaches to laser marking machine; holds ring on rotating mechanism; software synchronises ring rotation with laser marking. Production application: marking continuous text/patterns around ring circumference (inside or outside); essential for wedding ring inscription services (couple names + date around inside of ring); decorative patterns around outside surface. Production economics: ring engraving is high-margin service for jewellery showrooms; rotary device enables this service offering.

Technical Specifications

Power Variant Selection — Which Smart-2 Configuration Is Right for Your Operation?

• 20W (₹1.5-2.5 lakh): fine marking on gold/silver/platinum; logo engraving, hallmarking, serial numbers, surface decorative patterns; small-to-medium showroom customisation services; BIS hallmarking compliance.
• 30W (₹2-3.5 lakh) — production-default: standard production marking; faster speeds + deeper engraving capability; chain-retail showroom customisation; BIS hallmarking centre operations; mid-volume manufacturing.
• 50W (₹3-4.5 lakh): premium production; deep engraving + high-volume production speed; industrial jewellery manufacturing; designer atelier signature mark engraving on premium pieces.
• 60W+ (₹4-5 lakh): industrial production; deep engraving + thin metal cutting capability; complex 3D engraving; production line integration in large-scale manufacturing.

Real-World Use Cases

• BIS hallmarking centre official karat hallmark engraving — BIS-authorised hallmarking centre uses Smart-2 for engraving official BIS hallmark + jeweller identification mark + assaying centre identification mark + fineness mark on every certified piece; 30W variant supports 200-500 daily hallmarking volume
• Zaveri Bazaar jewellery showroom customer customisation service — premium showroom offers customer customisation (initials, dates, names on rings/pendants); Smart-2 enables high-margin customisation service; typical 30-60 second per piece marking
• Mumbai BDB bullion bar/biscuit serial number engraving — bullion trader engraves serial numbers on bars/biscuits for tracking + authentication; permanent tamper-resistant marks support anti-counterfeiting
• Chain-retail jewellery brand (Tanishq/Joyalukkas/Malabar style) brand mark engraving — chain-retail brand engraves brand mark + design code + collection identifier on every piece; supports brand integrity + inventory tracking; production line integration
• Jaipur traditional bridal showroom couple-name wedding ring engraving — bridal showroom offers couple-name engraving inside wedding rings (typically couple initials + wedding date); rotary device accessory enables continuous ring-circumference marking
• Rajkot CMT and Coimbatore manufacturing brand mark engraving — CMT/manufacturing operations engrave brand mark on outgoing pieces for customer brand identification; high-volume production marking
• Designer atelier signature mark engraving — designer atelier engraves designer signature on premium pieces; supports brand integrity and authenticity verification
• Gold export operation international hallmarking compliance — export operation engraves international hallmarking marks (UK hallmark, Hong Kong fineness mark, UAE marks) per destination market requirements
• Watch manufacturing watch-back engraving — watch manufacturer engraves serial numbers, brand marks, special edition markings on watch backs; precision marking on small surfaces
• High-volume factory production line integration — large-scale jewellery factory integrates Smart-2 60W variant into production line; automated marking on outgoing pieces

Pricing, Installation & Support

Indian market pricing ₹1,50,000-5,00,000 depending on laser power variant (20W / 30W / 50W / 60W+) and marking area (110×110mm standard / 150×150mm extended). EMI financing 12-36 months through partner financial institutions makes laser marking accessible to growing operations. Complete starter bundle pricing combining Smart-2 + computer with EZCAD software pre-installed + fume extractor (recommended for clean operation in showroom environments) + protective goggles + on-site installation + 1-2 day operator training. Comprehensive on-site installation by Semsons authorized technician — includes equipment setup, EZCAD software configuration, safety verification, initial test marking with customer samples. 1-2 day operator training covering EZCAD software operation, design import procedures (logos, hallmark designs, text formatting), hallmarking workflow integration, custom marking workflow for customisation services, safety protocols, basic maintenance. 1-year manufacturer warranty extendable to 2-3 years; free technical support and spare parts. Comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses (replacement lenses, galvo mirrors, focus lens, control board components). Annual maintenance contracts available covering preventive maintenance (lens cleaning, galvo mirror inspection, beam quality verification), priority spare parts supply (5-10% of equipment value annually). Optional accessory pricing: rotary device for ring marking (₹15,000-30,000); auto-focus accessory (₹20,000-40,000); fume extractor (₹15,000-35,000). Software updates for EZCAD throughout operational life. Multi-machine bundle pricing for chain-retail jewellery brand multi-location deployments and BIS hallmarking centre multi-station deployments. Trade-in program for operations upgrading from mechanical engraving or chemical etching to laser marking. Dealer-network on-site service across 16+ Indian cities. Wholesale enquiries on +91 80823 38010.

Why Buy Smart-2 from Semsons Tech

Semsons Tech is a JMA Industry Award-winning supplier with 48 years in jewellery equipment, 16+ warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Unlike Amazon and IndiaMART listings shipping no-name budget fiber laser marking machines with unreliable fiber laser sources (premature failure within 12-24 months versus rated 100,000+ hours), poor beam quality creating inconsistent marks (M² >2.0 versus required <1.4), inadequate galvo systems causing positioning errors, missing EZCAD software licensing (forcing operator to use pirated software with no support), inadequate safety enclosures creating laser exposure risks, missing CE/FDA safety compliance documentation, and unreliable supply continuity for specialised laser source and galvo component replacement (extended downtime when components fail), Semsons supplies the Smart-2 Fiber Laser Marking Machine with genuine fiber laser technology with 100,000+ hour fiber source operational life, premium beam quality (M² <1.4) for clean precision marking, industry-standard 1064nm wavelength for optimal precious metal absorption, 30-50 micron spot diameter for fine detail capability, multiple laser power variants (20W/30W/50W/60W+) matched to production application, standard 110×110mm or extended 150×150mm marking area, high-speed marking (up to 7000mm/sec scanning), genuine EZCAD industry-standard software with multi-language support including Indian fonts, USB connectivity with standalone operation support, optional rotary device for ring marking, optional auto-focus accessory, position preview via red guide laser, Class 4 laser safety enclosure with safety interlocks and emergency stop meeting CE/FDA safety compliance, air cooling (no water chiller required), comprehensive on-site installation by Semsons authorized technician, 1-2 day operator training covering EZCAD software and complete production workflow, 1-year warranty extendable to 2-3 years, comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses, annual maintenance contracts with preventive maintenance and priority spare parts, optional accessory supply (rotary device, auto-focus, fume extractor), EZCAD software updates throughout operational life, EMI financing 12-36 months, multi-machine bundle pricing for chain-retail and hallmarking centre deployments, trade-in program for operations upgrading from mechanical engraving, dealer-network on-site service across 16+ Indian cities, and 48-year supplier reputation in Indian jewellery industry. For jewellery marking where BIS hallmarking regulatory compliance is mandatory (effective 2021+), customer customisation services represent high-margin revenue opportunity, and brand integrity depends on consistent quality marking across production volume, supplier accountability and equipment quality matter far more than upfront capex savings from no-name budget alternatives. Where Quality Speaks For Us — Since 1978.

Order Your Smart-2 Fiber Laser Marking Machine Today

For pricing across configuration variants (20W / 30W / 50W / 60W+ laser power; 110×110mm / 150×150mm marking area), complete starter bundle (Smart-2 + computer + EZCAD + fume extractor + protective goggles + on-site installation + 1-2 day training), EMI financing 12-36 months, annual maintenance contracts, multi-machine bundle pricing for chain-retail jewellery brand multi-location deployments and BIS hallmarking centre multi-station deployments, optional accessory pricing (rotary device for ring marking, auto-focus accessory, fume extractor), trade-in program for operations upgrading from mechanical engraving or chemical etching, software update subscription for EZCAD, international export, BIS hallmarking centre setup consultation, or technical consultation matched to your daily marking volume and application requirements, WhatsApp our sales desk on +91 98216 12340 or wholesale on +91 80823 38010. Pair with the complete Semsons jewellery production and showroom workflow ecosystem across laser equipment (Smart-2 fiber laser marking + Laser Welding Machine — companion product for jewellery welding), gold testing (Signet FSDD + Portable XRF Gold Analyzer + Signet Si-PIN + Gold Coin Testing Machine), currency counting (Smart Plus CIS + Smart X Pro + complete counter range), diamond and gemstone tools (Carat Scale, Microscope, Diamond Tweezer, Gemology Instruments), casting and finishing workflow equipment (Wax Beads + Vacuum Wax Injectors + Vulcanizer + Investment Powder Mixer + Burnout Furnace + Vacuum Pressure Casting + complete finishing equipment), and complete jewellery manufacturing workflow equipment. Same-day dispatch from Mumbai and Rajkot warehouses across 16+ Indian cities.
