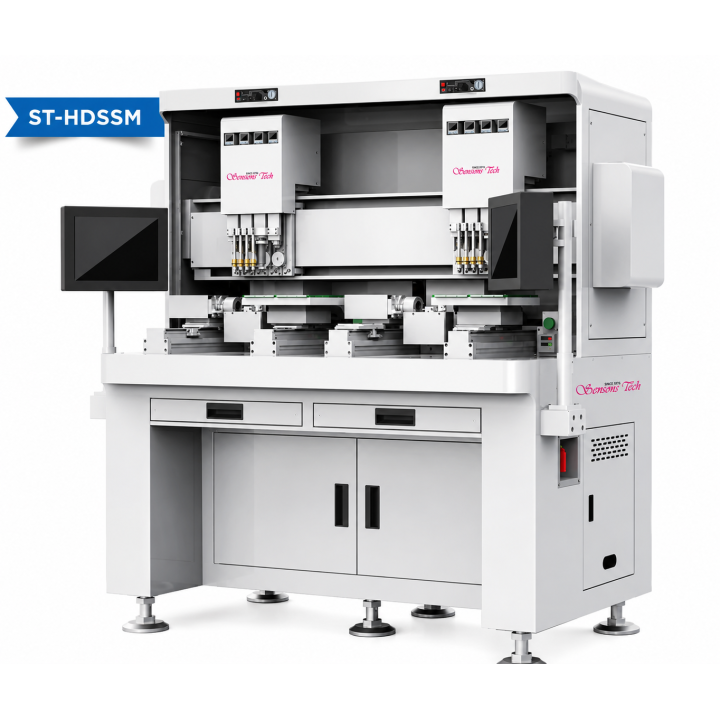

• Semsons ST-HDSSM - Double Station Double Head Automatic Wax Setting Machine (photo 1 of 2)

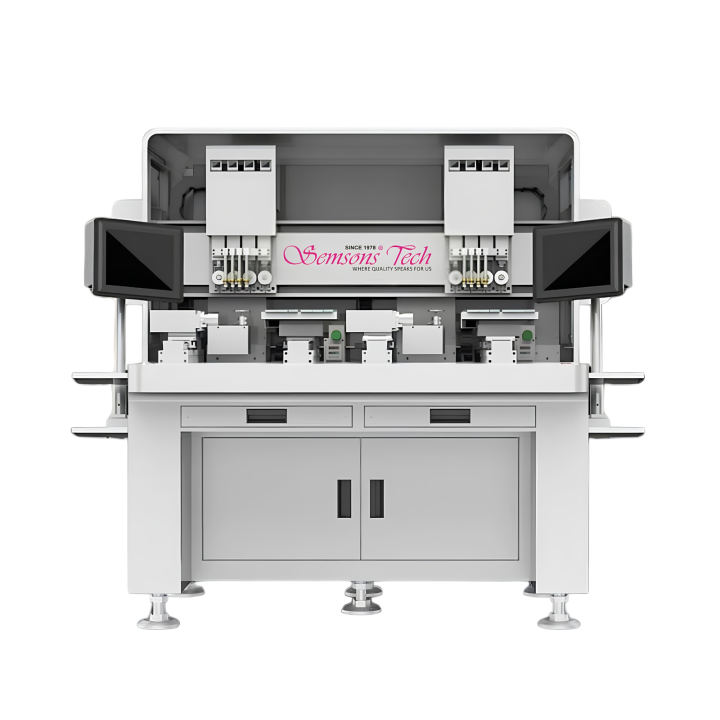

  • Semsons ST-HDSSM - Double Station Double Head Automatic Wax Setting Machine (photo 2 of 2)

Semsons Tech

Semsons ST-HDSSM - Double Station Double Head Automatic Wax Setting Machine

Semsons ST-HDSSM - Double Station Double Head Automatic Wax Setting Machine

Request a quote

Pricing depends on configuration, quantity and your requirements.

Sets diamonds and CZ into jewellery wax models at up to 20,000 stones per hour, the highest output in the Semsons setting range.

✔ Two heads, 8 suction nozzles - two stations with a rotary axis each
✔ ±0.02 mm spot accuracy - on every stone
✔ Five-axis motion controller - with high-end servo drive
✔ Semsons Tech's own operating system - run from one screen
✔ 220 V AC, 3.5 kW - plus 90 psi compressed air
✔ About the work of 15 skilled setters

Installed at your workshop with operator training. Service across 16+ Indian cities. Price quoted per configuration.

WhatsApp +91 98216 12340 · Semsons Tech, Mumbai, since 1978.

Share your requirement and our team will send you pricing, availability and a quotation.

Semsons ST-HDSSM - Double Station Double Head Automatic Wax Setting Machine

Two stations. Two heads. Eight nozzles. Up to 20,000 stones an hour.

The ST-HDSSM is the high-volume machine in the Semsons automatic wax setting range. It sets diamonds and CZ into wax models before casting, so the stones are already in place when the metal is cast. It has two flat worktables, each with its own rotary axis, and two setting heads carrying 8 suction nozzles between them. That is how it reaches up to 20,000 stones an hour, against up to 15,000 on the X4 Pro Plus and up to 10,000 on the Pro Mini.

How It Works

The wax model is fixed to a base on the worktable. For every stone in the design, the machine drills the seat, picks the stone from the tray with a suction nozzle and presses it into the wax, placing it within ±0.02 mm. An industrial-grade five-axis motion controller and servo drive move the heads, and the rotary axis turns the piece so stones can go onto curved surfaces. The set wax models then go to casting as usual, and the metal forms around the stones and holds them.

How to Use It

  1. Load - fix the wax models on the worktables and fill the trays with sorted stones.
  2. Choose the design - select it on the control screen.
  3. Start - the machine sets the stones. Load the second station while the first one is running.

Our engineers install the machine at your workshop and train your operators on site.

What Makes It Different

FeatureWhat You Get
Up to 20,000 stones / hourThe highest output in the Semsons setting range
Double head, 8 nozzlesTwice the nozzles of the X4 Pro Plus
Double stationDual flat worktables with dual rotary axes
±0.02 mm spot accuracyThe same placement accuracy as the rest of the range
Five-axis controlIndustrial-grade five-axis motion controller, high-end servo drive
Semsons operating systemSemsons Tech's own operating system runs the machine
Replaces about 15 settersFor workshops where setting is holding up the line

Key Specifications

ParameterSpecification
ModelST-HDSSM
EquipmentDouble Head Jewellery Wax Setting Machine
Workbench StructureDual flat worktable and dual rotary axis worktable structure
Stone Setting SpeedUp to 20,000 stones per hour
Suction Nozzles8 nozzles
Drill Head FixingMoveable spring top screw on the upper side of the platform
Spot Drilling Accuracy±0.02 mm
Control SystemIndustrial-grade five-axis motion controller
Operating SystemSemsons Tech self-developed system
Drive SystemHigh-end servo
TransmissionHigh-precision screw guide
Power SupplyAC 220 V, 50 Hz
Rated Power3.5 kW
Working Air Pressure90 psi (0.6 MPa)
Weight835 kg
Dimensions1450 × 750 × 1395 mm

Who Uses It

  • Jewellery manufacturers whose setting volume is beyond one double-station machine
  • CZ and lab-grown diamond jewellery makers running long, continuous setting jobs
  • Export units where stone setting is slowing down the whole line

Common Questions

What is a double head wax setting machine?

It is an automatic wax setting machine with two setting heads instead of one. On the ST-HDSSM the two heads carry 8 suction nozzles between them and work across two stations, which is how it sets up to 20,000 stones an hour.

How fast does it set stones?

Up to 20,000 stones per hour, according to the Semsons 2026 catalogue. The real figure on your floor depends on the design, the stone size and how quickly the trays and wax models are changed.

How many setters does it replace?

The catalogue puts it at about the work of 15 skilled manual setters.

ST-HDSSM or X4 Pro Plus - which one do I need?

Both are double-station machines with ±0.02 mm accuracy. The ST-HDSSM has two heads and 8 nozzles and sets up to 20,000 stones an hour. The X4 Pro Plus has 4 nozzles and sets up to 15,000, and runs on single-phase power. For lower volumes, the single-station Pro Mini sets up to 10,000.

Which stones can it set?

Diamonds, lab-grown diamonds and CZ. The stones are sorted by size into the trays, and the machine picks each one with a suction nozzle. Tell the sales desk your stone sizes so the right nozzles and trays are supplied with the machine.

What power, air and floor space does it need?

An AC 220 V, 50 Hz supply with 3.5 kW rated power, and compressed air at 90 psi (0.6 MPa). The machine is 1450 × 750 mm and 1395 mm tall, and weighs 835 kg.

How accurate is it?

Spot drilling accuracy is ±0.02 mm, the same as the X4 Pro Plus and the Pro Mini.

Is installation and training included?

Yes. Semsons engineers install the machine at your workshop and train your operators on site.

What does it cost?

The price is quoted per configuration and delivery location. WhatsApp +91 98216 12340 for a quote.

Pricing, Installation & Support

Price quoted per configuration. On-site installation and operator training included. Genuine spare parts and service across 16+ Indian cities. All three Semsons setting machines are in Diamond & Wax Setting Machines, and the trays, nozzles and setting silicone they run on are in Jewellery Consumables.
