Laser marking Machine Smart-2

Request a quote

Pricing depends on configuration, quantity and your requirements.

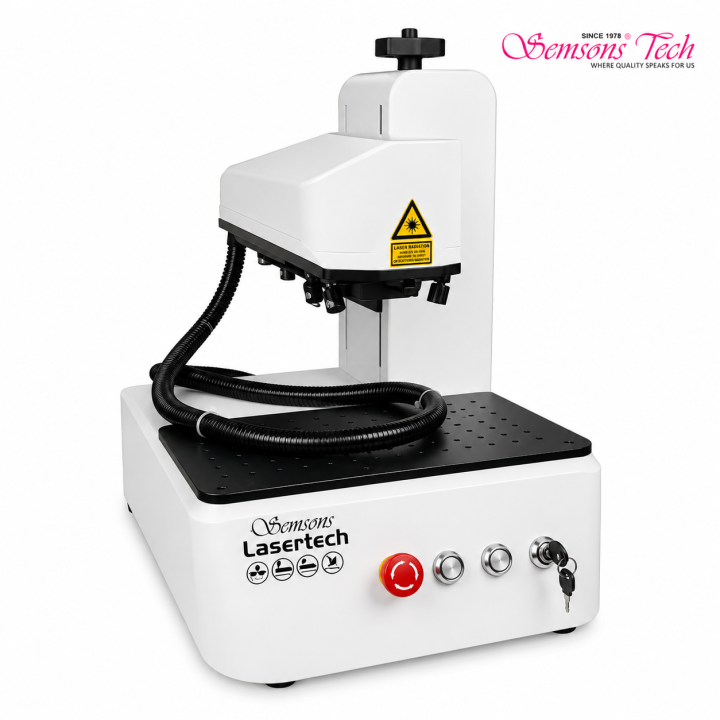

Smart-2 Fiber Laser Marking Machine by Semsons Tech is a precision laser engraving system designed for logo marking, serial numbers, and custom inscriptions on gold, silver, platinum, and other metals. Using industry-standard 1064nm fiber laser technology, it produces permanent, high-contrast marks without scratching, deforming, or damaging the surface. Available in multiple power options for fine engraving or deeper marking applications, it delivers micron-level accuracy for detailed logos and intricate designs. Features include non-contact operation, large marking area, EZCAD software compatibility, low maintenance requirements, and a long-life laser source, making it ideal for jewellery manufacturing workflows.

Share your requirement and our team will send you pricing, availability and a quotation.

The Production-Grade Fiber Laser Marking Machine - Precision Engraving Equipment for Gold, Silver, Platinum Jewellery Branding and Custom Inscription

Jewellery marking and engraving faces fundamental limitations with traditional mechanical methods. (1) Hand engraving: extremely time-consuming (5-15 minutes per piece for detailed work); operator skill dependent (significant quality variability across operators); causes surface scratching and slight deformation; difficult on fine pieces or curved surfaces. (2) Mechanical stamping: limited to simple code stamps; causes piece deformation under stamping pressure; cannot deliver fine logo work or serial numbers; risk of cracking thin sections. (3) Chemical etching: requires dangerous acid handling; environmental disposal concerns; limited precision; cannot produce fine detail. (4) CO2 laser marking: 10.6 µm wavelength poorly absorbed by metals; cannot mark precious metals effectively (mostly used for organic materials like wood, acrylic). The Smart-2 Fiber Laser Marking Machine addresses all these limitations: (1) 1064nm fiber laser wavelength - highly absorbable by metals (gold, silver, platinum, stainless steel, titanium); creates permanent marks via metal vaporization or annealing. (2) Non-contact marking: laser beam marks surface without physical contact; no scratches, no deformation, no surface damage; suitable for fine pieces and curved surfaces. (3) High precision: micron-level accuracy enables fine logo work, serial numbers (5-point font readable), intricate patterns, complex decorative designs. (4) Fast marking speed: typical 10-30 seconds per piece for standard logo + serial number versus 5-15 minutes for hand engraving. (6) Operator skill independence: software-controlled marking delivers consistent quality across all operators; eliminates skill variability. (7) Fiber laser longevity: 100,000+ hours fiber source life versus 5,000-10,000 hours for older CO2 lasers; minimal maintenance.

For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry.

Core Engineering Advantages

  • 1064nm Fiber Laser Technology - Industry-Standard Wavelength for Metal Marking: The decisive technology choice for jewellery. Why 1064nm: this near-infrared wavelength is highly absorbed by metals (gold, silver, platinum, stainless steel, titanium); efficient energy transfer to metal surface; creates clean, high-contrast marks via controlled vaporization or annealing. Compare to CO2 lasers (10.6 µm): CO2 wavelength poorly absorbed by metals; cannot effectively mark precious metals; primarily used for organic materials. Compare to UV lasers (355nm): UV lasers excellent for surface marking and ultra-shallow engraving but significantly higher cost; appropriate for specialised applications only. Production conclusion: 1064nm fiber laser is the production-default for jewellery marking - optimal performance-to-cost ratio.
  • Power Range - 20W to 60W Configuration Variants: Matched to production application. 20W (entry production): fine surface marking on gold/silver/platinum; ideal for logo engraving, serial numbers, surface decorative patterns; 110×110mm marking area. 30W (standard production): standard production marking on all precious metals; faster marking speeds; deeper engraving capability for premium marks; 110×110mm or 150×150mm marking area. 50W (premium production): deep engraving capability; high-volume production speed; suitable for industrial jewellery manufacturing. 60W+ (industrial production): deep engraving + thin metal cutting; complex 3D engraving; industrial production line integration.
  • Non-Contact Marking - Preserves Precious Metal Surface: Critical for jewellery applications. How non-contact works: focused laser beam (typical 30-50 micron spot diameter) heats precious metal surface to vaporization or annealing temperature without physical contact; metal vaporizes (deep engraving) or oxidises (surface annealing) creating permanent mark. Production advantages: (1) No surface scratching - versus mechanical engraving that causes surface damage adjacent to engraving area. (2) No deformation - versus mechanical stamping that causes piece deformation under pressure. (3) Suitable for thin sections - versus mechanical methods that may crack thin sections of delicate pieces. (4) Works on curved surfaces - laser beam adapts to surface contour; mechanical methods limited to flat surfaces. (5) Works on assembled pieces - laser marks without disassembly versus mechanical methods often requiring disassembly.
  • Why laser marking: (1) Permanence: laser marks cannot be polished off without visible damage. (3) Speed: 10-30 seconds per piece supports production volume. (4) Consistency: identical marking quality across all pieces. (5) Documentation: software logs all marking activity.
  • High Precision - Micron-Level Accuracy: Fine detail capability. Laser spot diameter: typical 30-50 microns (significantly smaller than mechanical engraving tools). Practical detail capability: (1) Serial numbers in 5-point font readable. (2) Intricate logos with fine line detail. (3) Decorative patterns with sub-millimeter elements. (4) Multi-line text on small surfaces (inside ring shanks, watch backs). (5) Signature engravings (designer mark). (6) QR codes or barcodes for inventory tracking.
  • Fast Marking Speed - 10-30 Seconds Per Piece: Production workflow efficiency. Typical marking times: (1) Simple logo or code: 5-10 seconds. (2) Standard logo + serial number: 15-25 seconds. (3) Custom logo engraving: 20-40 seconds. (4) Detailed inscriptions (couple names + date inside ring): 30-60 seconds. (5) Complex decorative engraving: 1-3 minutes. Compare to hand engraving: 5-15 minutes per piece for similar work. Production economics impact: chain-retail showroom adding customisation service can process 50-150 customer customisation orders daily versus 10-20 with hand engraving.
  • EZCAD Software - Industry-Standard Intuitive Operation: Production-grade software platform. EZCAD features: (1) Design import: AutoCAD DXF, PLT, CDR, AI, BMP, JPEG, PNG file formats. (2) Text creation: any font including Indian language fonts (Hindi, Gujarati, Tamil for regional jewellery markets). (3) Layer-based design: separate layers for different marking parameters. (4) Power/speed control per element: different engraving depths for different elements (deep mark + surface decoration). (5) Position preview: red guide laser shows exact marking position before activation. (6) Auto-focus: optional auto-focus accessory adjusts focus per sample height. (7) Rotary device support: marking around ring circumference. (8) Production database: stores designs for recurring customers/products. Operator skill: typical 1-2 day training covers complete EZCAD operation.
  • Long Operational Life - Fiber Source 100,000+ Hours: Premium reliability. Fiber laser source life: 100,000+ hours typical (versus CO2 lasers 5,000-10,000 hours requiring tube replacement). Daily duty cycle calculation: 8 hours daily duty for 25 years before fiber source replacement. Maintenance requirements: minimal - periodic lens cleaning (monthly), galvo mirror inspection (quarterly), beam quality verification (annual). Compare to CO2 alternatives: CO2 tube replacement after 5,000-10,000 hours creates significant operational disruption and replacement cost. Total cost of ownership: fiber laser significantly lower across operational life despite higher initial capex.
  • Marking Area Options - 110×110mm Standard, 150×150mm Extended: Production application matching. 110×110mm marking area: standard configuration; covers typical jewellery piece sizes (rings, pendants, earrings, small chains, bracelets); suitable for most jewellery applications. 150×150mm marking area: extended configuration; covers larger pieces (large necklaces, watches, decorative gold/silver items); slightly higher pricing. Custom large-area variants: available for industrial production line integration.
  • Optional Rotary Device for Ring Marking: Specialised capability. Rotary device: attaches to laser marking machine; holds ring on rotating mechanism; software synchronises ring rotation with laser marking. Production application: marking continuous text/patterns around ring circumference (inside or outside); essential for wedding ring inscription services (couple names + date around inside of ring); decorative patterns around outside surface. Production economics: ring engraving is high-margin service for jewellery showrooms; rotary device enables this service offering.

Technical Specifications

Technical ParameterSpecification
ModelSmart-2 - Fiber Laser Marking Machine for Jewellery and Precious Metals
Laser TypeFiber laser (Yb-doped fiber laser source)
Wavelength1064nm (industry-standard for metal marking - highly absorbable by precious metals)
Laser Power20W / 30W (fine marking) / 50W / 60W+ (deep engraving) - variant-dependent
Marking Area110×110mm standard; 150×150mm extended; custom larger areas available
Spot Diameter~30-50 microns (precision marking for fine detail)
Beam Quality (M²)Less than 1.4 (premium beam quality for clean precision marking)
Pulse Frequency20-100 kHz adjustable
Marking SpeedUp to 7000mm/sec maximum scanning speed
Marking Depth0.01-0.3mm depending on material and laser power (multi-pass for deeper)
Compatible MaterialsGold (10K-22K-24K - all karats), silver (sterling + 925), platinum, palladium, stainless steel, titanium, brass, copper, K-gold, ABS plastic (limited)
SoftwareEZCAD industry-standard software - design import (DXF/PLT/CDR/AI/BMP/JPEG/PNG); multi-language including Indian fonts; layer-based design; production database
Position PreviewRed guide laser indicates exact marking position before activation
Auto-FocusOptional auto-focus accessory for varying sample heights
Rotary DeviceOptional rotary device for ring marking (continuous text/patterns around ring circumference)
Fiber Source Life100,000+ hours (vs CO2 lasers 5,000-10,000 hours - significantly longer)
Cooling SystemAir cooling (no water chiller required) - simpler installation and maintenance versus water-cooled alternatives
Safety FeaturesClass 4 laser safety enclosure; safety interlocks; emergency stop button; protective goggles supplied
Power Consumption~400-700W operating depending on laser power variant
Power SupplyAC 220-240V 50Hz (Indian workshops)
ConnectivityUSB connection to PC running EZCAD software; standalone operation supported
Dimensions (Typical)~700×500×800mm enclosed cabinet design
Weight~50-90kg depending on configuration variant
PriceQuoted per configuration
Warranty1-year manufacturer warranty extendable to 2-3 years; free technical support and spare parts during warranty
InstallationComprehensive on-site installation and operator training by Semsons authorized technician
Annual Maintenance ContractAvailable covering preventive maintenance, lens cleaning, galvo mirror inspection, beam quality verification, priority spare parts (5-10% of equipment value annually)
Companion ProductsRotary device (ring marking), auto-focus accessory, fume extractor (for clean operation), protective goggles, replacement lenses
Service NetworkOn-site service across 16+ Indian cities via 450+ dealer network
Export MarketsUAE, USA, Canada, Hong Kong, Bangkok, Saudi Arabia, UK + 25 more
SupplierSemsons Tech - JMAIIE Excellence Awards winner, Since 1978

Power Variant Selection - Which Smart-2 Configuration Is Right for Your Operation?

  • 50W: premium production; deep engraving + high-volume production speed; industrial jewellery manufacturing; designer atelier signature mark engraving on premium pieces.
  • 60W+: industrial production; deep engraving + thin metal cutting capability; complex 3D engraving; production line integration in large-scale manufacturing.

Real-World Use Cases

  • Zaveri Bazaar jewellery showroom customer customisation service - premium showroom offers customer customisation (initials, dates, names on rings/pendants); Smart-2 enables high-margin customisation service; typical 30-60 second per piece marking
  • Mumbai BDB bullion bar/biscuit serial number engraving - bullion trader engraves serial numbers on bars/biscuits for tracking + authentication; permanent tamper-resistant marks support anti-counterfeiting
  • Chain-retail jewellery brand mark engraving - chain-retail brand engraves brand mark + design code + collection identifier on every piece; supports brand integrity + inventory tracking; production line integration
  • Jaipur traditional bridal showroom couple-name wedding ring engraving - bridal showroom offers couple-name engraving inside wedding rings (typically couple initials + wedding date); rotary device accessory enables continuous ring-circumference marking
  • Rajkot CMT and Coimbatore manufacturing brand mark engraving - CMT/manufacturing operations engrave brand mark on outgoing pieces for customer brand identification; high-volume production marking
  • Designer atelier signature mark engraving - designer atelier engraves designer signature on premium pieces; supports brand integrity and authenticity verification
  • Watch manufacturing watch-back engraving - watch manufacturer engraves serial numbers, brand marks, special edition markings on watch backs; precision marking on small surfaces
  • High-volume factory production line integration - large-scale jewellery factory integrates Smart-2 60W variant into production line; automated marking on outgoing pieces

Pricing, Installation & Support

Pricing is quoted per configuration depending on laser power variant (20W / 30W / 50W / 60W+) and marking area (110×110mm standard / 150×150mm extended). makes laser marking accessible to growing operations. Complete starter bundle pricing combining Smart-2 + computer with EZCAD software pre-installed + fume extractor (recommended for clean operation in showroom environments) + protective goggles + on-site installation + 1-2 day operator training. Comprehensive on-site installation by Semsons authorized technician - includes equipment setup, EZCAD software configuration, safety verification, initial test marking with customer samples. 1-year manufacturer warranty extendable to 2-3 years; free technical support and spare parts. Comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses (replacement lenses, galvo mirrors, focus lens, control board components). Annual maintenance contracts available covering preventive maintenance (lens cleaning, galvo mirror inspection, beam quality verification), priority spare parts supply (5-10% of equipment value annually). Optional accessory pricing: rotary device for ring marking; auto-focus accessory; fume extractor. Software updates for EZCAD throughout operational life. Trade-in program for operations upgrading from mechanical engraving or chemical etching to laser marking. Dealer-network on-site service across 16+ Indian cities. Wholesale enquiries on +91 80823 38010.

Why Buy Smart-2 from Semsons Tech

Semsons Tech is a JMAIIE Excellence Awards-winning manufacturer and supplier with 48 years in jewellery equipment, 16+ stores and warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Where Quality Speaks For Us - Since 1978.

Order Your Smart-2 Fiber Laser Marking Machine Today

Pair with the complete Semsons jewellery production and showroom workflow ecosystem across laser equipment (Smart-2 fiber laser marking + Laser Welding Machine - companion product for jewellery welding), gold testing (Signet FSDD + Portable XRF Gold Analyzer + Signet Si-PIN + Gold Coin Testing Machine), currency counting (Smart Plus CIS + Smart X Pro + complete counter range), diamond and gemstone tools (Carat Scale, Microscope, Diamond Tweezer, Gemology Instruments), casting and finishing workflow equipment (Wax Beads + Vacuum Wax Injectors + Vulcanizer + Investment Powder Mixer + Burnout Furnace + Vacuum Pressure Casting + complete finishing equipment), and complete jewellery manufacturing workflow equipment. Same-day dispatch from Mumbai and Rajkot warehouses across 16+ Indian cities.
