Vacuum Wax Injectors T4

Request a quote

Pricing depends on configuration, quantity and your requirements.

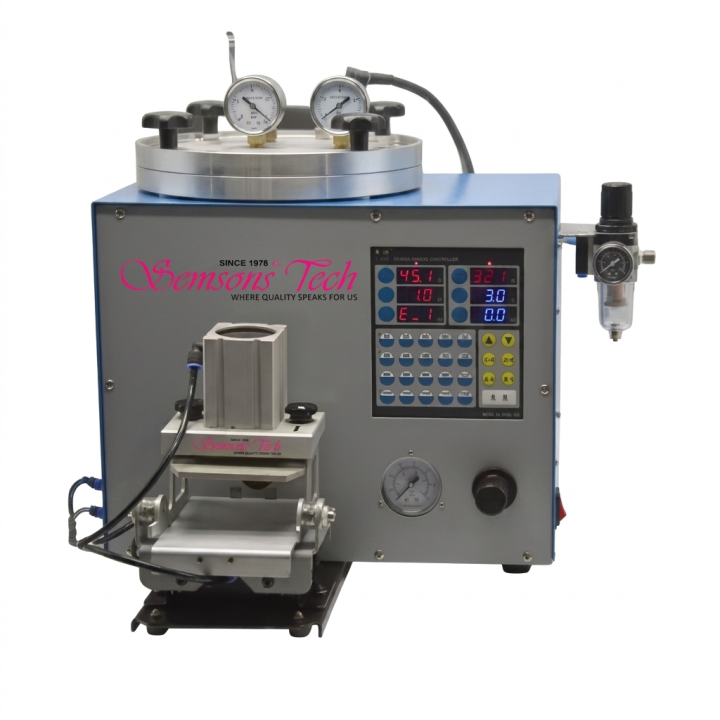

T4 Digital Vacuum Wax Injector by Semsons Tech - the standard workshop semi-automatic vacuum wax injection machine for moderate-volume jewellery casting operations. 3kg wax tank capacity with dual digital temperature control (separate nozzle and pot thermostats) at ±0.2°C accuracy. Vacuum chamber + auto-clamp + programmable injection/vacuum/hold timers support consistent production cycles. Standby timer 1-99 hours for production-efficiency pre-warmup. Compatible: all Ferris/GRS/SRS injection wax variants; gold, silver, platinum casting workflow. Temperature range 40-100°C. JMAIIE Excellence Awards-winning manufacturer and supplier since 1978.

Share your requirement and our team will send you pricing, availability and a quotation.

The Workshop-Standard Digital Vacuum Wax Injector - Production-Grade Semi-Automatic Wax Pattern Production for Moderate-Volume Casting Operations

Active casting operations need wax injection equipment delivering both consistent quality and production-grade reliability - without the capex of high-capacity (T4A) or fully-automated (robotic) tiers. The T4 Digital Vacuum Wax Injector is the workshop-standard semi-automatic vacuum wax injector sitting between entry tabletop (DVWI-1) and high-capacity (T4A) tiers: dual digital temperature control with ±0.2°C accuracy at both nozzle and wax pot eliminates viscosity-variation defects; vacuum chamber evacuates air from rubber mold cavity before wax injection (delivering bubble-free patterns on complex multi-stone settings and filigree); pneumatic auto-clamp with programmable clamp force eliminates manual clamp pressure variability; programmable injection, vacuum, and hold timers support reproducible cycle execution; standby timer 1-99 hours pre-warms wax overnight for morning production.

For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry. The T4 is the production-default for casting houses, designer ateliers producing moderate-volume commissions, lab-grown diamond brand mid-volume mount production, training institutes building production-grade curriculum equipment, and CMT operations requiring consistent semi-automatic wax injection without higher-tier capacity.

Core Engineering Advantages

  • Dual Temperature Control with ±0.2°C Accuracy: Separate digital thermostats for wax pot (bulk storage) and injection nozzle deliver precision temperature control independently at each stage. Why it matters: wax viscosity is temperature-dependent; consistent injection temperature ensures consistent mold-fill across production cycles. The independent nozzle thermostat compensates for temperature drops as wax travels from pot through nozzle to mold. Operating range: 40-100°C supporting standard injection wax (65-75°C) and specialty/white wax (90-100°C).
  • Vacuum Chamber Prevents Air Bubbles: Vacuum mode evacuates air from rubber mold cavity before wax injection begins. Critical for complex designs: multi-stone settings (air trapped near prong cavities creates defective patterns), filigree designs (fine geometry traps air), intricate designer pieces requiring complete cavity fill. Without vacuum, complex designs require multiple injection attempts. Programmable vacuum time matched to mold complexity via control panel.
  • Pneumatic Auto-Clamp with Programmable Force: Auto-clamp closes rubber mold around wax injection nozzle with consistent programmable clamp pressure - eliminates variable manual clamp pressure creating wax pattern variability in budget alternatives. Clamp opens automatically at cycle end allowing rapid mold cycling. Production advantage: cycle-to-cycle clamp consistency supports reproducible pattern quality across operator experience levels.
  • Programmable Timers for Reproducible Production: Vacuum timer (0.01-99 seconds), injection timer (0.1-99 seconds), and hold timer (cooling phase) support reproducible cycle execution. Standby timer 1-99 hours pre-warms wax overnight or before operator arrival - operator arrives at workshop with wax already at injection temperature, eliminating 30-60 minutes daily warmup time.
  • 3kg Wax Tank Capacity: Standard workshop capacity supporting 6-8 hour autonomy at typical production rate. For typical 8-hour shift: single morning refill supports near-full-shift production with minimal mid-shift interruption. Aluminum tank with fast/even thermal conductivity supports quick heating from cold start.
  • High-Pressure Cast Wax Cylinder: Cast cylinder construction delivers superior density and sealing versus welded alternatives - supports consistent pressure delivery across 10+ year operational life; reduces pressure-leak failure modes affecting budget alternatives.

Technical Specifications

Technical ParameterSpecification
ModelT4 - Digital Vacuum Wax Injector (workshop-standard semi-automatic)
TechnologyDigital vacuum wax injection with dual temperature control + auto-clamp + programmable timers
Wax Tank Capacity3kg - supports 6-8 hour autonomy at typical production rate
Wax Tank MaterialAluminum alloy - fast and even thermal conductivity; supports quick heating
Temperature ControlDual digital thermostats (separate for wax pot and injection nozzle); ±0.2°C accuracy
Temperature Range40-100°C (supports standard injection wax 65-75°C + specialty/white wax 90-100°C)
Vacuum SystemVacuum chamber evacuates mold cavity before injection; programmable vacuum time 0.01-99 seconds
Injection Pressure Range4-7 kg/cm² programmable; matched to mold type
Injection TimeProgrammable 0.1-99 seconds
Auto-ClampPneumatic auto-clamp with programmable clamp force
Standby Timer1-99 hour programmable heating schedule (pre-warm before operator arrival)
Wax CylinderHigh-pressure cast cylinder - superior density and sealing for operational longevity
Pressure RegulatorPressure gauge + regulator + safety valve
Power450-550W
Power Supply220-240V single-phase 50Hz (Indian workshops)
Compressed Air SupplyExternal air compressor required (typical 6-8 bar workshop supply) - for pneumatic clamp and vacuum system
Dimensions (Typical)~450×310×450mm
Weight~15-18kg
Compatible Wax VariantsAll standard injection wax (Ferris Magna-Ject, GRS, SRS, Castaldo) + specialty harder/white waxes
Compatible Casting Metals (Downstream)Gold (10K-22K), silver (sterling + 925), platinum, K-gold, brass, stainless steel
PriceQuoted per configuration
Warranty1-year manufacturer warranty with free technical support and spare parts
InstallationOn-site installation and operator training by Semsons authorized technician
Companion ProductsWax Beads (Ferris/GRS/SRS premium injection wax), Vulcanizer (rubber mold creation), air compressor + vacuum pump
Service NetworkOn-site service across 16+ Indian cities via 450+ dealer network
Export MarketsUAE, USA, Canada, Hong Kong, Bangkok, Saudi Arabia, UK + 25 more
SupplierSemsons Tech - JMAIIE Excellence Awards winner, Since 1978

T4 vs DVWI-1 vs T4A - Which Should You Choose?

  • Choose DVWI-1: designer ateliers; training institutes; tabletop footprint; entry-tier 3.5kg capacity with memory function.
  • Choose T4: workshop-standard semi-automatic; 3kg aluminum wax tank with fast thermal conductivity; production-grade reliability without high-capacity capex.
  • Choose T4A: high-capacity 5L for full-shift autonomy; 15-20 slot memory for multi-product-line operations.
  • Upgrade to Automatic Robotic: for high-volume factories that want automated mould handling and a stored recipe for every mould.

Pricing, Installation & Support

Indian market pricing is quoted per configuration. Complete starter bundle pricing combining T4 + Wax Beads (Ferris/GRS/SRS premium injection wax - 5-10kg initial supply) + air compressor + vacuum pump + operator training. On-site installation by Semsons authorized technician - includes electrical and compressed air supply integration, vacuum system testing, first-cycle validation across customer's production mold mix. Operator training covering machine operation, programmable timer setup, wax temperature optimisation per variant, troubleshooting, and complete workflow integration. 1-year manufacturer warranty with free technical support and spare parts. Comprehensive spare parts supply with. Dealer-network service across 16+ Indian cities. Wholesale enquiries on +91 80823 38010.

Why Buy T4 from Semsons Tech

Semsons Tech is a JMAIIE Excellence Awards-winning manufacturer and supplier with 48 years in jewellery equipment, 16+ stores and warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Semsons supplies the T4 with dual digital temperature control ±0.2°C accuracy, vacuum chamber with programmable timer, pneumatic auto-clamp with programmable force, aluminum wax tank for fast thermal conductivity, standby timer 1-99 hours for production-efficiency warmup, high-pressure cast cylinder for operational longevity, on-site installation and operator training, 1-year warranty, comprehensive spare parts supply with, and complete workflow integration consultation. For workshop-standard semi-automatic wax injection where pattern quality directly determines casting quality, supplier accountability and equipment quality matter far more than upfront capex savings. Where Quality Speaks For Us - Since 1978.

Order Your T4 Today

For pricing across configuration variants, complete starter bundle (T4 + wax + compressor + vacuum pump + training), complete workflow bundle pricing combining T4 with paired equipment (Wax Beads premium injection wax, Vulcanizer for rubber mold creation, downstream Investment Powder Mixer + Burnout Furnace + Vacuum Casting Machine + Tree Cutting Machine + complete finishing equipment), international export, or technical consultation, WhatsApp our sales desk on +91 98216 12340 or wholesale on +91 80823 38010. Pair with the complete Semsons jewellery production workflow ecosystem across upstream Wax Beads + Vulcanizer, casting (Investment Powder Mixer, Burnout Furnace, Induction Melters, Vacuum Casting Machine, Water Jet Machine, Tree Cutting Machine), finishing (Foredom Motors, Polishing Machines, Electro Polishing Machine, Tumbler Polishing Machine, Filing Table), welding (Earring Post Welding Machine), cleaning (Ultrasonic Cleaner + Diamond Bright Solutions), and plating (Rhodium Plating Machine + plating solution ranges).
