Vacuum Wax Injectors T4A

Request a quote

Pricing depends on configuration, quantity and your requirements.

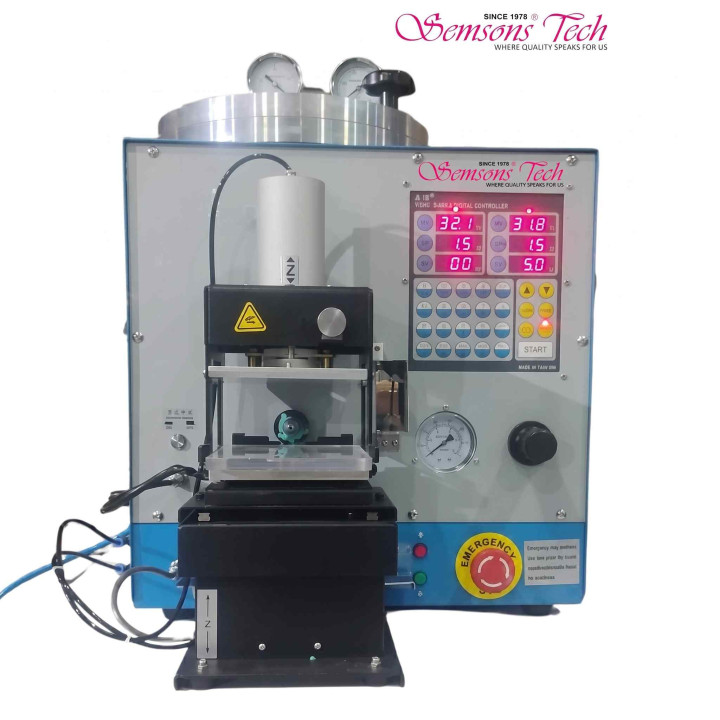

T4A Digital Vacuum Wax Injector by Semsons Tech - the high-capacity 5-litre semi-automatic wax injection machine engineered for medium-to-high production volume operations. Larger wax tank capacity than entry DVWI-1 supports 10-12 hour autonomy between refills - full-shift unattended capability. Dual digital temperature control (separate nozzle and pot thermostats) ±0.2°C accuracy. Vacuum chamber + two-stage injection + auto-clamp + memory function for consistent production cycles. Compatible: all Ferris/GRS/SRS injection wax variants; gold, silver, platinum casting workflow. Temperature range 40-100°C. JMAIIE Excellence Awards-winning manufacturer and supplier since 1978.

Share your requirement and our team will send you pricing, availability and a quotation.

The High-Capacity Digital Vacuum Wax Injector - 5-Litre Capacity for Medium-to-High Volume Production with Full-Shift Autonomy

Growing casting operations face a workflow bottleneck: entry-tier wax injectors with 3-3.5kg wax capacity require refills every 6-8 hours - multiple refill interruptions per shift disrupt production rhythm and limit daily throughput. The T4A Digital Vacuum Wax Injector addresses this scaling problem through 5-litre wax tank capacity supporting 10-12 hour autonomy - full-shift unattended capability for moderate-to-high volume operations. All the production-grade engineering of entry vacuum injectors plus the throughput economics of higher capacity: dual digital temperature control with ±0.2°C accuracy at both nozzle and pot, vacuum chamber preventing air bubbles, two-stage injection (Press 1 primary + Press 2 secondary) minimising wax shrinkage, pneumatic auto-clamp with programmable force, and memory function storing 10-20 mold-specific parameter combinations.

For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry. The T4A is the production-default for active casting houses, chain-retail wholesale operations transitioning from entry to higher-volume workflow, lab-grown diamond brand mass-production mount operations, designer ateliers running multi-shift production rhythm, and CMT operations requiring full-shift wax injection autonomy.

Core Engineering Advantages

  • 5-Litre Wax Tank Capacity - Full-Shift Autonomy: Significantly larger tank than entry DVWI-1 (3.5kg) supports 10-12 hour wax autonomy at typical production rate. Production economics impact: single morning refill supports full 8-10 hour shift without interruption; eliminates 30-60 minutes daily lost to refill cycles and warmup re-stabilisation. For multi-shift operations, single refill spans entire shift handover supporting continuous production rhythm.
  • Dual Temperature Control with ±0.2°C Accuracy: Separate digital thermostats for wax pot and injection nozzle deliver precision temperature control. Why this matters: wax viscosity is temperature-dependent; consistent injection temperature ensures consistent mold-fill across thousands of cycles per day. The independent nozzle thermostat compensates for temperature drops as wax travels from pot through nozzle. Operating range: 40-100°C supporting standard injection wax (65-75°C) and specialty white wax (90-100°C).
  • Vacuum Chamber + Two-Stage Injection: Vacuum mode evacuates air from rubber mold cavity before wax injection - eliminates air bubbles in complex multi-stone settings, filigree, and intricate designer detail. Two-stage injection (Press 1 primary fills cavity + Press 2 secondary compensates for cooling shrinkage) delivers dimensionally accurate patterns matching master model. Programmable vacuum time and injection pressure matched to mold type.
  • Auto-Clamp Mechanism with Memory Function: Pneumatic auto-clamp closes rubber mold around wax injection nozzle with consistent programmable clamp pressure. 10-20 slot memory function (higher slot count than entry DVWI-1) stores parameter combinations per mold type - operations producing 15-20 product lines manage complete recipe library; single button-press selects mold-specific recipe; eliminates parameter-input errors and inter-operator variability.
  • Programmable Timers for Production Standardisation: Vacuum timer (0.01-99 seconds), injection timer (0.1-99 seconds), hold timer (cooling phase), and standby timer (1-99 hour pre-warmup schedule) support reproducible cycle execution. Standby timer pre-warms wax overnight or during shift transitions - operator arrives at workshop with wax at injection temperature, eliminating warmup waiting.
  • High-Pressure Cast Wax Cylinder: Higher-density cast cylinder construction delivers superior sealing and pressure consistency versus welded alternatives. Operational impact: consistent pressure delivery across years of professional duty supports stable wax pattern quality; reduces pressure-leak failure modes that affect budget alternatives within 1-2 years.

Technical Specifications

Technical ParameterSpecification
ModelT4A - High-Capacity Digital Vacuum Wax Injector (semi-automatic)
TechnologyDigital vacuum wax injection with dual temperature control + two-stage injection + auto-clamp + memory function
Wax Tank Capacity5 litres (~5kg) - supports 10-12 hour autonomy at typical production rate
Temperature ControlDual digital thermostats (separate for wax pot and injection nozzle); ±0.2°C accuracy
Temperature Range40-100°C (supports standard injection wax 65-75°C + specialty/white wax 90-100°C)
Vacuum SystemVacuum chamber evacuates mold cavity before injection; programmable vacuum time 0.01-99 seconds
Injection SystemTwo-stage injection (Press 1 primary + Press 2 secondary); minimises wax shrinkage
Injection Pressure Range4-7 kg/cm² programmable; matched to mold type via memory recipe
Injection TimeProgrammable 0.1-99 seconds
Auto-ClampPneumatic auto-clamp with programmable clamp force
Memory Function10-20 mold-specific parameter sets stored
Standby Timer1-99 hour programmable heating schedule (pre-warm before operator arrival)
Wax CylinderHigh-pressure cast cylinder - superior density and sealing for operational longevity
Power600-800W
Power Supply220-240V single-phase 50Hz (Indian workshops)
Compressed Air SupplyExternal air compressor required (typical 6-8 bar workshop supply) - for pneumatic clamp and vacuum system
Dimensions (Typical)~500×350×500mm (larger than DVWI-1 to accommodate 5L wax tank)
Weight~20-25kg
Compatible Wax VariantsAll standard injection wax (Ferris Magna-Ject, GRS, SRS, Castaldo) + specialty harder/white waxes
Compatible Casting Metals (Downstream)Gold (10K-22K), silver (sterling + 925), platinum, palladium, brass, copper
PriceQuoted per configuration
Warranty1-year manufacturer warranty with free technical support and spare parts
InstallationOn-site installation and operator training by Semsons authorized technician
Companion ProductsWax Beads (Ferris/GRS/SRS premium injection wax), Vulcanizer (rubber mold creation), air compressor + vacuum pump
Service NetworkOn-site service across 16+ Indian cities via 450+ dealer network
Export MarketsUAE, USA, Canada, Hong Kong, Bangkok, Saudi Arabia, UK + 25 more
SupplierSemsons Tech - JMAIIE Excellence Awards winner, Since 1978

T4A vs DVWI-1 - Which Should You Choose?

  • Choose DVWI-1: designer ateliers; training institutes; budget-constrained moderate-volume operations; 3.5kg wax capacity sufficient.
  • Choose T4A: active casting houses transitioning from entry to growth-stage volume; multi-shift production rhythm needing full-shift autonomy; operations producing 15-20 product lines (memory function expansion).
  • Upgrade to Automatic Robotic: for high-volume factories that want automated mould handling and a stored recipe for every mould.

Pricing, Installation & Support

Indian market pricing is quoted per configuration. Complete starter bundle pricing combining T4A + Wax Beads (Ferris/GRS/SRS premium injection wax - 10-15kg initial supply) + air compressor + vacuum pump + operator training. Upgrade-trade-in program for operations transitioning from DVWI-1 to T4A - existing equipment evaluated and credit applied to new T4A purchase. On-site installation by Semsons authorized technician - includes electrical and pneumatic supply integration, vacuum system testing, recipe library initial programming, first-cycle validation. Operator training covering machine operation, memory function programming (15-20 recipes), production throughput optimisation, troubleshooting, and complete workflow integration. 1-year manufacturer warranty with free technical support and spare parts. Comprehensive spare parts supply with. Dealer-network service across 16+ Indian cities. Wholesale enquiries on +91 80823 38010.

Why Buy T4A from Semsons Tech

Semsons Tech is a JMAIIE Excellence Awards-winning manufacturer and supplier with 48 years in jewellery equipment, 16+ stores and warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Semsons supplies the T4A with 5-litre wax tank capacity for full-shift autonomy, dual digital temperature control ±0.2°C accuracy, vacuum chamber with programmable timer, two-stage injection minimising wax shrinkage, 15-20 slot memory function for multi-product-line operations, pneumatic auto-clamp with programmable force, standby timer for production-efficiency warmup, high-pressure cast cylinder for operational longevity, on-site installation and operator training, 1-year warranty, comprehensive spare parts supply with, upgrade-trade-in program for DVWI-1 buyers transitioning to higher capacity, and complete workflow integration consultation. For growth-stage casting operations where wax pattern quality and production throughput directly determine daily casting economics, supplier accountability and equipment quality matter far more than upfront capex savings. Where Quality Speaks For Us - Since 1978.

Order Your T4A Today

For pricing across configuration variants, complete starter bundle (T4A + wax + compressor + vacuum pump + training), upgrade-trade-in program for DVWI-1 buyers, multi-machine bundle pricing for parallel-production operations, complete workflow bundle pricing combining T4A with paired equipment (Wax Beads premium injection wax, Vulcanizer for rubber mold creation, downstream Investment Powder Mixer + Burnout Furnace + Vacuum Casting Machine + Tree Cutting Machine + complete finishing equipment), international export, or technical consultation, WhatsApp our sales desk on +91 98216 12340 or wholesale on +91 80823 38010. Pair with the complete Semsons jewellery production workflow ecosystem across upstream Wax Beads + Vulcanizer, casting (Investment Powder Mixer, Burnout Furnace, Induction Melters, Vacuum Casting Machine, Water Jet Machine, Tree Cutting Machine), finishing (Foredom Motors, Polishing Machines, Electro Polishing Machine, Tumbler Polishing Machine, Filing Table), welding (Earring Post Welding Machine), cleaning (Ultrasonic Cleaner + Diamond Bright Solutions), and plating (Rhodium Plating Machine + plating solution ranges).
