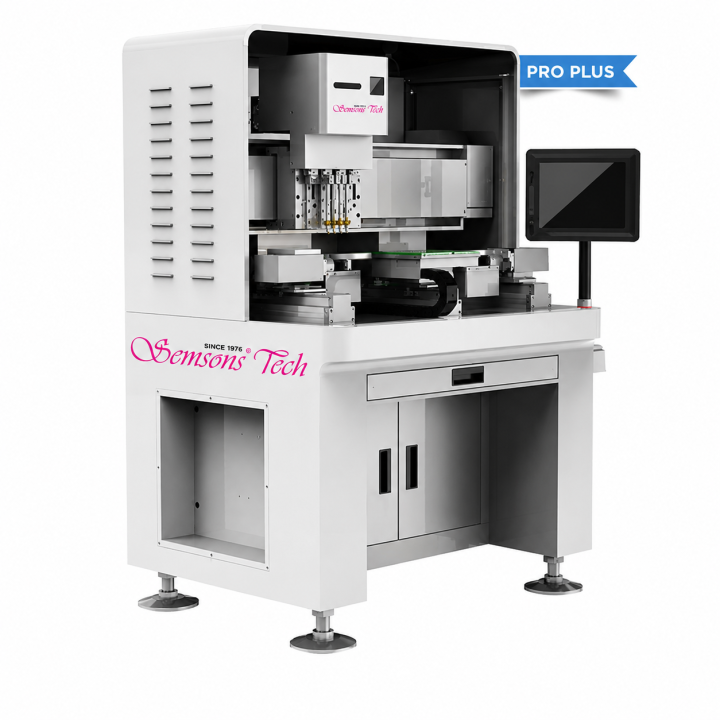

Semsons Tech X4 Pro Plus — Double Station Automatic Wax Setting Machine
Sets 12,000 stones per hour across both stations, giving you 20% more production than a conventional setting machine.
✔ 4 trays hold 12,800 stones at a time — runs long without refilling
✔ Set up to 8 colours or sizes — or a combination of both, in one run
✔ Better gloss and fire than hand-set stones
✔ Works with gold, silver, brass and other metals
✔ Runs on normal single-phase power — no three-phase needed
✔ Does the work of 10–12 skilled setters
Easy to operate from a touchscreen. On-site installation and operator training included. Service across 16+ Indian cities.
WhatsApp +91 98216 12340 · Semsons Tech, since 1978.
Talk to our team about specifications, a demo, or installation.
Add to cart to reserve this machine — you pay the booking amount now, and our team confirms the balance, delivery and installation with you.
Security policy
Delivery policy
Return policy
Two stations. Four trays. 12,000 stones every hour.
The X4 Pro Plus sets stones automatically so your production never stops. One station keeps working while the other is being loaded and unloaded — so there is no waiting between batches. This is what gives you 20% more production capacity than a conventional setting machine.
Everything is controlled from one touchscreen. Choose the design, load the tray, press start. There is no complicated programming and your operator does not need a technical background. Our engineers install the machine at your workshop and train your operators until they can run it on their own with confidence.
| Feature | What You Get |
|---|---|
| ⚡ 12,000 Stones / Hour | Across all stations — 20% more capacity than a conventional machine |
| ⚙️ Double Station | Load one station while the other keeps setting — no downtime between batches |
| 📦 4-Tray Feeding | Holds 12,800 stones at a time — far fewer stops to refill |
| 🎨 Multicolour / Size | Set up to 8 colours or 8 sizes — or a combination of both in one run |
| ✨ Better Finish | Stones set by machine have better gloss and fire than hand-set stones |
| 🎯 ±0.02 mm Accuracy | Every stone lands exactly where it should, on every piece |
| 🔄 5-Axis, 540° Motion | Handles 99% of jewellery styles in the market |
| 🥇 All Metals | Gold, silver, brass and other jewellery metals |
| 🔌 Single-Phase Power | Runs on normal 220V supply — no three-phase connection needed |
| 👥 Replaces 10–12 Setters | Solves setter shortage and keeps quality the same on every piece |
| 🖥️ Easy Touchscreen | Simple to learn, simple to run — full operator training included |
| 🛠️ Quick Support | Genuine spare parts and service across 16+ Indian cities |
Stones set by the X4 Pro Plus have better gloss and fire than stones set by hand. The reason is simple: the machine places every stone at exactly the same depth and the same angle, so light enters and reflects the same way across the whole piece. In hand setting, small differences creep in from piece to piece — especially over a long run, when the setter gets tired. The machine does not get tired.
You are not limited to one stone type per job. The X4 Pro Plus can set up to 8 different colours, 8 different sizes, or a combination of both in the same run. This means multicolour and mixed-size designs go through in a single setup instead of multiple passes.
Gold, silver, brass and other jewellery metals — the same machine handles all of them, covering 99% of the jewellery styles in the market, from simple rings to complex multi-stone designs.
| Parameter | Specification |
|---|---|
| Model | X4 Pro Plus (Double Station) |
| Setting Speed | 12,000 stones per hour across all stations |
| Production Capacity | 20% more than a conventional setting machine |
| Stone Feeding | 4-tray continuous feeding system with capacity of holding 12,800 stones at a time |
| Multicolour / Size Option | Can set up to 8 colours / sizes, or a combination of both |
| Spot Accuracy | ±0.02 mm |
| Suction Nozzles | 4 nozzles |
| Motion Control | 5-axis, 540° rotation |
| Style Compatibility | 99% of market jewellery styles |
| Metals Supported | Can be used for gold, silver, brass and other metals |
| Control System | Semsons NC control, servo drive, touchscreen |
| Transmission | High-precision screw guide |
| Chassis | 850 kg — stays steady and vibration-free at full speed |
| Dimensions | 950 × 750 × 1400 mm |
| Power Supply | Single phase, 220V 50Hz, 3 kVA peak power |
| Labour Replaced | 10–12 skilled manual setters |
| Warranty | 12 months, extendable |
Is the machine difficult to operate?
No. Everything runs from one touchscreen — choose the design, load the tray, press start. Your operator does not need a technical background. We train your team on site until they are running it confidently on their own.
How fast does it set stones?
12,000 stones per hour across all stations. That is about 20% more capacity than a conventional setting machine, mainly because the double station removes waiting time between batches.
How many stones can I load at one time?
The four-tray continuous feeding system holds 12,800 stones at a time, so the machine runs a long stretch before anyone has to refill it.
Can it set different colours or sizes in the same job?
Yes — up to 8 colours, 8 sizes, or a combination of both in a single run. Multicolour designs go through in one setup instead of several passes.
What power connection do I need?
Just a normal single-phase 220V supply with 3 kVA peak power. No three-phase connection required, so it installs in almost any workshop.
Is machine setting really better than hand setting?
For finish, yes. Machine-set stones show better gloss and fire because every stone sits at exactly the same depth and angle. Hand setting varies from piece to piece, especially on long runs when the setter gets tired.
Which metals can I use?
Gold, silver, brass and other jewellery metals — the same machine handles all of them.
How many workers does it replace?
It does the work of 10–12 skilled manual setters, with the same quality on every single piece.
What kind of jewellery can it handle?
99% of the styles in the market — simple rings through to complex multi-stone designs — thanks to 5-axis 540° motion.
How much floor space do I need?
The machine is 950 × 750 mm and 1400 mm tall. Leave walking space on both sides so operators can reach both stations comfortably.
Will it shake or vibrate at full speed?
No. The 850 kg chassis keeps the machine completely steady, which is what protects setting accuracy at high speed.
What happens after I buy it?
Our engineers install the machine at your workshop, train your operators, and stay available for quick support. Genuine spare parts and service across 16+ Indian cities.
Do you offer financing?
Yes — EMI financing is available through our partner banks. Talk to our team for the current options.
On-site installation and operator training included. EMI financing available through partner banks. Delivery in 30 days; dispatch from Mumbai. 12-month warranty, extendable with AMC. Genuine spare parts with quick support.
