Semsons Tech Reference NOZZLE-502
Semsons Tech Suction Nozzles 502 to 504 - for Automatic Wax Setting Machines
Price per nozzle
₹360
Inclusive of 18% GST (₹305.08 + ₹54.92 GST)
Code NOZZEL100: ₹2,000 off when one order has 21 nozzles or more
Free delivery anywhere in India. Dispatch in about 1–2 days.
The small tip that picks each stone from the sorting tray and places it in the wax. Choose it by the size of your round stones, from 0.8 mm to 3.0 mm. Sold per nozzle, one price for every size.
✔ Five sizes - 502, 502B, 503, 503B and 504, for 0.8 to 3.0 mm stones
✔ Matching tray - each size works with a DSSMT or SSMWT sorting tray
✔ Fits - X4 Pro Plus, Pro Mini and ST-HDSSM machines
✔ Dispatch - in about 1–2 days, free delivery anywhere in India
✔ Bulk coupon - NOZZEL100 on orders of 21 nozzles or more
✔ No returns - a nozzle with a verified manufacturing defect is replaced
WhatsApp +91 98216 12340 to check the right size before you order.
Security policy
Delivery policy
Return policy

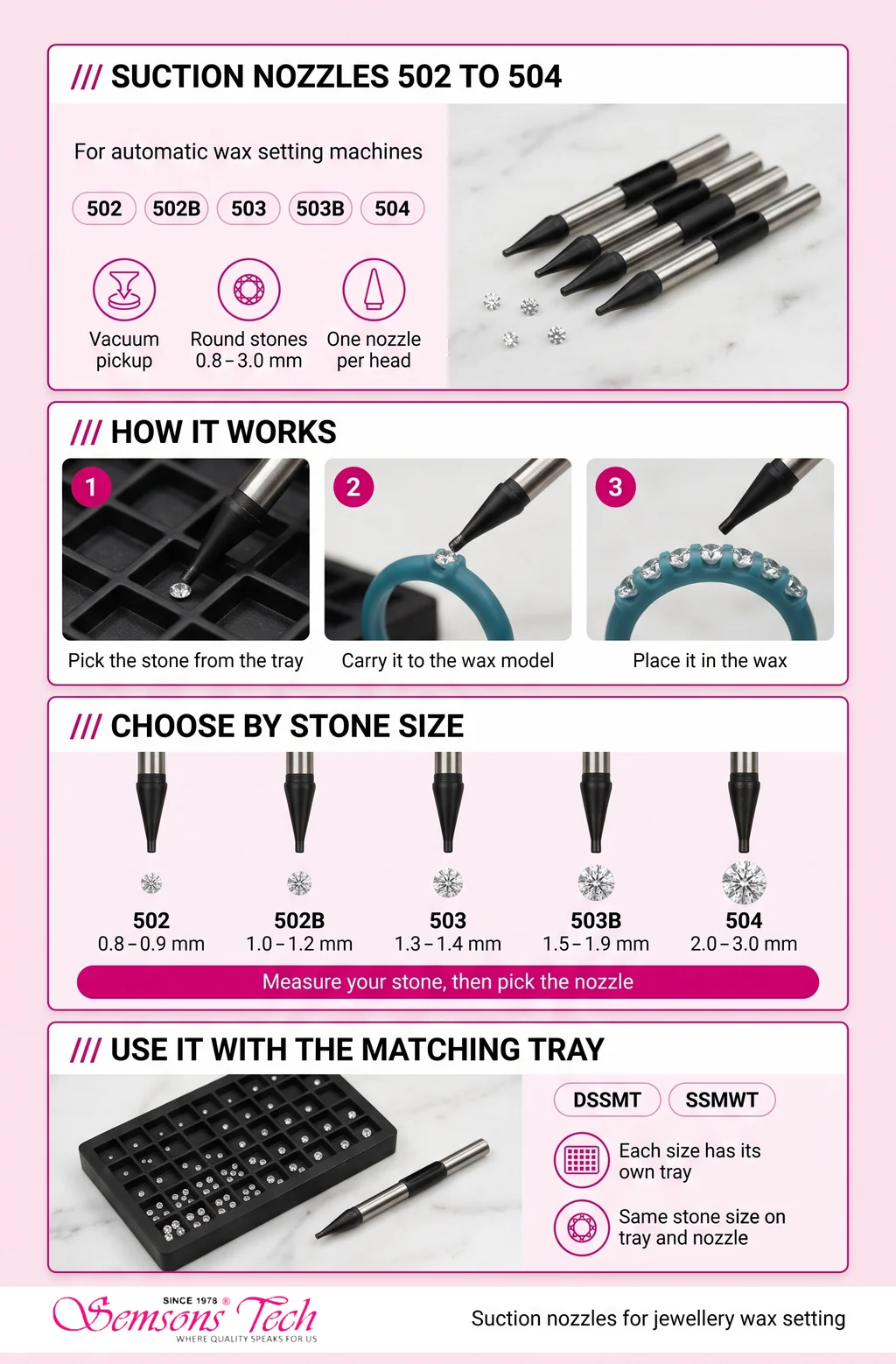

Five sizes for round stones from 0.8 mm to 3.0 mm.
A suction nozzle is the small tip on each head of an automatic diamond wax setting machine. It holds one stone by vacuum, carries it from the sorting tray to the wax model and places it there. Each nozzle size suits one band of stone sizes.
| Nozzle | Stone size and matching tray |
|---|---|
| 502 | 0.8 – 0.9 mm · DSSMT-01 or DSSMT-01L, tray nos. 08-09 |
| 502B | 1.0 – 1.2 mm · DSSMT-01 or DSSMT-01L, tray nos. 10-11-12 |
| 503 | 1.3 – 1.4 mm · DSSMT-02 or SSMWT-02, tray nos. 13-14 |
| 503B | 1.5 – 1.9 mm · DSSMT-02 and DSSMT-03, or SSMWT-02 and SSMWT-03 |
| 504 | 2.0 – 3.0 mm · DSSMT-04 and DSSMT-05, or SSMWT-04 and SSMWT-05 |
Each size is a separate line in the cart, so different sizes can go in one order. The diamond sorting trays are sold separately, and the tray and nozzle selector has the full chart.
Every size fits the Semsons Tech automatic wax setting machines. Each head takes one nozzle.
| Machine | Nozzles on the machine |
|---|---|
| Pro Mini - single station | 3 |
| X4 Pro Plus - double station | 4 |
| ST-HDSSM - double station, double head | 8 |
For a machine from another maker, WhatsApp us a photo of the nozzle you use now and your stone size. We will tell you before you order whether ours fits.
| Parameter | Specification |
|---|---|
| Brand | Semsons Tech |
| Nozzle Designation | Available as 502, 502B, 503, 503B and 504 |
| Product codes | SSMN-01 (502), SSMN-02 (502B), SSMN-03 (503), SSMN-04 (503B), SSMN-05 (504) |
| Diamond Size Range | 0.8 mm – 3.0 mm round stones, by nozzle |
| Pickup Method | Vacuum suction through the tip aperture |
| Construction | Precision-machined steel tip with rubber sealing sleeve on a stainless shaft |
| Compatible machines | X4 Pro Plus, Pro Mini and ST-HDSSM automatic wax setting machines |
| Sold As | Individual nozzle (single unit) |
| Wear Class | Consumable wear item - replace when pickup consistency drops |
A nozzle wears slowly. Replace it when you see:
Before you replace it, clear the tip with clean, dry air. Dust or wax inside the tip also causes missed stones.
| Term | Detail |
|---|---|
| Price | Same for all five sizes, per nozzle, including 18% GST |
| Bulk coupon | Code NOZZEL100 takes ₹2,000 off the nozzles when one order holds 21 or more, any mix of sizes |
| Quantity | 1 to 1,000 nozzles per order |
| Dispatch | In about 1–2 days |
| Delivery | Free anywhere in India; checkout shows the courier time, 3 to 5 business days |
| Returns | Not accepted for this product |
| Manufacturing defect | The nozzle is replaced once the defect is verified |
The coupon is ₹2,000 off the nozzles in total, not off each nozzle. It is not added for you: from 21 nozzles the cart shows the code, and you apply it in the promo code box. It cannot be combined with another code.
Measure the diameter of the round stones you set and find that size in the table above. The same row names the tray to use with it.
The 502 picks 0.8–0.9 mm stones, the 502B 1.0–1.2 mm, the 503 1.3–1.4 mm, the 503B 1.5–1.9 mm and the 504 2.0–3.0 mm.
The 502 and 502B use DSSMT-01 or DSSMT-01L. The 503 uses DSSMT-02 or SSMWT-02. The 503B uses DSSMT-02 and DSSMT-03, or SSMWT-02 and SSMWT-03. The 504 uses DSSMT-04 and DSSMT-05, or SSMWT-04 and SSMWT-05.
Only the sizes in its own band. The tip seals against one range of stone diameters. A stone that is too small does not lift, and one that is too large leaks vacuum and drops on the way.
One for each head that runs that stone size. The Pro Mini has 3 nozzles, the X4 Pro Plus 4 and the ST-HDSSM 8.
We confirm the fit for our own machines. For any other machine, WhatsApp us a photo of your current nozzle and your stone size before you order.
The usual causes are a tip blocked with dust or wax, stones outside the nozzle's size band, or a worn tip or sleeve. Clear the tip with clean, dry air and check the stone size; if it still drops stones, replace the nozzle.
There is no fixed interval: it depends on running hours, your stones and your air supply. Replace it when the signs under When to Replace It appear. Workshops running full shifts keep spares of the sizes they use most.
Yes. When one order holds 21 nozzles or more, code NOZZEL100 takes ₹2,000 off the nozzles. An order of exactly 20 does not qualify. Apply the code in the cart's promo code box.
Yes. All five sizes count together, so 10 of the 502 and 11 of the 503 qualify. Each size stays a separate line in the cart, on the order and on the invoice.
From 1 to 1,000 nozzles in one order, subject to stock. You can place another order later.
Yes. The price shown is per nozzle, includes 18% GST and is the same for all five sizes. The tax invoice shows the amount before GST and the GST separately.
In about 1–2 days. Delivery is free anywhere in India, and checkout shows the courier time.
Returns are not accepted for this product. If a nozzle has a manufacturing defect, WhatsApp us your order number; once the defect is verified, the nozzle is replaced.
Not sure which size you need? WhatsApp us your machine model and stone size, and we will confirm the nozzle before dispatch. For larger or regular orders, our wholesale desk can help.
Sales: WhatsApp +91 98216 12340 | Wholesale & bulk orders: WhatsApp +91 80823 38010
