Semsons Tech Reference ST810
Model ST810 · 900 notes a minute · UV, MG, IR and DD detection
Festival Season Offer
₹5,399
MRP ₹8,999 · 40% off
Inclusive of 18% GST (₹4,575.42 + ₹823.58 GST)
Free delivery anywhere in India. Dispatch within 2 days.
A Semsons Tech note counting machine for shops, cash counters and offices that count cash every day. Place notes in the hopper, and it counts them and checks each note as it passes.
✔ 900 notes a minute - rated counting speed
✔ 130-note hopper - a full 100-note bundle in one load
✔ UV, MG, IR and DD - four checks while counting
✔ Half, chained and double notes - detected while counting
✔ Batch and Add - bundles of 100 or a running total
✔ 1-year warranty - checked before dispatch
Security policy
Delivery policy
Return policy

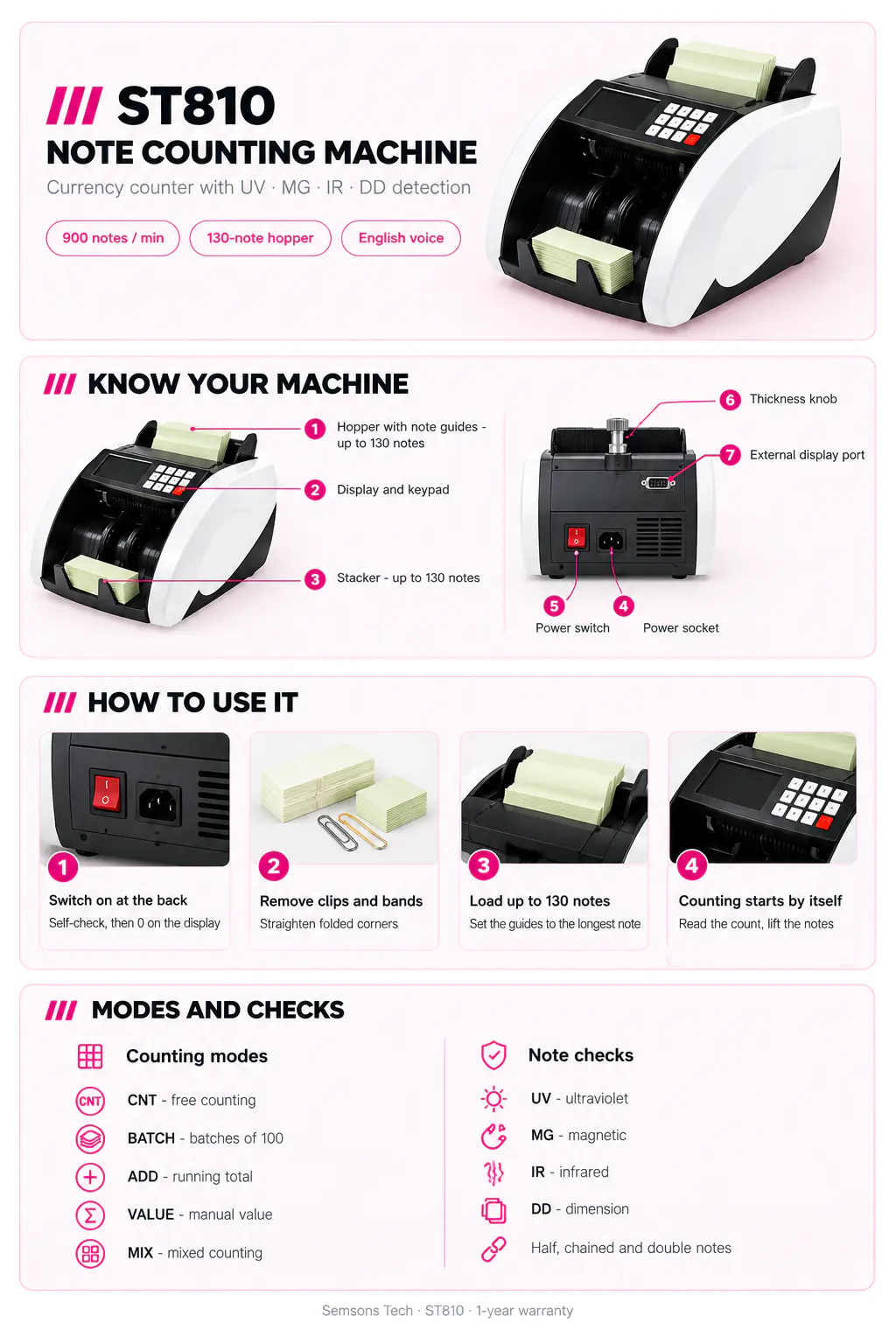

Product guide
A one-page visual guide and a video of the machine at work.
Counts up to 900 notes a minute and checks each note with UV, MG, IR and DD detection as it passes.
A note counting machine counts a stack of banknotes for you and checks each note for signs of a fake. The ST810 does it at up to 900 notes a minute, with ultraviolet, magnetic, infrared and size checks. You place the notes in the hopper, the machine starts by itself, and the count shows on the display. It sits on a shop counter, a cash desk or an office table.
Counting by hand works for a few notes. At closing time, on a busy counter or with a full day's collection, it costs time and lets mistakes through.
| Counting by hand | With the ST810 |
|---|---|
| Note by note, often twice to be sure | Up to 900 notes a minute, so a 100-note bundle passes through in under 10 seconds |
| A long count can be off by a note or two | A sensor counts every note, and the half-note, chained-note and double-note checks catch the notes that throw a count off |
| A fake note is caught only if someone looks closely | With UV, MG and IR switched on, every note is checked and the machine stops on a suspect one |
| Bundles of 100 are counted out one at a time | BATCH stops at 100 notes (the preset), ready for a band |
| Several stacks mean adding totals on paper | ADD keeps a running total across stacks |
| The cashier is tied up counting | The machine counts while the cashier checks the result |
Rollers draw the notes from the hopper one by one and pass each note over the sensors. A counting sensor records every note. The UV sensor checks the paper under ultraviolet light, the MG sensor looks for the magnetic ink genuine notes carry, the IR sensor checks the note under infrared light, and the DD sensor checks its size. When a check finds a suspect note, the machine stops and shows a code so you can take that note out. Counted notes collect in the stacker at the front.
| Check | What it looks at |
|---|---|
| UV (ultraviolet) | Fake notes are often printed on white or bleached paper that glows under ultraviolet light |
| MG (magnetic) | The magnetic ink that genuine notes carry |
| IR (infrared) | Features of the note that show under infrared light |
| DD (dimension) | The size of each note |
| Half, chained and double notes | A torn half note, notes stuck together in a chain, and two notes passing as one |
These checks help you catch a suspect note while you count. When one finds a problem, the machine stops and shows a code. No counting machine catches every counterfeit, so check any note it stops on by hand before you accept it.
| Specification | Details |
|---|---|
| Model | ST810 |
| Type | Currency and note counting machine (bill counter with value counting) |
| Counting speed | 900 notes per minute |
| Hopper capacity | 130 notes |
| Stacker capacity | 130 notes |
| Counterfeit detection | UV, MG, IR and DD (dimension) |
| Note checks | Half-note, chained-note and double-note detection |
| Counting modes | Free (CNT), Mixed (MIX), Value (manual), Add, Batch |
| Batch size | Preset 100 notes |
| Start | Automatic or manual (AUTO/MANUAL key) |
| Voice | English voice prompts, on or off |
| Currency selection | Yes (CUR key) |
| Self-check | Automatic at switch-on |
| Ports | External display port |
| Power supply | 110–240 V, 50 Hz |
| Power consumption | Under 45 W |
| Dimensions | 290 × 250 × 175 mm |
| Net weight | 4.1 kg |
| Brand | Semsons Tech |
| Warranty | 1 year from the invoice date |
| Dispatch | Within 2 days of the order |
| Key or mode | What it does |
|---|---|
| CNT | Free counting. Counts every note with the counterfeit checks switched off. |
| MIX | Mixed counting (MIX on the display). |
| VALUE | Manual value counting. You enter the value of the notes and the machine sums it up. It does not read the denomination by itself. |
| ADD | Running total. Each new stack is added to the last count instead of starting again from zero. |
| BATCH | Counts in batches. The preset batch is 100 notes. |
| MG/UV | Magnetic (MG) and ultraviolet (UV) checks on or off. |
| MT | Edge magnetic check on or off. |
| AUTO/MANUAL | Start counting automatically, or with the START key. |
| VOICE | English voice prompts on or off. |
| CUR | Currency selection. |
| FUNC | Function selection. |
| CLEAR | Clears the count. |
| + and − | Change a number in the settings menu. |

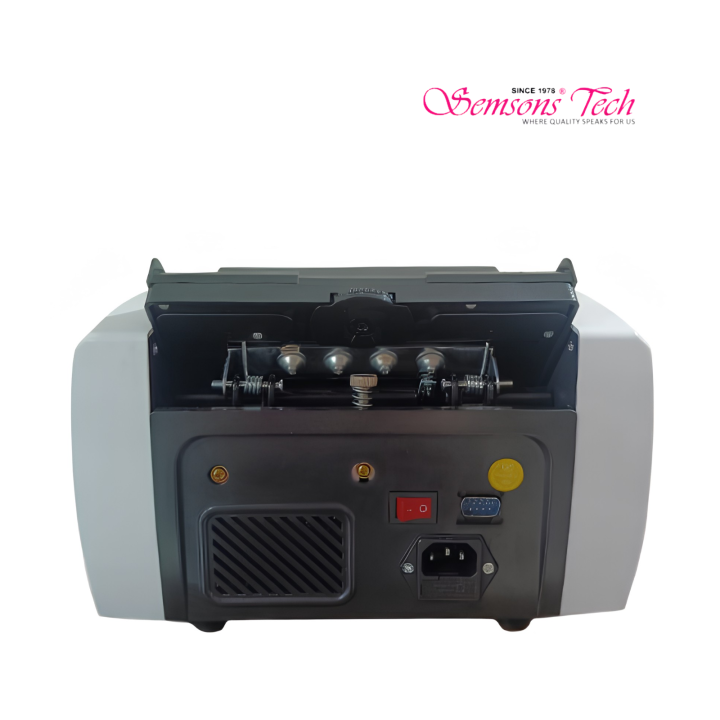

The thickness knob is on the back of the machine. Set it so the notes feed smoothly, and change it a little at a time, testing with a few notes.
| Code | What it means |
|---|---|
| EE1 | UV check |
| EE2, E61 | MG (magnetic) check |
| E71, E72 | MT (edge magnetic) check |
| EE4 | Half note |
| EE5 | Notes stuck in a chain |
| EEA | Skewed note |
| C01, C02 | Left or right IR sensor (start-up check) |
| C03 | Speed sensor (start-up check) |
| C04 | Hopper sensor (start-up check) |
| C05 | Stacker sensor (start-up check) |
| C07 | UV sensor (start-up check) |
| C60, C61, C64 | Left, right or large MG sensor (start-up check) |
| C90 | Buttons (start-up check) |
An EE or E code while counting means the machine has stopped on a note: take that note out and check it. A C code at switch-on means a sensor needs attention: switch off, brush the sensors clean and switch on again. If a C code keeps coming back, call us.
| Problem | What to check |
|---|---|
| No power | The power cord connection and the fuse. A spare fuse is in the box. |
| On, but not counting | Brush the hopper sensor clean. If it still does not count, call us: the sensor cable and the belt are a job for our service team. |
| Wrong count | Set the note thickness (Note Thickness, above) and brush the counting sensor clean. A worn feed wheel is replaced by our service team. |
| Wrong detection | Brush the UV sensor clean. The UV and MG sensitivity can be adjusted from the settings menu, as the manual shows. |
| Stops often and shows a code | Turn the thickness knob slightly anticlockwise, and check the notes for damage. |
Match the machine to how much cash you count and what you need it to check. Here is what to look at, and where the ST810 stands.
| What to check | The ST810 |
|---|---|
| Counting speed | 900 notes a minute |
| Fake note checks | UV, MG, IR and DD (dimension), plus half-note, chained-note and double-note detection |
| Value of a mixed stack | Not automatic. VALUE sums values you enter, so for an exact total count one denomination at a time |
| Bundles and running totals | BATCH (preset 100) and ADD |
| Hopper and stacker | 130 notes each |
| Currencies | Indian rupee, with CUR to select others such as the US dollar and the euro |
| Display and voice | Display with mode indicators, English voice prompts, external display port |
| Size and power | 290 × 250 × 175 mm, 4.1 kg, under 45 W |
| Warranty | 1 year from the invoice date, replacement within 7 days for a manufacturing defect |
| Price | ₹5,399 including GST, delivered free |
If you would rather have an LCD screen with a separate batch display, compare the ST2330 currency counting machine. Both are in Currency Counting Machines.
| Terms | Details |
|---|---|
| Price | ₹5,399 including 18% GST. Festival season offer: 40% off the ₹8,999 MRP. |
| Invoice | Proforma invoice, with the price before GST and the GST shown separately |
| Delivery | Free anywhere in India |
| Dispatch | Within 2 days of the order. Courier delivery usually takes 3–5 working days after that. |
| Before dispatch | Every machine is checked to make sure it is in working order |
| Several machines | For a chain of counters or branches, ask the wholesale desk for a quote on +91 80823 38010 |
| Warranty | 1 year from the invoice date, for manufacturing defects. After the first 7 days, a verified defect is repaired under warranty. |
| Replacement | Within 7 days of delivery, only for a manufacturing defect |
| To claim | Send the unboxing video and a video of the defective part on WhatsApp to +91 98216 12340. Both videos are needed to verify the claim. |
| Returns | Not returnable |
| Not covered | Damage from a fall or liquid, a wrong power supply, or a machine opened or repaired by anyone else |
| Damaged in transit | Tell us within 48 hours of delivery, with photos. The full terms are in our refund policy. |
An electronic machine that counts a stack of banknotes automatically and checks each note for signs of a fake. Businesses that handle cash every day use one to count faster and to cut down on counting mistakes.
A note counting machine, also called a currency counting machine or bill counter. It counts banknotes at up to 900 notes a minute and checks them with UV, MG, IR and DD (dimension) detection.
₹5,399 including 18% GST. That is the festival season offer, 40% off the ₹8,999 MRP. Delivery anywhere in India is free, and the GST amount is shown separately in the cart and on your proforma invoice.
It counts 900 notes per minute. The hopper and the stacker each hold 130 notes, so a 100-note bundle goes in at once.
It checks every note with UV, MG, IR and DD detection while you count, and stops with a code on a suspect note. No machine catches every counterfeit, so check any note it stops on by hand.
UV checks the paper under ultraviolet light, since fake notes are often printed on paper that glows. MG looks for the magnetic ink in genuine notes. IR checks the note under infrared light. DD checks the size of each note.
Yes. It has half-note, chained-note and double-note detection. A half note shows code EE4 and notes stuck in a chain show EE5.
No accuracy percentage is published for the ST810. A sensor counts every note, and the half-note, chained-note and double-note checks catch the notes that most often throw a count off. Set the note thickness and take out clips, bands and damaged notes for the best result.
Yes. It is made for Indian rupee notes, and the CUR key selects other currencies such as the US dollar and the euro. Detection may not work the same way for every currency, so call us before you buy it for notes other than the rupee.
It has a mixed counting mode (MIX). Value counting is manual: in VALUE mode you enter the value of the notes and the machine sums it up. It does not read the denomination by itself, so for an exact rupee total, count one denomination at a time.
Press BATCH. The machine counts in batches of the preset 100 notes, so each bundle can be banded as it is counted.
ADD keeps a running total. If you count 100 notes and then 50 more, the display shows 150 instead of starting again from zero.
Yes, in English. Switch them on or off with the VOICE key.
Use the knob on the back. If notes run too hard or too slowly, turn it clockwise. If the machine stops often and shows a code, turn it slightly anticlockwise. Test with a few notes after each change.
An EE or E code while counting means the machine stopped on a note, for example EE4 for a half note or EEA for a skewed note. A C code at switch-on points to a sensor, for example C04 for the hopper sensor. The full list is under Codes on the Display in the Specifications tab.
Unplug it, then brush dust and paper bits off the sensors and rollers with the supplied brush or a soft dry cloth, and clean the inside now and then. Never use water or spray cleaners. If a C code keeps coming back, or the count goes wrong after cleaning, call us.
Any business that counts cash every day: shops and supermarkets, jewellery showrooms, petrol pumps, wholesalers, restaurants, hotels, hospitals, schools and the accounts teams of offices. The list above says what each one counts with it.
It is used to count and check notes at counters and back offices, with UV, MG, IR and DD checks. It does not sort notes or total the value of a mixed stack, and no bank approval or certification is claimed for it, so check it against your institution's own requirements.
Delivery is free anywhere in India. The machine is dispatched within 2 days of your order, and courier delivery usually takes 3–5 working days after that.
Yes. For a chain of counters, branches or resale, call the wholesale desk on +91 80823 38010 for a quote.
Press Buy now or Add to cart, sign in or create an account, and pay online at checkout. Delivery is free, the machine is dispatched within 2 days, and you get a proforma invoice with the GST shown separately.
Yes. The one-minute video at the top of this page shows the ST810 at work. For anything it does not answer, message the sales desk.
A 1-year warranty from the invoice date, for manufacturing defects. In the first 7 days after delivery, a machine with a manufacturing defect is replaced: send the unboxing video and a video of the defective part on WhatsApp to +91 98216 12340, and we verify it. After 7 days, a verified defect is repaired under warranty. The machine is not returnable.
Order it online on this page: press Buy now or Add to cart. For questions, a quote for several machines or a call back, message the sales desk on WhatsApp or call +91 98216 12340.
Our office is in Kandivali West, Mumbai, and orders are delivered anywhere in India. Delivery terms are on the delivery page.
