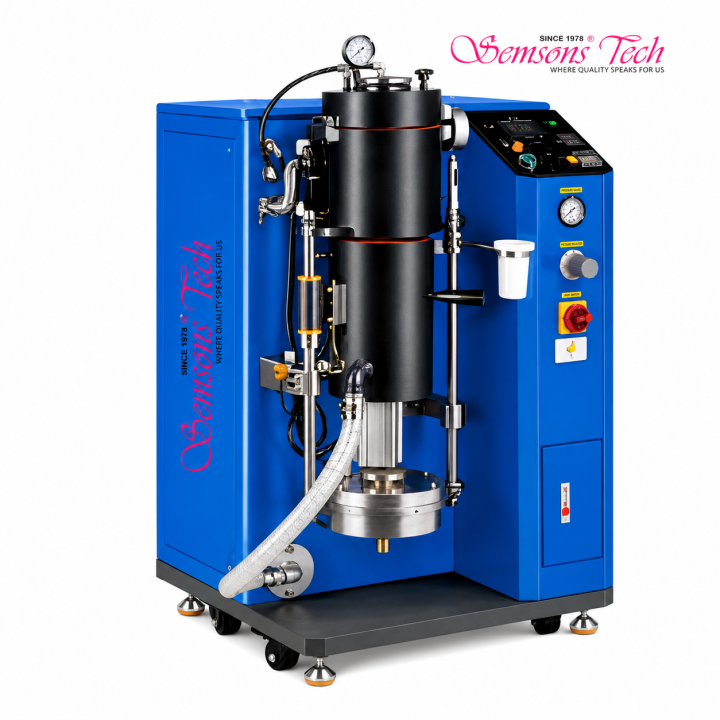

Vacuum Pressure Casting Machine Manual

The Manual-Control Vacuum Pressure Casting Machine — Premium Casting Quality at Accessible Capex for Small-to-Medium Casting Houses

Investment casting quality is fundamentally limited by gas trapping and incomplete mold-fill during molten metal pour. Open-air casting workflows (gravity-pour or simple vacuum-only) suffer from (1) gas trapping in mold cavity creating porosity defects, (2) incomplete mold-fill in fine detail (filigree, multi-stone settings, micro-pavé) creating missing-detail defects, (3) shrinkage voids as metal cools without compensating pressure, (4) oxidation during melting reducing metal quality and creating surface defects. Vacuum pressure casting technology addresses all these failure modes through engineered casting environment: (1) Vacuum chamber evacuates investment flask removing all gas from mold cavity before pour. (2) Positive inert gas pressure (1.5-2.5 bar) applied during pour forces molten metal into fine detail and compensates shrinkage during cooling. (3) Inert gas shielded melting prevents oxidation maintaining metal purity. (4) Induction melting with PID temperature control delivers precise melting temperature without overheating. Result: higher-density castings with minimal porosity, complete fine-detail capture, dimensional accuracy, and superior surface quality — significantly reducing post-finishing labour and rejection rates. The manual-control variant delivers all the core casting technology of PLC-automated alternatives at significantly lower capex (₹2-8 lakh versus ₹8-30+ lakh for fully-automated) — workflow requires operator engagement throughout cycle but produces equivalent casting quality.

For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry. The Manual Vacuum Pressure Casting Machine is the production-default for small-to-medium casting houses processing 50-300 trees daily, designer ateliers transitioning from open-air to vacuum-pressure casting, lab-grown diamond brand entry-tier mount casting operations, CMT operations seeking premium casting quality without PLC automation capex, casting service bureaus, and training institutes building production-grade curriculum equipment.

Core Engineering Advantages

• Vacuum + Positive Pressure Combined — Eliminates Porosity and Shrinkage Defects: The decisive casting quality engineering. Vacuum stage: chamber evacuates investment flask before pour; removes all gas from mold cavity. Pressure stage: positive inert gas pressure (1.5-2.5 bar typical) applied during and after pour; forces molten metal into fine mold detail; compensates shrinkage as metal cools. Result: 95-99% reduction in porosity defects compared to open-air casting; complete fine-detail capture in complex mold geometry; dimensional accuracy across production batches; reduced casting rejection rate (typical 5-10% vs 20-30% for open-air casting); significantly reduced post-finishing labour to remove porosity defects.

• Induction Melting with PID Temperature Control: Production-grade melting system. Induction architecture: metal melts via electromagnetic induction without direct flame contact; significantly faster melting than gas/oil furnaces (3-5 minutes vs 15-30 minutes); precise temperature control. PID controller: maintains exact melting temperature without overshooting; prevents overheating that degrades metal quality. Multi-metal capability: temperature profile adjusts for different alloys (gold ~1080°C, silver ~950°C, brass ~900°C). Production economics: faster melting cycles increase daily throughput; precise temperature reduces metal degradation and casting defects.

• Inert Gas Shielded Melting Prevents Oxidation: Critical for premium casting quality. Architecture: melting chamber filled with inert gas (typically argon or nitrogen); prevents oxygen contact with molten metal during melting and pour. Why it matters: oxidation during melting (1) reduces metal purity by oxidising alloy components; (2) creates surface defects from oxide inclusions; (3) increases material loss from oxidised material. Inert gas shielding eliminates these failures supporting premium casting quality and material economy.

• Manual-Control Workflow — Production-Grade Quality at Lower Capex: Manual operator control versus PLC automation. Operator workflow: operator manages each casting cycle through control panel — sets melting temperature, monitors melting completion, activates vacuum sequence, applies positive pressure, controls pour timing. Capex advantage: ₹2-8 lakh pricing versus ₹8-30+ lakh for PLC-automated variants. Production quality: properly operated manual machine produces casting quality equivalent to automated alternatives — automation primarily benefits multi-shift consistency and operator-skill independence, not fundamental casting quality. Tradeoffs: requires skilled operator engagement throughout cycle; less suitable for unattended overnight production; multi-shift operations may have inter-operator quality variability.

• Electromagnetic Stirring for Uniform Melt: Premium variants include electromagnetic stirring during melting cycle. Why it matters: stirring ensures uniform metal composition (alloy components properly mixed), homogeneous temperature distribution (no cold spots in melt), better metal flow during pour. Production advantage: more consistent casting quality across complex multi-component alloys; reduced segregation defects in cast pieces.

• Compatible with Common Casting Metals: Gold (10K-22K — yellow/white/rose gold all karats), silver (sterling + 925), brass, K-gold, copper alloys. Important limitation: NOT optimal for platinum (high melting point ~1768°C + poor molten fluidity — platinum requires centrifugal casting machine for optimal results); palladium possible but suboptimal versus centrifugal. For gold and silver — the dominant Indian casting market — vacuum pressure casting is the production-default workflow.

• 3-5 Minute Casting Cycle: Fast casting cycle supports production throughput. Typical cycle: load metal (30 seconds) → induction melting to target temperature (3-5 minutes) → vacuum chamber activation → pour with positive pressure (10-30 seconds) → pressure hold during cooling (60-180 seconds) → flask removal. Daily output: 60-150+ flask cycles per shift depending on operator efficiency and metal quantity per flask; supports daily production of 200-800+ pieces depending on tree configuration.

• Integrated Safety Features: Over-temperature protection (prevents melting chamber damage), short-circuit protection (electrical safety), inert gas system safety interlocks, vacuum system safety valves, emergency stop button. Critical for operator safety around molten precious metal at 900-1100°C.

Technical Specifications

Manual vs PLC-Automated Vacuum Pressure Casting — Which Should You Choose?

• Choose Manual (₹2-8 lakh): small-to-medium casting houses 50-300 trees daily; designer ateliers transitioning from open-air; budget-constrained operations transitioning to vacuum pressure technology; training institutes; operations with skilled dedicated operator available throughout shift.
• Choose PLC-Automated (₹8-30+ lakh): chain-retail wholesale 300+ trees daily; multi-shift production requiring operator-skill-independent consistency; operations requiring detailed cycle data and audit-grade traceability; production line integration.

Critical note: properly operated manual variant produces casting quality equivalent to PLC-automated alternatives. Automation primarily benefits multi-shift consistency and operator-skill independence, not fundamental casting quality.

Real-World Use Cases

• Mumbai BDB small casting house premium quality transition — small casting house transitioning from open-air gravity casting to vacuum pressure deploys manual variant; casting rejection rate drops from 25% to 8%; finishing labour drops 40%
• Surat designer atelier 22K traditional bridal casting — atelier producing 22K traditional bridal with intricate filigree uses manual vacuum pressure for fine-detail mold-fill; positive pressure forces gold into intricate geometry impossible with gravity pour
• Jaipur silver chain-export casting operation — chain export operation casting sterling silver chains uses manual variant for premium chain quality; vacuum eliminates porosity defects that affect export market acceptance
• Coimbatore designer atelier moderate-volume production — designer atelier processing 100-200 trees daily uses manual variant as primary casting equipment; skilled dedicated operator manages full-shift production
• Lab-grown diamond brand entry-tier mount casting — CVD/HPHT brand entering mount production starts with manual variant; production quality supports brand positioning while capex remains accessible
• Gemology and jewellery training institute curriculum — premier training institute installs manual variant exposing students to industry-standard vacuum pressure casting workflow before they enter PLC-automated operations

Pricing, Installation & Support

Indian market pricing ₹2,00,000-8,00,000 depending on melting capacity variant (1kg / 2kg / 3kg / 4kg) and configuration. EMI financing 6-24 months through partner financial institutions. Complete starter bundle pricing combining manual vacuum pressure casting machine + investment casting flasks (initial supply) + graphite crucibles (initial supply) + inert gas cylinder + water chiller + operator training. Comprehensive on-site installation by Semsons authorized technician — includes electrical (220V single-phase or 380V 3-phase per variant) and inert gas supply integration, water chiller connection, vacuum and pressure system commissioning, first-cycle validation with customer's metal alloy. Operator training covering melting cycle management (induction operation, PID temperature setting), vacuum sequence operation, positive pressure application, casting cycle workflow, safety protocols, troubleshooting, and complete production workflow integration. 1-year manufacturer warranty with free technical support and spare parts. Comprehensive spare parts supply (induction coils, crucibles, vacuum pump components, pressure regulator, control panel) with same-day dispatch from Mumbai and Rajkot warehouses. Consumable supply continuity: graphite crucibles, investment casting flasks, inert gas — all available with same-day dispatch. Dealer-network service across 16+ Indian cities. Trade-in program for operations transitioning from open-air gravity casting equipment. Wholesale enquiries on +91 80823 38010.

Why Buy Manual Vacuum Pressure Casting from Semsons Tech

Semsons Tech is a JMA Industry Award-winning supplier with 48 years in jewellery equipment, 16+ warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Unlike Alibaba importers shipping budget casting machines with unreliable induction systems prone to failure under sustained casting duty, inadequate vacuum and pressure systems failing to deliver promised casting quality, missing PID temperature control creating metal degradation, missing electromagnetic stirring producing inconsistent metal composition, missing inert gas shielded melting causing oxidation defects, missing comprehensive safety features creating operator safety risks, and unreliable supply continuity for crucibles and spare parts, Semsons supplies the Manual Vacuum Pressure Casting Machine with induction melting with PID temperature control ±1°C accuracy, vacuum chamber + positive inert gas pressure 1.5-2.5 bar for premium casting quality, inert gas shielded melting preventing oxidation, electromagnetic stirring on premium variants for uniform melt composition, 3-5 minute fast casting cycle, comprehensive integrated safety features (over-temperature, short-circuit, gas system safety, emergency stop), on-site installation and operator training, 1-year warranty, comprehensive spare parts supply with same-day dispatch, consumable supply continuity for crucibles and flasks, EMI financing 6-24 months, trade-in program for operations transitioning from open-air casting, dealer-network service across 16+ Indian cities, and complete workflow integration consultation. For investment casting where casting quality directly determines downstream finishing labour and customer-acceptable production output, supplier accountability and equipment quality matter far more than upfront capex savings. Where Quality Speaks For Us — Since 1978.

Order Your Manual Vacuum Pressure Casting Machine Today

For pricing across melting capacity variants (1kg / 2kg / 3kg / 4kg), complete starter bundle (machine + flasks + crucibles + inert gas + chiller + training), EMI financing 6-24 months, trade-in program for operations transitioning from open-air gravity casting equipment, multi-machine bundle pricing for production-scaling operations, complete casting workflow bundle pricing combining manual vacuum pressure casting with paired equipment (Wax Beads, Vacuum Wax Injectors, Vulcanizer, Investment Powder Mixer, Burnout Furnace, Tree Cutting Machine + complete finishing equipment), upgrade path consultation to PLC-automated variants, international export, or technical consultation, WhatsApp our sales desk on +91 98216 12340 or wholesale on +91 80823 38010. Pair with the complete Semsons jewellery production workflow ecosystem across upstream wax pattern production (Wax Beads, Vacuum Wax Injectors DVWI-1/T4/T4A/D4, Vulcanizer), investment workflow (Investment Powder Mixer, Burnout Furnace), downstream post-cast (Water Jet Machine for investment removal, Tree Cutting Machine), finishing (Foredom Motors, Polishing Machines, Electro Polishing Machine, Tumbler Polishing Machine, Filing Table), welding (Earring Post Welding Machine), cleaning (Ultrasonic Cleaner + Diamond Bright Solutions), and plating (Rhodium Plating Machine + plating solution ranges). Same-day dispatch from Mumbai and Rajkot warehouses across 16+ Indian cities.
