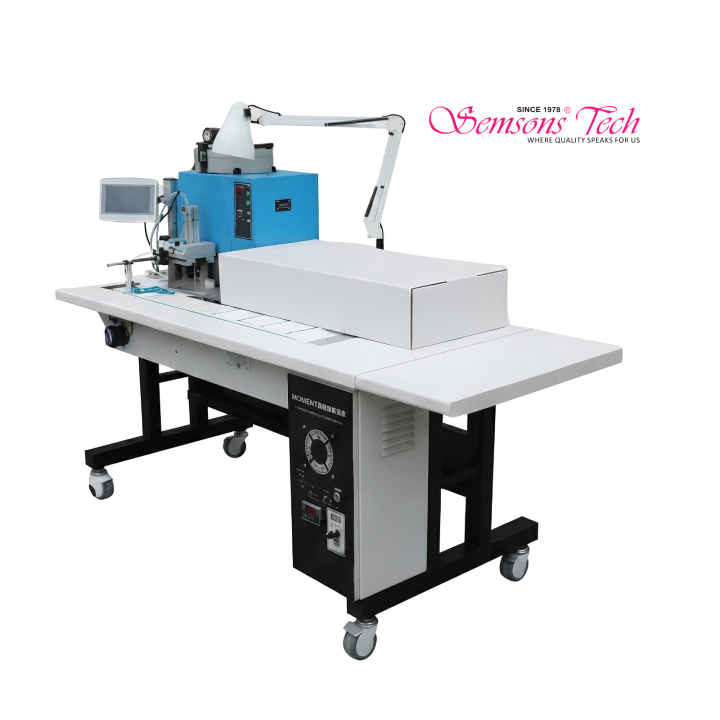

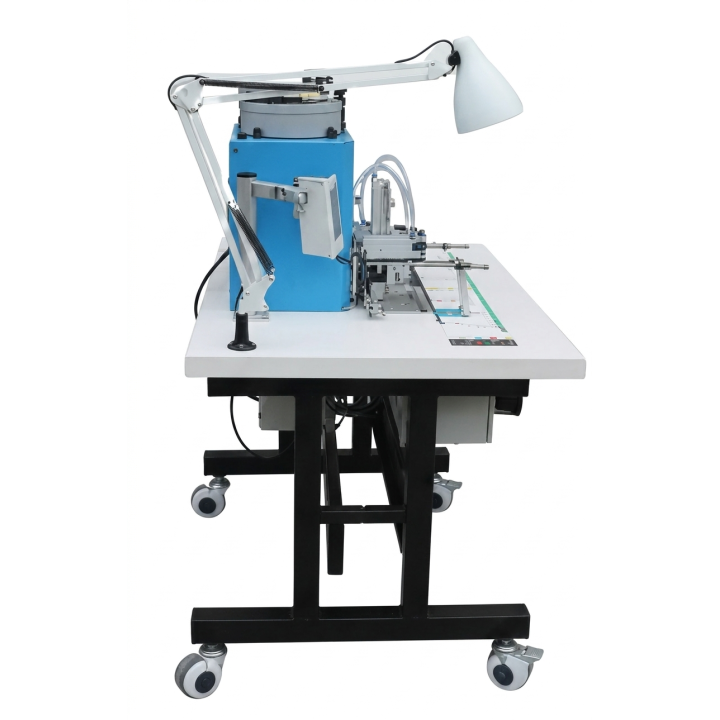

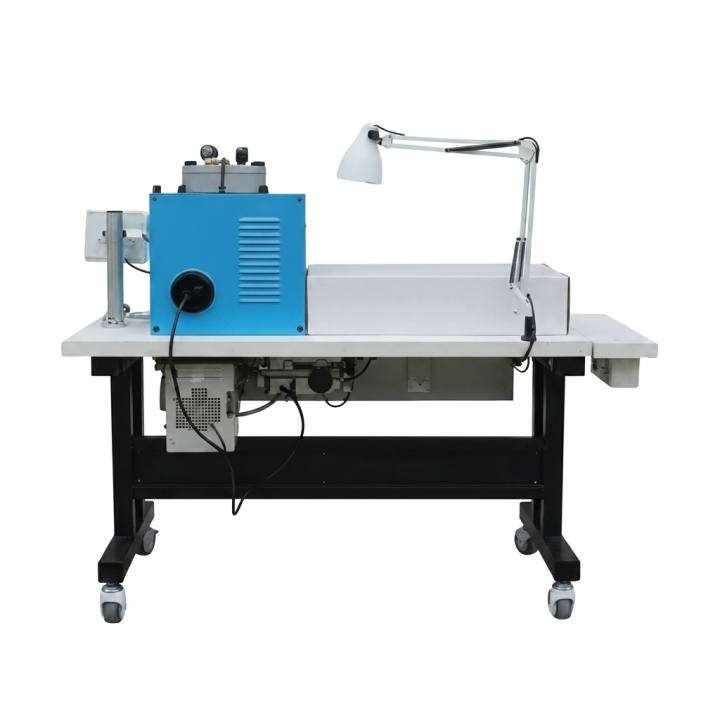

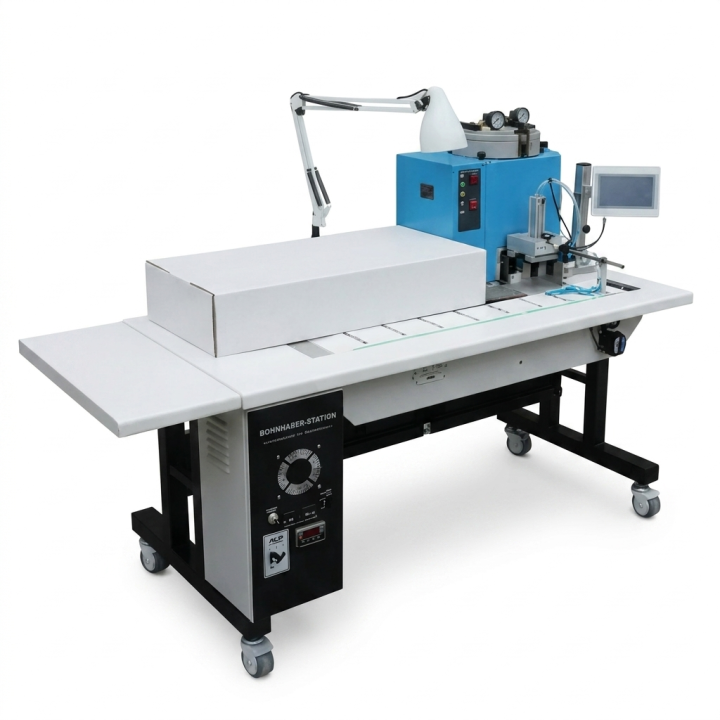

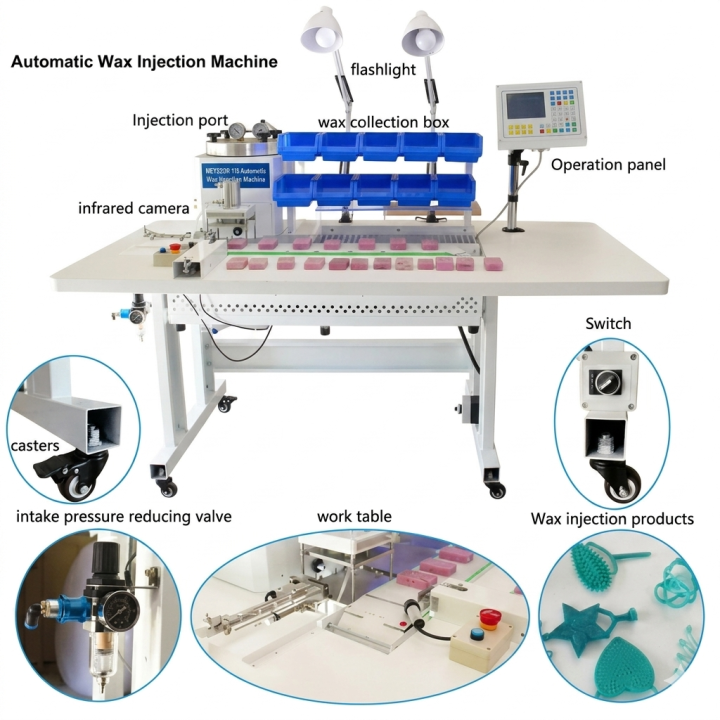

Automatic Robotic Wax Injectors Machine

The Production Equipment Transformation Where a Single Robotic Machine Replaces 5-8 Manual Wax Injection Operators While Running 24/7 Unattended

Traditional wax injection workflow is fundamentally operator-dependent. Each manual semi-automatic wax injector requires a dedicated operator who manually positions rubber molds, sets injection parameters per mold type (or relies on memorised settings creating quality variability), activates injection cycles, removes completed molds, and handles output workflow. Production throughput is hard-capped at 30-60 patterns per hour per operator regardless of equipment quality — the bottleneck is operator handling cycles rather than equipment capability. For chain-retail wholesale operations processing 2000-10,000+ pieces daily, manual wax injection requires 8-15+ dedicated operators across multiple machines, creates significant labour cost overhead, generates quality variability across operator experience levels, and cannot deliver continuous overnight production. Automatic robotic wax injection equipment fundamentally transforms this workflow: (1) Robotic gripper arm replaces operator hands — picks rubber molds from input conveyor, positions for injection, holds during cycle, places completed molds on output conveyor. (2) RFID/barcode mold identification replaces operator memory — each mold has unique ID chip; scanner reads ID; injection parameters automatically loaded from chip database; eliminates parameter-input errors and inter-operator variability. (3) Automated conveyor belt replaces operator queue management — molds placed on input conveyor are processed sequentially without intervention. (4) PLC + touchscreen control with programmable cycle parameters and recipe database supports complex production workflow management. (5) Continuous unattended operation enables 24/7 production with periodic wax refills (typical 4-12 hour autonomy between refills). Production throughput transformation: traditional manual wax injector capped at 30-60 patterns per hour (operator-dependent); automatic robotic wax injector delivers 200-600 patterns per hour (machine-dependent, no operator dependency); industrial variants process up to 5 tons of wax per day. Labour replacement economics: a single automatic robotic wax injector replaces 5-8 manual operators while running continuously rather than during shift hours — for chain-retail wholesale operations, equipment payback typically 12-24 months through labour cost reduction alone. For premium operations, additional value comes from quality consistency (machine-driven parameters eliminate operator-skill variability), scalability (24/7 production supports peak-demand workflow without operator overtime), and traceability (RFID tracking supports audit-grade production records). The Semsons Tech Automatic Robotic Wax Injection Machine range covers the complete automation portfolio — entry automated wax injectors (auto-clamp + programmable cycles, no robotic arm), mid-tier robotic systems (robotic gripper arm + auto-conveyor + touchscreen control), premium full robotic systems (robotic arm + RFID mold identification + multi-mold autonomy + 24/7 unattended operation), industrial production line systems (multiple robotic injectors + integrated conveyor network + automated tree assembly + production-line orchestration). All variants include three-level digital wax temperature control (±0.2°C accuracy), vacuum injection environment preventing air bubbles, programmable injection parameters (0-15 psi pressure, programmable injection and hold times), large-capacity wax tanks supporting continuous operation, compatibility with all standard injection wax variants (Ferris Magna-Ject, GRS, SRS — see Wax Beads product page), on-site installation and operator training, 1-year manufacturer warranty (extendable), EMI financing 12-36 months for capex investment structure.

For 48 years, Semsons Tech has supplied the Indian jewellery manufacturing industry. The Automatic Robotic Wax Injection Machine is supplied with on-site installation, comprehensive operator training (covering machine setup, RFID mold programming, recipe database management, robotic arm calibration, wax temperature optimisation, continuous-operation workflow management, troubleshooting, and complete production line integration), application support, 1-year manufacturer warranty (extendable to 3-5 years), spare parts supply, and lifetime technical consultation through Semsons authorized distribution. Trusted across chain-retail wholesale casting operations processing daily 2000-10,000+ pieces (the primary buyer segment — manual workflow becomes economically uncompetitive at this scale), industrial casting houses operating multi-shift production with 24/7 capability requirements, lab-grown diamond brand mass-production mount operations, premium designer ateliers transitioning from manual to automated production, and chain-retail brand vertical-integration mount manufacturing.

Core Engineering Advantages

• Robotic Gripper Arm — Replaces Operator Hands in Production Workflow: The decisive automation engineering. Architecture: precision servo-motor-driven robotic arm with adjustable-height clamp gripper; positions rubber molds at wax injection nozzle with sub-millimeter repeatability; holds mold during injection cycle and cooling; places completed molds on output conveyor. Critical workflow advantages: (1) Eliminates operator-position variability — robotic arm positions every mold at exact same alignment; operator-driven workflow has minor position variations creating quality variability. (2) 24/7 operation capability — robotic arm doesn't fatigue, doesn't require breaks, doesn't have shift hours — continuous production through nights and weekends. (3) Higher cycle rate — robotic arm handling cycle is 5-10× faster than manual operator workflow (3-5 seconds robotic vs 20-40 seconds operator). (4) Consistent quality — every cycle executes with identical parameters; no operator-skill variability across batches. (5) Reduced operator injury risk — eliminates repetitive-strain risk from continuous manual mold handling. For high-volume operations, robotic arm automation is the foundational technology enabling production scaling beyond manual workforce limits.

• RFID / Barcode Mold Identification — Eliminates Parameter-Input Errors: The intelligent automation that supports diverse production workflow. Architecture: each rubber mold equipped with unique RFID tag or barcode ID label; machine scanner automatically reads ID when mold loaded on conveyor; injection parameters (temperature, pressure, injection time, hold time, cycle count) automatically loaded from chip database matched to mold ID; parameters displayed on touchscreen for operator verification; cycle executes with mold-specific parameters automatically. Critical workflow advantages: (1) Eliminates operator parameter-input errors — wrong parameters cause defective patterns; RFID auto-loading prevents this entirely. (2) Supports diverse product line production — operations producing 20-50+ different mold types can process mixed batches without manual parameter switching. (3) Production traceability — every cycle logged with mold ID, parameters, timestamp; supports audit-grade production records. (4) Quality consistency — same mold ID always uses same parameters; no inter-operator variability. (5) Mold database expansion — operations add new molds by programming RFID/barcode with optimised parameters; database grows across operational life supporting workflow standardisation. For chain-retail operations running multiple product lines simultaneously, RFID automation is decisive.

• Automated Conveyor Belt — Continuous Production Workflow: The throughput-enabling infrastructure. Architecture: input conveyor receives empty rubber molds from operator (or automated mold-loading station); molds advance to robotic arm pickup position; robotic arm picks individual mold; processed mold placed on output conveyor; output conveyor delivers completed wax patterns to next workflow stage. Critical workflow advantages: (1) Decouples mold loading from injection workflow — operator loads multiple molds at start of shift; machine processes throughout shift without operator intervention. (2) Continuous flow processing — no batch loading/unloading bottlenecks; molds processed sequentially as they arrive at pickup position. (3) Variable conveyor speed — matches injection cycle time; supports throughput optimisation per mold type. (4) Integration with downstream workflow — output conveyor can feed directly into automated wax setting machine, tree assembly station, or other automated downstream equipment. (5) Multi-shift handover support — operators across shifts can refill input conveyor and collect output without disrupting production rhythm.

• Three-Level Digital Wax Temperature Control — ±0.2°C Accuracy: Premium temperature control supports premium pattern quality. Architecture: three-stage temperature control system — primary wax reservoir tank (large-capacity bulk wax storage), secondary intermediate chamber (gradual temperature stabilisation), final injection chamber (precise temperature at injection nozzle); each stage with dedicated thermostat and heating element; digital control panel displays each stage temperature in real-time. Critical workflow advantages: (1) ±0.2°C accuracy at injection point — significantly better than ±2-5°C of budget single-stage systems; supports consistent wax viscosity across production cycles. (2) Eliminates temperature variation across production day — primary tank temperature varies with refill cycles but secondary/final chambers maintain stable injection temperature. (3) Multi-wax compatibility — operating range up to 110°C supports standard injection wax (65-75°C) and specialty white/high-temperature waxes (90-110°C). (4) Multi-wax recipe support — different wax variants run at different temperatures via touchscreen recipe selection. (5) Wax quality preservation — gradual temperature increases prevent localised overheating that degrades wax chemistry. For premium wax patterns (Ferris Magna-Ject, GRS, SRS), the precision temperature control is essential.

• Vacuum Injection Environment — Prevents Air Bubbles: Critical for premium wax pattern quality. The air bubble problem: traditional non-vacuum wax injection traps air bubbles in mold detail areas creating wax patterns with surface defects; subsequent casting reproduces the defects as casting porosity. Vacuum injection architecture: vacuum chamber surrounds mold during injection; air evacuated from mold cavity before wax flow begins; wax fills cavity in vacuum environment without air resistance; result is bubble-free wax patterns with perfect mold-cavity fill. Critical workflow advantages: (1) Bubble-free wax patterns — supports premium casting quality with minimal surface defects. (2) Complete mold-cavity fill — fine detail (filigree, intricate geometry) fills completely without air pockets. (3) Reduced wax pattern rejection — fewer defective patterns means higher wax efficiency and reduced production rework. (4) Consistent quality across pattern complexity — vacuum eliminates the bubble-formation variability that affects manual injection workflow. For premium operations producing complex multi-stone settings and intricate designs, vacuum injection is essential for production-grade output quality.

• PLC + Touchscreen Control with Recipe Database: The production management infrastructure. Architecture: PLC (Programmable Logic Controller) industrial-grade control system manages all machine operations; touchscreen HMI (Human-Machine Interface) provides operator interaction; recipe database stores optimised cycle parameters per mold type with unlimited recipe slots (typical 50-500 recipes supported). Critical workflow advantages: (1) Reproducible production — same recipe delivers identical cycle execution across batches. (2) Recipe development workflow — new molds undergo parameter optimisation; optimised recipes saved to database with RFID/barcode association. (3) Production reporting — touchscreen displays cycle count, daily throughput, recipe usage statistics, machine uptime, maintenance schedules. (4) Operator simplicity — operators don't set parameters manually; just select recipe or scan mold ID; machine handles parameter management. (5) Production scheduling — operators queue different recipe production runs; machine switches recipes automatically based on mold ID detection. For diverse production operations, the recipe database is the foundational production management tool.

• Continuous 24/7 Unattended Operation Capability: The production economics transformation that fundamentally changes operational model. Architecture supports: (1) Large-capacity wax tank (5-50kg+ depending on variant) — supports 4-12 hour autonomy between refills. (2) Auto-detection of low wax level — operator alerted before wax depletion. (3) Auto-pause on critical errors — machine pauses safely if mold loading fails or operator intervention required. (4) Output conveyor buffer capacity — accommodates accumulated output before operator collection. Production economics impact example: an operation running 24/7 vs single-shift 8-hour operation increases daily output 3× (24 hours / 8 hours) — without proportional labour cost increase. For chain-retail wholesale operations, the 24/7 capability enables production scaling beyond manual workforce limits and supports peak-demand seasonal workflow (wedding season, festival season) without operator overtime cost.

• Auto-Clamp Mechanism — Replaces Manual Mold Clamping: The detail automation that delivers consistent injection quality. Architecture: pneumatic or servo-driven auto-clamp closes rubber mold around wax injection nozzle with consistent force; opens automatically at cycle end. Critical workflow advantages: (1) Consistent clamp pressure — variable manual clamp pressure creates wax pattern variability; auto-clamp eliminates this. (2) Faster cycle time — auto-clamp closes and opens in 1-2 seconds vs 5-10 seconds manual. (3) Reduced operator effort — even with semi-automated systems where operators handle molds, eliminating clamp operation reduces fatigue. (4) Programmable clamp force — different mold types may require different clamp forces; programmable per recipe supports diverse production. (5) Safety — automatic clamp prevents operator finger injury during manual mold positioning errors.

• Programmable Injection Parameters with Mold-Specific Optimisation: The cycle precision that supports diverse production workflow. Programmable parameters: (1) Injection pressure 0-15 psi programmable in 0.1 psi increments; light pressure for delicate molds, higher pressure for intricate detail capture. (2) Injection time programmable in seconds; matched to mold complexity. (3) Hold time programmable; allows wax cooling before clamp opens. (4) Vacuum level programmable on premium variants; matches vacuum to mold type. (5) Multi-stage injection (premium variants) — two-time injection that minimises wax shrinkage versus single-injection; supports premium pattern quality. (6) Cycle count tracking per recipe; supports production planning and quality monitoring.

• Production Throughput Transformation — 200-600 Patterns Per Hour: The throughput numbers that justify equipment investment. Manual semi-automatic wax injector: 30-60 patterns per hour per operator (operator-dependent throughput cap). Entry automated wax injector with auto-clamp: 60-120 patterns per hour (operator still required for mold loading but cycle is faster). Mid-tier robotic system: 150-300 patterns per hour (robotic arm + auto-conveyor; operator monitors and refills). Premium robotic system: 200-600 patterns per hour (full automation; operator monitors during normal operation). Industrial production line: 600-2000+ patterns per hour (multiple robotic injectors integrated). Daily output: 4-8 hour shift at 200 patterns/hour = 800-1600 patterns; 24-hour operation at 200 patterns/hour = 4800 patterns. For 1000-piece daily operations, premium robotic system handles production with 4-5 hours machine time versus 17-33 operator-hours for manual equivalent — significant labour transformation.

• Multi-Wax Variant Compatibility: Open consumable compatibility supports diverse production workflow. Compatible wax variants: standard injection wax (blue, aqua, royal blue, green) at 65-75°C; specialty harder wax (red) at 70-78°C; premium Ferris Magna-Ject pink at 68-74°C; white/high-temperature specialty wax at 90-110°C; multi-color variants for product-line tracking (see Wax Beads product page for complete wax variant catalogue). Operations using multiple wax variants: maintain different recipe slots per wax type; switch wax between batches by emptying reservoir and loading new wax type; recipe automatically adjusts temperature and parameters per loaded wax.

• Production Workflow Integration: The Automatic Robotic Wax Injection Machine integrates with the complete Semsons jewellery production workflow equipment ecosystem. Upstream: Wax Beads (Ferris/GRS/SRS premium injection wax) loaded into machine reservoir; Vulcanizer creates rubber molds from master models with RFID tags assigned per mold type. Downstream: completed wax patterns from output conveyor flow to either automated 3D Wax Setting Machine (for stone-set designs — 9000-12,000 pieces/hour automated stone setting in wax patterns; together with robotic wax injector creates fully-automated stone-set mass production line) or tree assembly station (manual or automated tree assembly with patterns mounted on sprue); then to Investment Powder Mixer (investment slurry preparation), Burnout Furnace (wax burnout from investment), Vacuum Casting Machine (molten metal pour), Tree Cutting Machine (post-cast detachment), and complete finishing workflow ecosystem.

Technical Specifications

Production Economics — When Does Automatic Robotic Equipment Justify Investment?

Equipment tier selection depends on daily production volume, labour cost economics, and growth projections. Decision matrix:

• Under 200 pieces daily: traditional manual semi-automatic wax injector with skilled operator delivers acceptable economics; automated equipment investment difficult to justify at this scale.
• 200-500 pieces daily: entry automated wax injector (₹2,50,000-6,00,000) delivers acceptable economics through operator efficiency; payback 18-30 months. Operator still required but workflow significantly faster than manual.
• 500-1500 pieces daily: mid-tier robotic system (₹6,00,000-15,00,000) delivers strong economics; payback 12-24 months through labour cost reduction (replaces 2-4 operators) plus throughput economics; supports growing operations.
• 1500-5000 pieces daily: premium robotic system with RFID (₹15,00,000-35,00,000) is workflow-default; payback 12-18 months through labour cost reduction (replaces 5-8 operators) plus 24/7 production capability; supports chain-retail wholesale economics.
• 5000+ pieces daily: industrial production line (₹35,00,000-1,00,00,000+) non-negotiable for production economics; payback 18-24 months through industrial-scale labour transformation; supports highest-volume operations and export market positioning.

The transition decision: most operations transition from manual to entry automated when daily volume reaches 200+ pieces; from entry automated to mid-tier robotic at 500+ pieces; from mid-tier to premium robotic at 1500+ pieces; from premium to industrial at 5000+ pieces. Semsons technical consultation provides operation-specific ROI projections and recommends appropriate automation tier matched to current volume and 2-3 year growth projection.

The Standard Automated Wax Injection Workflow

Production-grade automated wax injection workflow follows a precise sequence:

1. Machine setup and warmup: machine power-on; wax temperature set to operating point (e.g., 70°C for blue Ferris); compressed air supply verified; vacuum system tested; touchscreen reports system ready
2. Wax loading: wax beads loaded into machine reservoir (premium operations load 10-30kg supporting 8-12 hour autonomy); reservoir temperature stabilises
3. Mold preparation: rubber molds (with RFID tags or barcode labels assigned per mold type) prepared for production batch; molds inspected for damage
4. Recipe database verification: production batch mold types verified in recipe database with optimised parameters; new mold types programmed via touchscreen with initial parameters (refined during early production)
5. Mold loading on input conveyor: rubber molds placed on input conveyor at appropriate spacing intervals; operator can load 20-50+ molds at start of shift supporting unattended production
6. Automatic processing begins: machine enters auto mode; first mold advances to robotic arm pickup position
7. RFID/barcode scan: scanner reads mold ID; injection parameters automatically loaded from chip database; parameters displayed on touchscreen
8. Robotic arm pickup: robotic arm picks mold from conveyor; positions at wax injection nozzle
9. Auto-clamp engages: pneumatic auto-clamp closes mold around injection nozzle with programmed force
10. Vacuum engagement: vacuum chamber activated; air evacuated from mold cavity
11. Wax injection: programmed injection pressure delivered for programmed time; multi-stage injection on premium variants minimises shrinkage
12. Hold period: clamp held closed for programmed cooling time
13. Clamp release: auto-clamp opens; robotic arm extracts mold
14. Mold placement on output conveyor: completed mold placed on output conveyor; output conveyor advances delivering completed patterns to operator collection station
15. Continuous processing: machine returns to step 6 picking next mold; cycle repeats automatically; operator periodically refills input conveyor with empty molds and collects output
16. Periodic refills: wax tank refilled every 4-12 hours depending on consumption rate; operator alerted by machine when wax level low
17. Production reporting: touchscreen displays cycle count, daily throughput, recipe usage, machine uptime; production data exportable for management reporting

Critical workflow considerations: (1) Mold preparation quality — damaged molds create defective patterns regardless of automation; pre-production mold inspection essential. (2) Recipe database maintenance — new molds added to database with proper parameter optimisation prevents inconsistent quality. (3) Periodic operator monitoring — automation doesn't eliminate operator role entirely; periodic quality verification, refill management, and exception handling required. (4) Preventive maintenance — robotic servo motors, vacuum pumps, conveyor belts require periodic maintenance; scheduled maintenance prevents production disruption. (5) Wax variant compatibility — different wax variants require different temperature settings; recipe database manages this automatically but new wax types require initial setup. Semsons technical training covers complete workflow with troubleshooting.

Real-World Use Cases

• Mumbai BDB chain-retail wholesale casting operation workflow transformation — chain-retail wholesale casting operation processing 3000-5000 pieces daily previously deployed 8 manual wax injectors with 8 dedicated operators; transitioned to 2 premium robotic systems with RFID — replaced 12 manual operators total (8 wax injection + 4 mold loading/output handling) with 2 monitoring operators; equipment payback 14 months
• Surat industrial casting house 24/7 production line — industrial casting operation deploys 4-machine industrial production line + 2 automated 3D wax setting machines integrated via conveyor; complete fully-automated mass-production wax pattern + stone setting workflow; 24/7 operation supporting peak-demand wedding season export markets; total automation investment ₹2-3 crore amortised through 18-month payback
• Lab-grown diamond brand mass-production mount manufacturing — CVD/HPHT brand operating in-house white-gold and platinum mount production deploys premium robotic system with RFID for daily 1500+ mount production; quality consistency and traceability supports direct-to-consumer brand positioning; production parameters tracked per mold ID supporting audit-grade records
• Jaipur 22K traditional bridal manufacturer growth transition — established 22K traditional bridal manufacturer transitioning from artisanal manual workflow to mid-tier robotic system as wholesale operations grow; intricate Indian designer molds benefit from vacuum injection eliminating air bubbles; recipe database stores optimised parameters per traditional design
• Rajkot CMT operation mixed-product-line management — CMT operation producing 30+ different product designs deploys premium robotic system with RFID for diverse-mold workflow management; eliminates parameter-input errors that previously caused quality variability across product lines; production data supports inventory and product-line management
• Coimbatore export-targeted casting operation — export-targeted casting operation requires audit-grade production traceability for US/EU market compliance; deploys premium robotic system with RFID tracking; production logs support customer compliance documentation; equipment investment justified through export market access
• Bangalore D2C designer brand vertical integration — D2C designer brand vertically integrating mount production deploys mid-tier robotic system for in-house wax pattern production; eliminates outsourced casting house dependency; controls quality across complete production workflow
• Gemology and jewellery training institute industry-curriculum equipment — premier training institute installs mid-tier robotic system in curriculum supporting student exposure to industry-standard automated workflow; graduates enter industry ready for production environments using automated equipment

Pricing, Configurations & Export

Indian market pricing varies significantly by automation tier and configuration. Entry automated wax injector ₹2,50,000-6,00,000 (auto-clamp + programmable cycles; for operations transitioning from purely manual workflow; under 500 pieces daily). Mid-tier robotic system ₹6,00,000-15,00,000 (robotic arm + auto-conveyor + touchscreen control; for operations 500-1500 pieces daily; the growth-stage automation tier). Premium robotic system ₹15,00,000-35,00,000 (+ RFID mold identification + 24/7 unattended capability; for operations 1500-5000 pieces daily; the chain-retail wholesale production-default). Industrial production line ₹35,00,000-1,00,00,000+ (multi-machine integrated systems with automated tree assembly integration; for operations 5000+ pieces daily; chain-retail and industrial casting houses). Complete automation bundle pricing combining Automatic Robotic Wax Injector + 3D Automatic Wax Setting Machine (downstream stone setting) + automated tree assembly integration — for operations transitioning to complete automated mass-production wax pattern + stone setting workflow; significant bundle savings versus individual equipment procurement. EMI financing 12-36 months through partner financial institutions — significant capex investment benefits from extended financing structure; particularly valuable for growing operations transitioning from manual to automated workflow. Annual maintenance contracts for production-tier and above variants — covers preventive maintenance, scheduled servicing, priority spare parts supply, on-site service response; typical 3-7% of equipment value annually. Multi-machine deployment consultation for industrial production line buyers covering equipment selection, line layout, conveyor integration, automation orchestration, production management software, and operator training across multi-machine workflow. Trade-in programs for operations upgrading from manual semi-automatic wax injectors to automated robotic systems; existing equipment evaluated and credit applied to new automation purchase. International shipments to UAE, Saudi Arabia, Bangkok, Hong Kong, USA, Canada, UK, and 25+ other countries. Wholesale enquiries on +91 80823 38010.

Installation, Training, Warranty & Support

• Comprehensive on-site installation at customer facility by Semsons authorized robotic systems technician — includes electrical connection (220-240V single-phase entry/mid-tier; 380V 3-phase production/industrial), compressed air supply integration (6-8 bar workshop compressor verification), conveyor system positioning and alignment, robotic arm calibration, vacuum system testing, control panel configuration, recipe database initial programming, first-cycle validation across customer's production mold mix
• Comprehensive operator training covering machine setup (power-on procedures, warmup cycles, system verification), RFID/barcode mold programming (assigning IDs to molds, initial parameter programming, parameter optimisation through trial cycles), recipe database management (creating recipes, modifying recipes, deleting obsolete recipes, batch recipe import), robotic arm calibration (position verification, gripper force adjustment, troubleshooting position drift), wax temperature optimisation per wax variant (Ferris/GRS/SRS-specific settings), continuous-operation workflow management (wax refilling, output collection, exception handling), troubleshooting (defective patterns, robotic arm errors, conveyor jams, vacuum system issues, temperature control problems), production reporting interpretation, and complete production line integration with upstream (Wax Beads, Vulcanizer) and downstream equipment (3D Wax Setting Machine, tree assembly, investment workflow)
• Multi-day training program for premium and industrial variants — typical 3-7 days on-site training covering operator-level operation, supervisor-level recipe management, technician-level maintenance, manager-level production reporting
• 1-year manufacturer warranty standard; extendable to 3-5 years through extended warranty contracts; covers all equipment defects, robotic system malfunctions, control panel issues, vacuum and pneumatic system problems
• 24-hour engineer response window during warranty period — Semsons technical engineer responds to support requests within 24 hours through phone/email; remote diagnostic support for many issues; on-site visit dispatched when remote resolution insufficient
• Lifetime technical consultation beyond warranty period — Semsons technical support continues throughout equipment operational life including ongoing recipe optimisation consultation, troubleshooting consultation, mold programming support, multi-machine deployment consultation
• Annual maintenance contracts for production-tier and above variants — covers preventive maintenance (quarterly scheduled servicing), priority spare parts supply, on-site service response within 24-48 hours, robotic system calibration verification; typical 3-7% of equipment value annually; significantly reduces production downtime versus reactive maintenance
• Comprehensive spare parts supply — heating elements, vacuum pumps, robotic servo motors, conveyor belts, RFID readers, control panel components, pneumatic cylinders, sensors; same-day dispatch from Mumbai and Rajkot warehouses; multi-month inventory commitments for industrial production line operations
• Production line integration consultation for industrial buyers — Semsons technical team supports complete production line planning including equipment selection across the wax pattern production workflow, line layout optimisation, conveyor integration between equipment, automation orchestration software, production management dashboard configuration, operator training across the complete automated line
• Multi-machine deployment consultation for chain-retail operations standardising on multiple parallel robotic systems
• EMI financing 12-36 months through partner financial institutions for capex investment structure
• Dealer-network service across 16+ Indian cities via 450+ dealer network with specialized robotic system technicians

Why Buy Automatic Robotic Wax Injection Machine from Semsons Tech

Semsons Tech is a JMA Industry Award-winning supplier with 48 years in jewellery equipment, 16+ warehouses, 40+ distributors, 450+ dealers, exports to 34+ countries. Unlike Alibaba importers and unauthorized resellers shipping budget robotic wax injection systems with inadequate temperature control (poor wax quality consistency creating production defects), unreliable servo motors and robotic arms prone to position drift and mechanical failure under sustained 24/7 duty (machine failure within 12-24 months of active use), missing RFID/recipe database capability forcing operators to manage parameters manually defeating automation purpose, missing comprehensive operator training leaving sophisticated automation underutilised, and unreliable supply continuity for specialized spare parts (robotic servo motors, vacuum pumps, RFID readers) creating extended production downtime, Semsons supplies the Automatic Robotic Wax Injection Machine range with imported brand components throughout (premium robotic arms, industrial-grade PLC control systems, precision vacuum pumps, reliable RFID readers), three-level digital wax temperature control delivering ±0.2°C accuracy at injection point (versus poor temperature control in budget alternatives creating wax pattern quality variability), vacuum injection environment preventing air bubbles in wax patterns (versus non-vacuum budget alternatives producing defective patterns), PLC + touchscreen control with recipe database supporting 50-500+ mold recipes (versus limited or missing recipe capability in budget alternatives), RFID/barcode mold identification eliminating parameter-input errors (versus manual parameter management defeating automation purpose), automated conveyor belt supporting continuous flow processing (versus batch-loading bottlenecks in semi-automated alternatives), 24/7 unattended operation capability with auto-pause on errors (versus operator-dependent budget alternatives), multi-wax variant compatibility supporting Ferris Magna-Ject and other premium injection wax variants, comprehensive on-site installation and multi-day operator training covering complete automation workflow, 1-year manufacturer warranty extendable to 3-5 years, 24-hour engineer response window during warranty period, lifetime technical consultation throughout operational life, annual maintenance contracts for production-tier variants supporting predictable operational continuity, comprehensive spare parts supply with same-day dispatch from Mumbai and Rajkot warehouses (versus extended downtime from unauthorized importers without parts continuity), production line integration consultation for industrial buyers, multi-machine deployment consultation for chain-retail operations, trade-in programs for operations upgrading from manual semi-automatic equipment, EMI financing 12-36 months for capex investment structure, dealer-network service across 16+ Indian cities with specialized robotic system technicians, and complete workflow integration consultation across the complete wax pattern production ecosystem (Wax Beads upstream, Vulcanizer rubber mold creation, downstream 3D Automatic Wax Setting Machine and casting workflow). For production-tier robotic automation where equipment reliability directly determines daily 24/7 production capacity (single machine replaces 5-8 manual operators; downtime creates significant labour scrambling and production disruption) and equipment quality determines wax pattern quality at the production foundation level (which determines downstream casting quality and finishing labour), supplier accountability, equipment quality, ongoing technical support, and consumable supply continuity matter far more than upfront capex savings — budget alternatives that fail on sustained 24/7 production duty or lack RFID/recipe capability create operational disruption that compounds across the multi-decade operational lifecycle of premium production equipment. The capex investment is significant but lifecycle economics through labour cost reduction, throughput economics, quality consistency, and production scalability transform operational profile fundamentally — premium operations transitioning from manual to automated workflow consistently report 12-24 month equipment payback with sustained productivity gains thereafter. Where Quality Speaks For Us — Since 1978.

Order Your Automatic Robotic Wax Injection Machine Today

For pricing across automation tiers (entry automated ₹2,50,000-6,00,000 / mid-tier robotic ₹6,00,000-15,00,000 / premium robotic with RFID ₹15,00,000-35,00,000 / industrial production line ₹35,00,000-1,00,00,000+), tier selection consultation matched to your daily production volume and 2-3 year growth projection with ROI projections, complete automation bundle pricing combining Automatic Robotic Wax Injector + 3D Automatic Wax Setting Machine + automated tree assembly integration for operations transitioning to complete automated mass-production workflow, EMI financing 12-36 months for capex investment structure, annual maintenance contracts for production-tier and above variants (3-7% of equipment value annually), trade-in programs for operations upgrading from manual semi-automatic wax injectors, multi-machine deployment consultation for chain-retail wholesale operations standardising on parallel automation, production line integration consultation for industrial buyers, multi-day operator training programs (3-7 days for premium/industrial variants), comprehensive spare parts supply with same-day dispatch, international export, or technical consultation for complete production line planning and automation transformation strategy, WhatsApp our sales desk on +91 98216 12340 or wholesale on +91 80823 38010. Pair with the complete Semsons jewellery production workflow ecosystem across upstream wax pattern production (Wax Beads Ferris/GRS/SRS premium injection wax, Vulcanizer for rubber mold creation from master models), automated stone setting (3D Automatic Wax Setting Machine — 9000-12000 pieces/hour with 5-axis 540° rotation), casting workflow (Investment Powder Mixer, Burnout Furnace, Induction Melters, Vacuum Casting Machine, Water Jet Machine for investment removal, Tree Cutting Machine for post-cast detachment), finishing (Foredom Motors, Vibratory + Magnetic + Lapping Polishing Machines, Single/Double Station Polishing Machines, Electro Polishing Machine, Tumbler Polishing Machine, Filing Table with Dust Collector), welding (Earring Post Welding Machine), cleaning (Ultrasonic Cleaner + Diamond Bright Solutions + Steam Cleaning Machine + Magnetic Polishing Solution), and plating (Rhodium Plating Machine + Dip Plating Solution range + Pen Plating Solution range). Same-day dispatch from Mumbai and Rajkot warehouses across 16+ Indian cities. On-site installation and comprehensive operator training included for all production-tier and above variants.
